Emerson EWD2004OM Supplement Service Manual

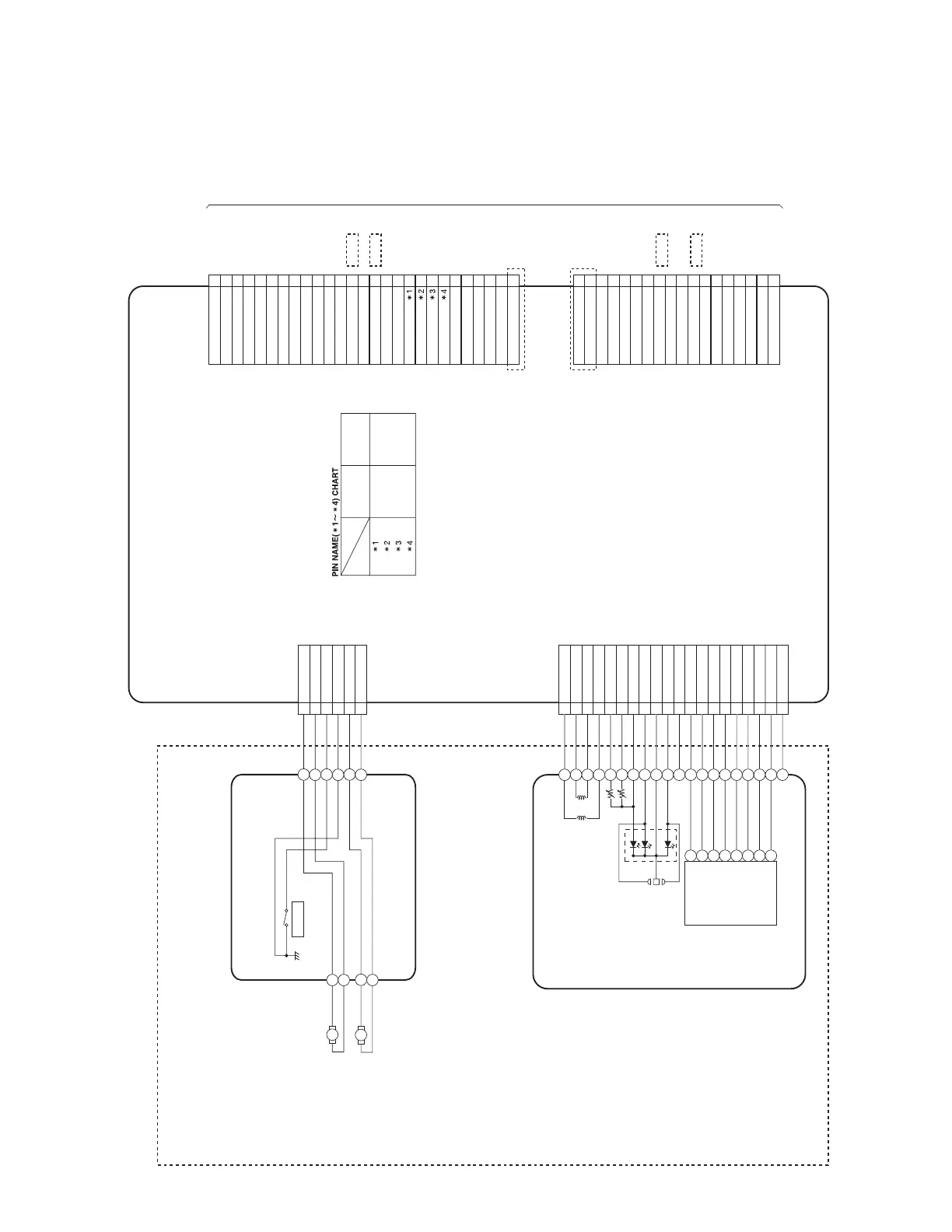

WIRING DIAGRAM < DVD SECTION >
H9600WID
1-12-2
DVD MECHA
DVD MAIN CBA UNIT
TO WIRING DIAGRAM <VCR SECTION>
TO MAIN CBA CN1001
(W001) (W002)
CN301
3 4
TRAY-IN GND SL(-)
5 6
SP(-)
7
SP(+)
8 SL(+)
TRAY-IN
DRIVE CBA
M
SLED MOTOR
M
SPINDLE MOTOR
EV+1.2V
EV+1.2V
EV+3.3V
EV+3.3V
EV+3.3V
P-ON+3.3V
P-ON+5V
EV+11V
EV+11V
GND
1 2 3 4 5 6 7 8 9
10
GND
GND
GND
GND
GND
GND
PWRCON
11 12 13 14 15 16 17 18 19 20
REMOTE
21 22
DVD-POWER
23
DVD-PLAY
DVD-OPEN/CLOSE
24 25
OUTPUT-SELECT
DVD-STOP
26 27
CN401
PICK UP UNIT
CN201
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20
TS(+) TS(-) FS(-) CD-LD FS(+) GND(DVD-PD) GND(CD-PD) PD-MONI DVD-LD VREF E GND B P-ON+5V CD/DVD D A C F GND(LD)
DETECTOR
FSTS
7 9
11
2 3 6 5 4
DVC860E
DVC860E
DVC840E, DVC845E, EWD2204
TO MAIN CBA CN1601
(W004) (W006)
DVC860E, DVC840E
DVC845E, EWD2204
MODEL
DVC860E
DVC840E, DVC845E, EWD2204
MARK
FP-CLK
PIN NAME MAY DIFFER BY MODELS.
FP-DIN FP-STB NU
PLAY SKIP-DOWN DISCIN-L SKIP-UP
GND
VODEO-Pr/Cr
GND
VIDEO-Pb/Cb
VIDEO-Y
GND
VIDEO-C
GND GND
DVD-A-MUTE
4 5 6
I/P-SW
NU
2 3 7 8 9
10 11 12 13
CN601
DVD-A(R)-MUTE
DVD-A(L)
AUDIO+5V
DVD-A(R)
AUDIO+5V
SPDIF
14 15 16 17 18 19
DVC860E, DVC840E
