Emerson FB1100 Termination Board Field Replacement Guide

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
8

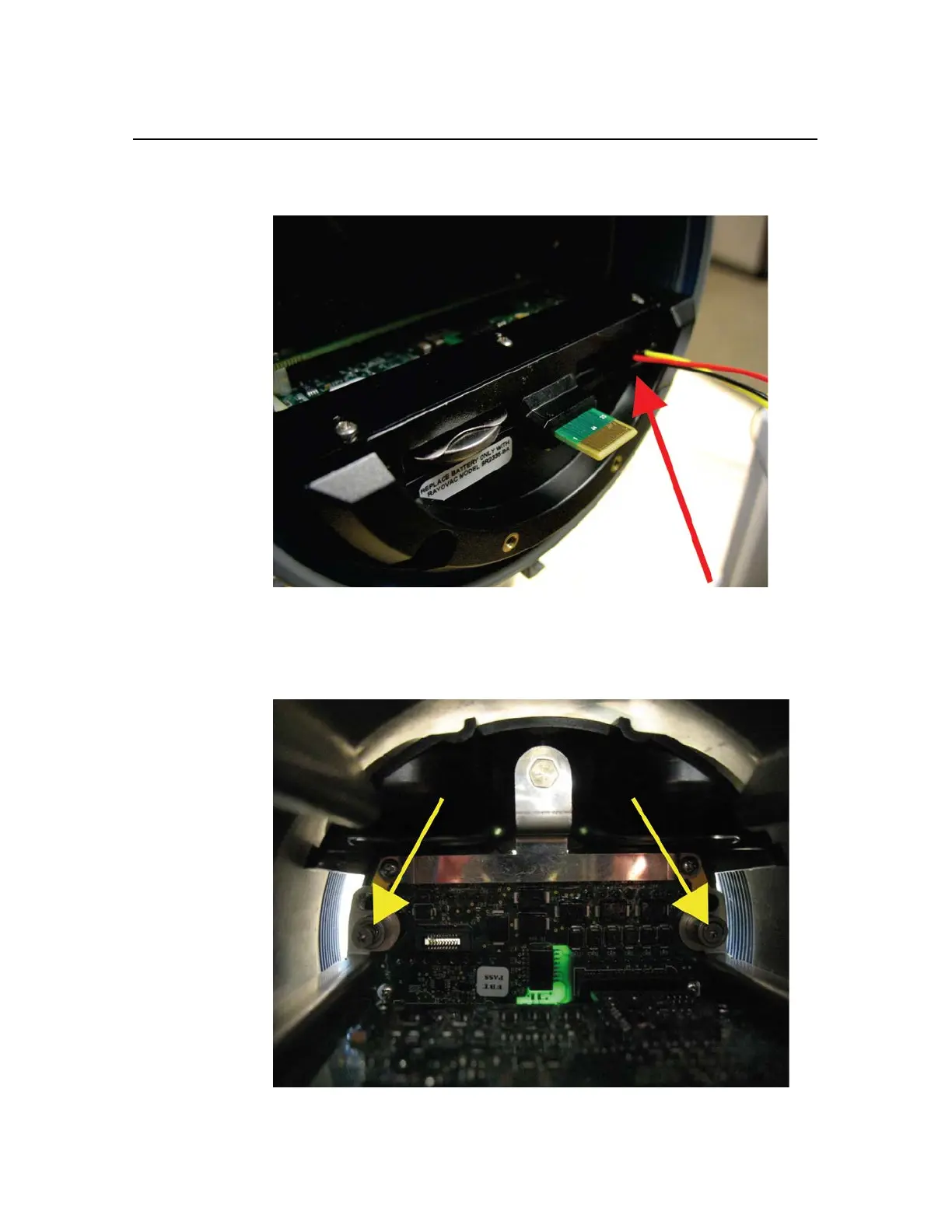

9. If the battery pack enclosure holds an internal battery, disconnect the battery
connector.
10. Set the battery pack enclosure/HMI module assembly aside. You will need it later.
11. Look into the housing from the front. Two captive fastening screws on the inside
of the housing hold the termination board in place.
