1 SEE NOTES IN FIGURE 48
GE42819 Sheet 11, Rev. A
I.S. CLASS I, II, III DIV 1, GROUPS ABCDEFG
N.I. CLASS I, DIV 2, GROUPS ABCD
LOOP TERMINALS
Vmax = 30 VDC
Imax = 130 mA
Ci = 15 nF
Li = 0.55 mH
Pi = 1.0 W
HAZARDOUS LOCATION
POWER MAY BE APPLIED TO
EITHER THE LOOP TERMINALS OR
OUTPUT TERMINALS OR TO BOTH
SETS OF TERMINALS AT THE SAME
TIME
UNITS WITHOUT THE I/O PACKAGE
WILL NOT HAVE “OUTPUT
TERMINALS” AVAILABLE FOR
CONNECTION
1 NOTE 7

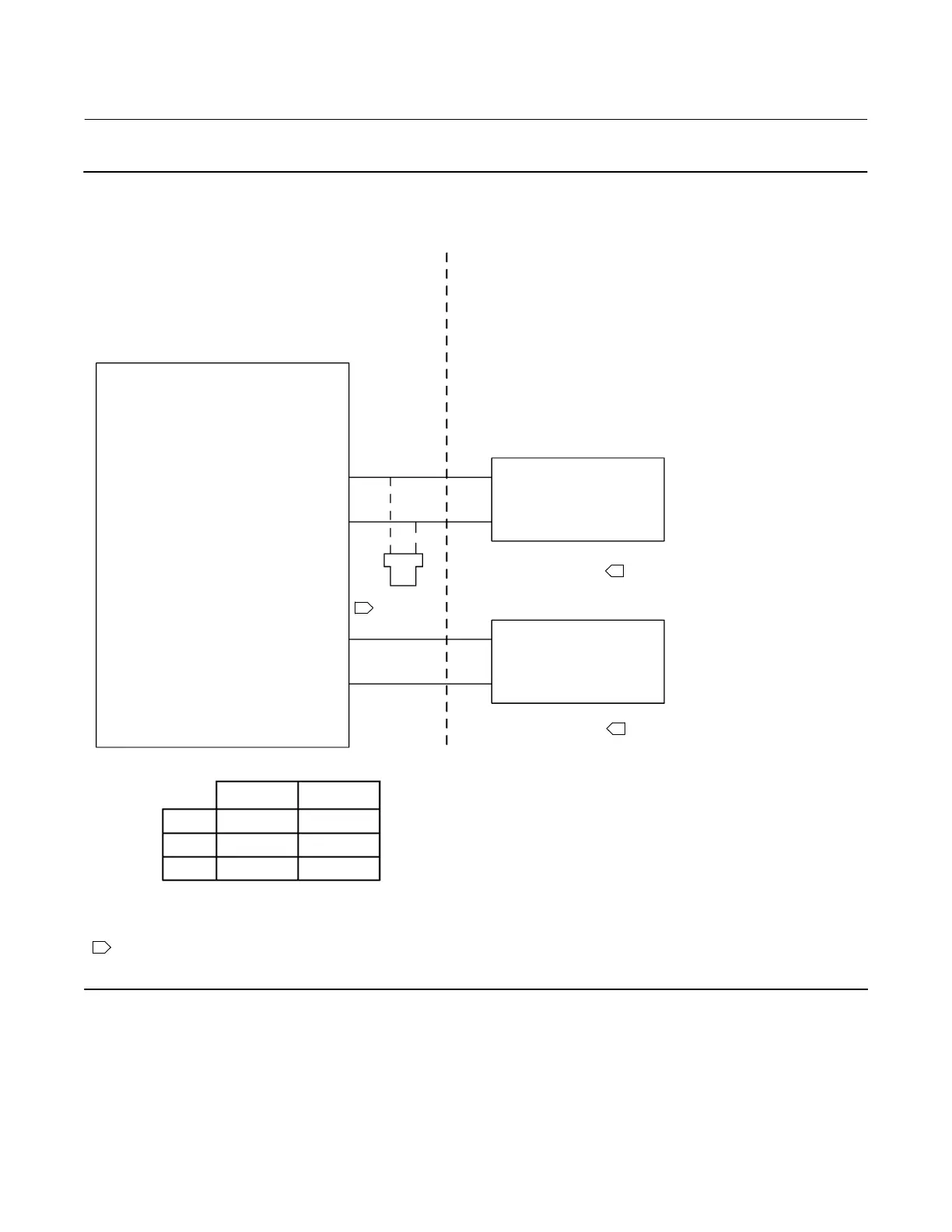

Figure 44. FM Loop Schematics—FIELDVUE DVC6200 HW2 and DVC6200 SIS
T CODE T (amb) T (amb)
T5 ≤ 80_C ≤ 80_C
NON‐HAZARDOUS LOCATION
FM APPROVED BARRIER
HW2 - WITH OR WITHOUT I/O PACKAGE
DVC6200, DVC6200S
NOTE 1, 3, 4, 5, 6 1
T6 ≤ 61_C ≤ 74_C
FM APPROVED BARRIER
NOTE 1, 3, 4, 5, 6 1
OUTPUT TERMINALS
Vmax = 28 VDC
Imax = 100 mA
Ci = 15 nF
Li = 0.5 mH
Pi = 1.0 W
WITH
I/O PACKAGE
WITHOUT
I/O PACKAGE
