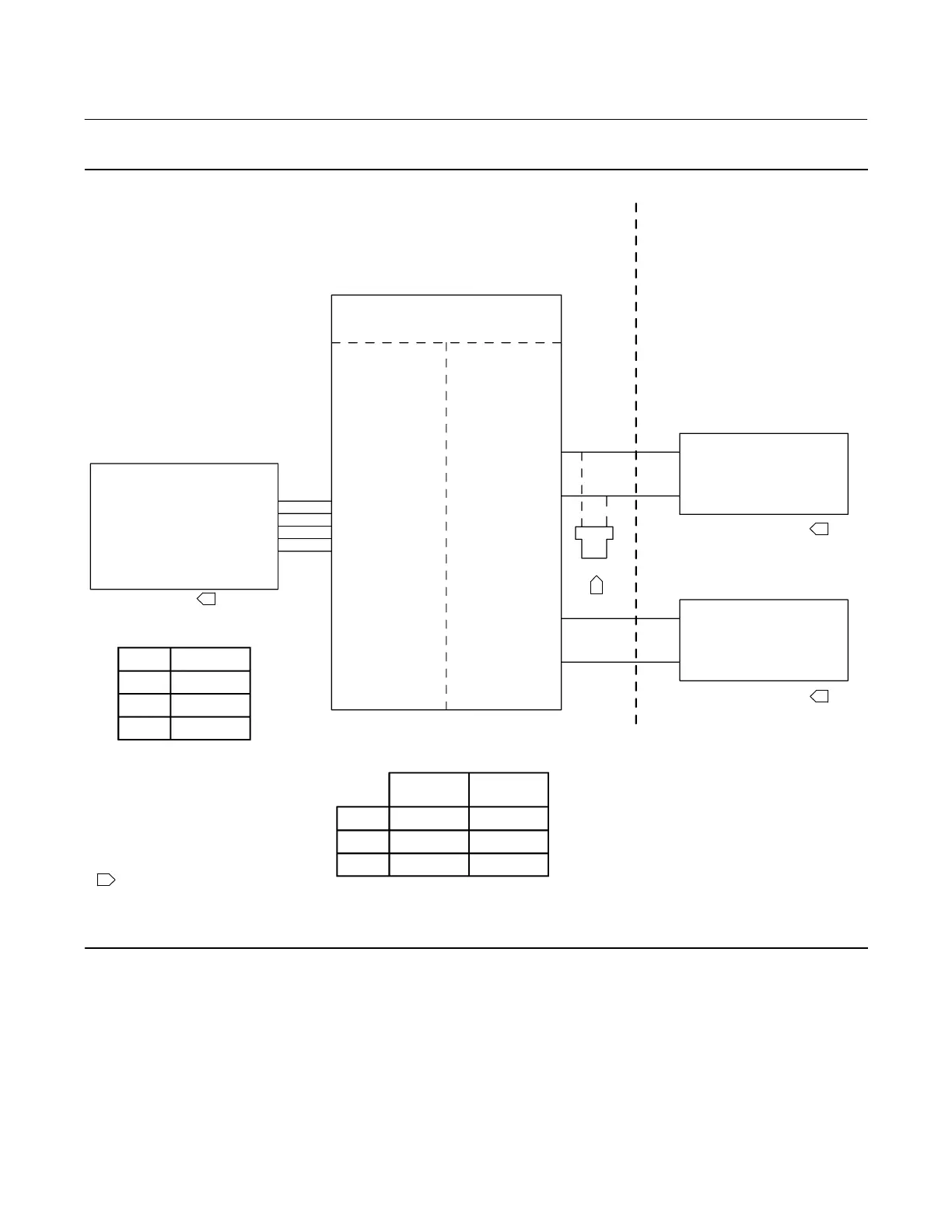

Figure 45. FM Loop Schematics—FIELDVUE DVC6205, DVC6205 SIS, and DVC6215
1 SEE NOTES IN FIGURE 48
GE42819 Sheet 12, Rev. A
REMOTE
FIELD WIRING
TERMINAL BOX
HAZARDOUS LOCATION
POWER MAY BE APPLIED TO EITHER
THE LOOP TERMINALS OR OUTPUT
TERMINALS OR TO BOTH SETS OF
TERMINALS AT THE SAME TIME
UNITS WITHOUT THE I/O PACKAGE
WILL NOT HAVE “OUTPUT TERMINALS”
AVAILABLE FOR CONNECTION
NOTE 7
T CODE T (amb) T (amb)
T5 ≤ 80_C ≤ 80_C
1
NON‐HAZARDOUS LOCATION
FM APPROVED BARRIER
HW2 - WITH OR WITHOUT I/O PACKAGE
DVC6205
NOTE 1, 3, 4, 5, 6 1
T6 ≤ 61_C ≤ 74_C
FM APPROVED BARRIER
NOTE 1, 3, 4, 5, 6 1
DVC6215
Vmax = 30 VDC
Imax = 226 mA
Ci = 50 nF
Li = 0.55 mH
Pi = 1.4 W
WITH
I/O PACKAGE
WITHOUT
I/O PACKAGE
Voc = 30 VDC
Isc = 21.2 mA
Ca = 55 nF
La = 78 mH
Po = 160 mW
LOOP TERMINALS
Vmax = 30 VDC
Imax = 130 mA
Ci = 15 nF
Li = 0.55 mH
Pi = 1.0 W
OUTPUT TERMINALS
Vmax = 28 VDC
Imax = 100 mA
Ci = 15 nF
Li = 0.5 mH
Pi = 1.0 W
FIELD WIRING
TERMINAL BOX
T CODE T (amb)
T5 ≤ 90_C
T6 ≤ 75_C
T4 ≤ 125_C
NOTE 1, 3 1
I.S. CLASS I, II, III DIV 1, GROUPS ABCDEFG
N.I. CLASS I, DIV 2, GROUPS ABCD
I.S. CLASS I, II, III DIV 1, GROUPS ABCDEFG
N.I. CLASS I, DIV 2, GROUPS ABCD
