Emerson Fisher FIELDVUE DVC6200 HW1 User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
August 2015
55
1 SEE NOTES IN FIGURE 48
FM APPROVED
ENTITY DEVICE
HAZARDOUS LOCATION
NON‐HAZARDOUS LOCATION
I.S. CLASS I,II,III DIV 1, GROUPS ABCDEFG
N.I. CLASS I, DIV 2, GROUPS ABCD
DVC6200F, DVC6200FS
DVC6200P, DVC6200PS
FM APPROVED
BARRIER
NON‐HAZARDOUS LOCATION
HAZARDOUS LOCATION
ENTITY FIELDBUS LOOP
I.S. CLASS I,II,III DIV 1,
GROUPS ABCDEFG
FM APPROVED
FISCO BARRIER
FM APPROVED
FISCO TERMINATOR
FM APPROVED
FISCO DEVICE
DVC6200F, DVC6200FS
DVC6200P, DVC6200PS
FISCO LOOP
1 NOTE 1, 3, 4, 5, 6
NOTE 1, 3 1
1 NOTE 7
1 NOTE 2, 3, 4, 5, 6
NOTE 2, 3 1
GE42819 Sheet 4, Rev. D

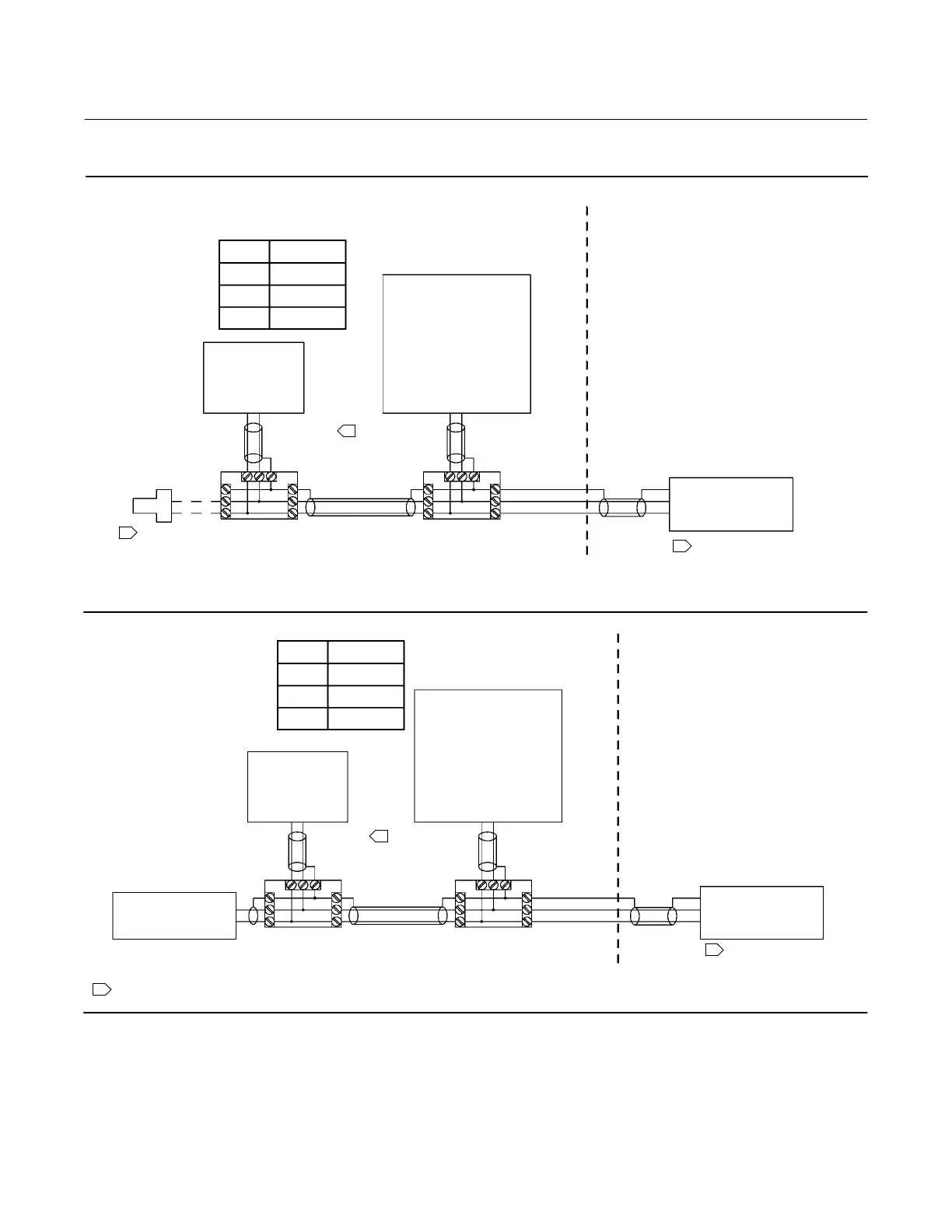

Figure 46. FM Loop Schematics—FIELDVUE DVC6200f and DVC6200p
T CODE T (amb)
T4 ≤ 80_C
T6 ≤ 62_C
T5 ≤ 77_C
T CODE T (amb)
T4 ≤ 80_C
T6 ≤ 62_C
T5 ≤ 77_C
GE42819 Sheet 3, Rev. D
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
