Emerson Fisher FIELDVUE DVC6200 Series User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
July 2017
31

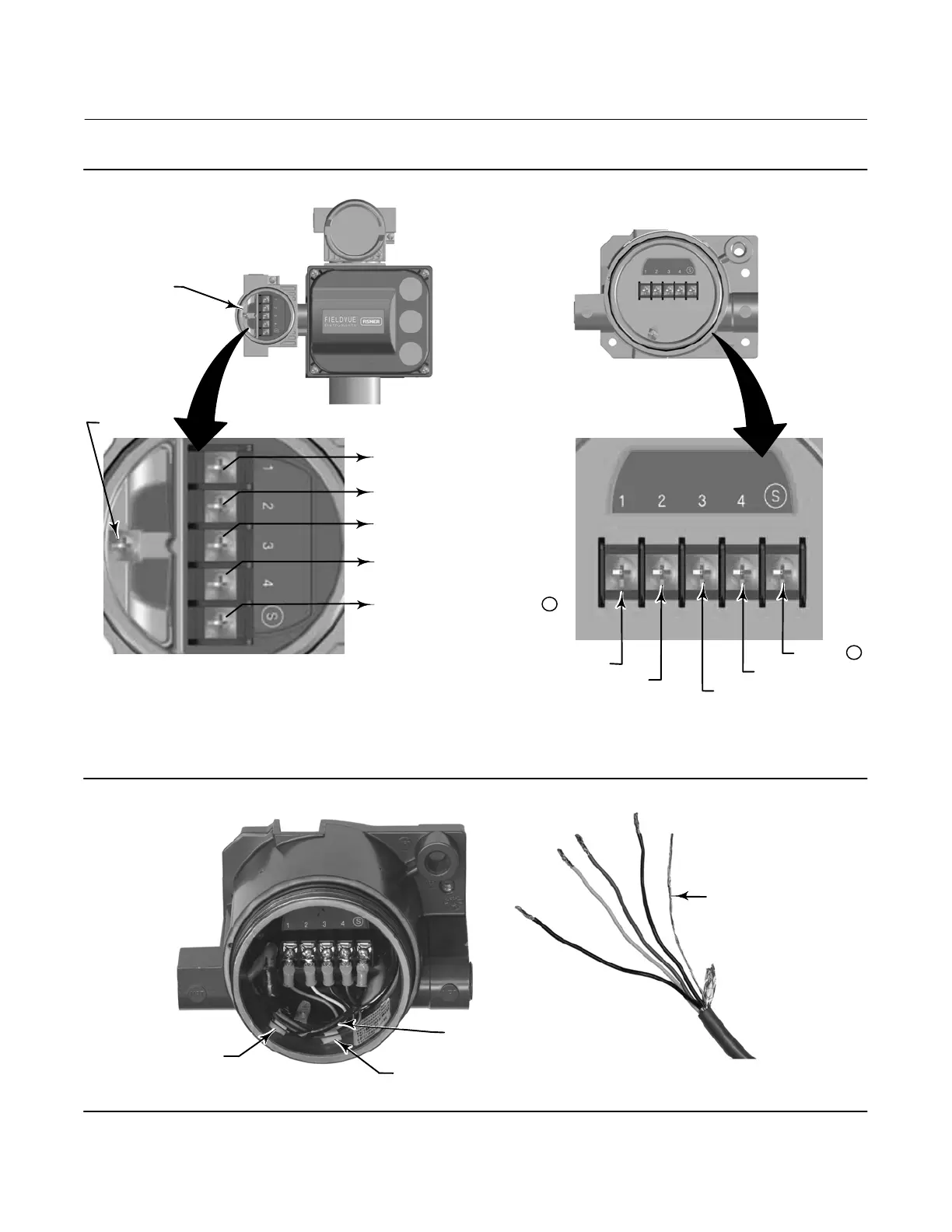

Figure 24. Terminal Details for Connecting the Base Unit and Feedback Unit for Remote‐Mounted Digital Valve
Controllers
FEEDBACK CONNECTIONS
TERMINAL BOX
FEEDBACK UNIT
TO FEEDBACK UNIT TERMINAL 1
TO FEEDBACK UNIT TERMINAL 2
TO FEEDBACK UNIT TERMINAL 3
GROUND
SCREW
TERMINAL 1
TERMINAL 3
TERMINAL 2
X0131
BASE UNIT
FEEDBACK UNIT
FEEDBACK
CONNECTIONS
TERMINAL BOX
TO FEEDBACK UNIT TERMINAL 4
TERMINAL 4
TO FEEDBACK UNIT TERMINAL S
USING CABLE SHIELD
TERMINAL S
X0132
Figure 25. Wire Clips
CLIP TO SUPPORT THE
4-CONDUCTOR WIRES
CLIP TO
SUPPORT THE
INSULATED SHIELD WIRE
CABLE SHIELD
INSULATED WITH
ELECTRICAL TAPE
4-CONDUCTOR WIRES WITH SHIELD
EXPOSED CABLE SHIELDING
- REQUIRES INSULATION
(e.g. WITH SHRINK TUBING
OR ELECTRICAL TAPE)
X0435
X0434

Emerson Fisher FIELDVUE DVC6200 Series Specifications

General

Manufacturer	Emerson
Series	FIELDVUE DVC6200
Type	Digital Valve Controller
Communication Protocol	HART
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Material	Aluminum, Stainless Steel
Hazardous Area Certifications	ATEX, IECEx, FM, CSA
Input Signal	4-20 mA, HART
Power Supply	Loop-powered
Supply Pressure	1.4 to 6.0 bar
Certifications	SIL3 capable
Diagnostics	Advanced Valve Diagnostics
