Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
August 2015
22
Note
The Natural Gas Certified, Single Seal device option simplifies conduit sealing requirements. Natural Gas Certified, Single Seal
instruments can be identified by the natural gas approval label shown in figure 18. Read and follow all local, regional, and federal
wiring requirements for natural gas installations. Contact your Emerson Process Management sales office
for information on
obtaining a Natural Gas Certified, Single Seal DVC6200 digital valve controller.

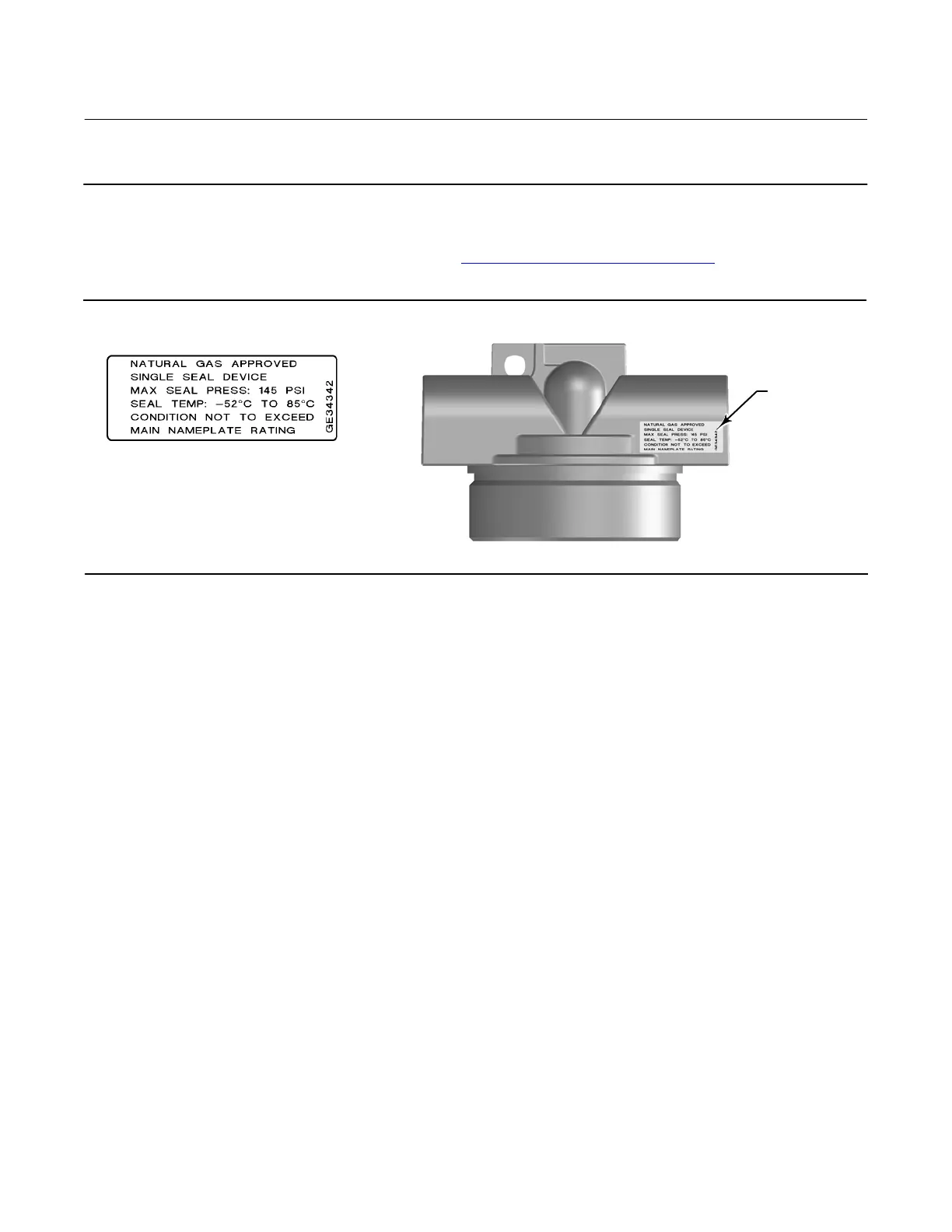

Figure 18. Label for Natural Gas Certified Terminal Box
LABEL LOCATED
ON TOP OF
TERMINAL BOX
X0748
4. Connect the pneumatic supply line to the 1/4 NPT IN connection on the filter regulator.
5. Proceed to Step 3—Connect the Electrical Wires on page 23.
