Emerson Fisher FIELDVUE DVC6215 User Manual

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
August 2015
52
FM APPROVED BARRIER
1 NOTE 1, 3, 4, 5, 6
1 NOTE 7
I.S. CLASS I,II,III, DIV 1, GROUPS ABCDEFG
N.I. CLASS I, DIV 2, GROUPS ABCD
DVC6200, DVC6200S
NON‐HAZARDOUS LOCATION
HAZARDOUS LOCATION

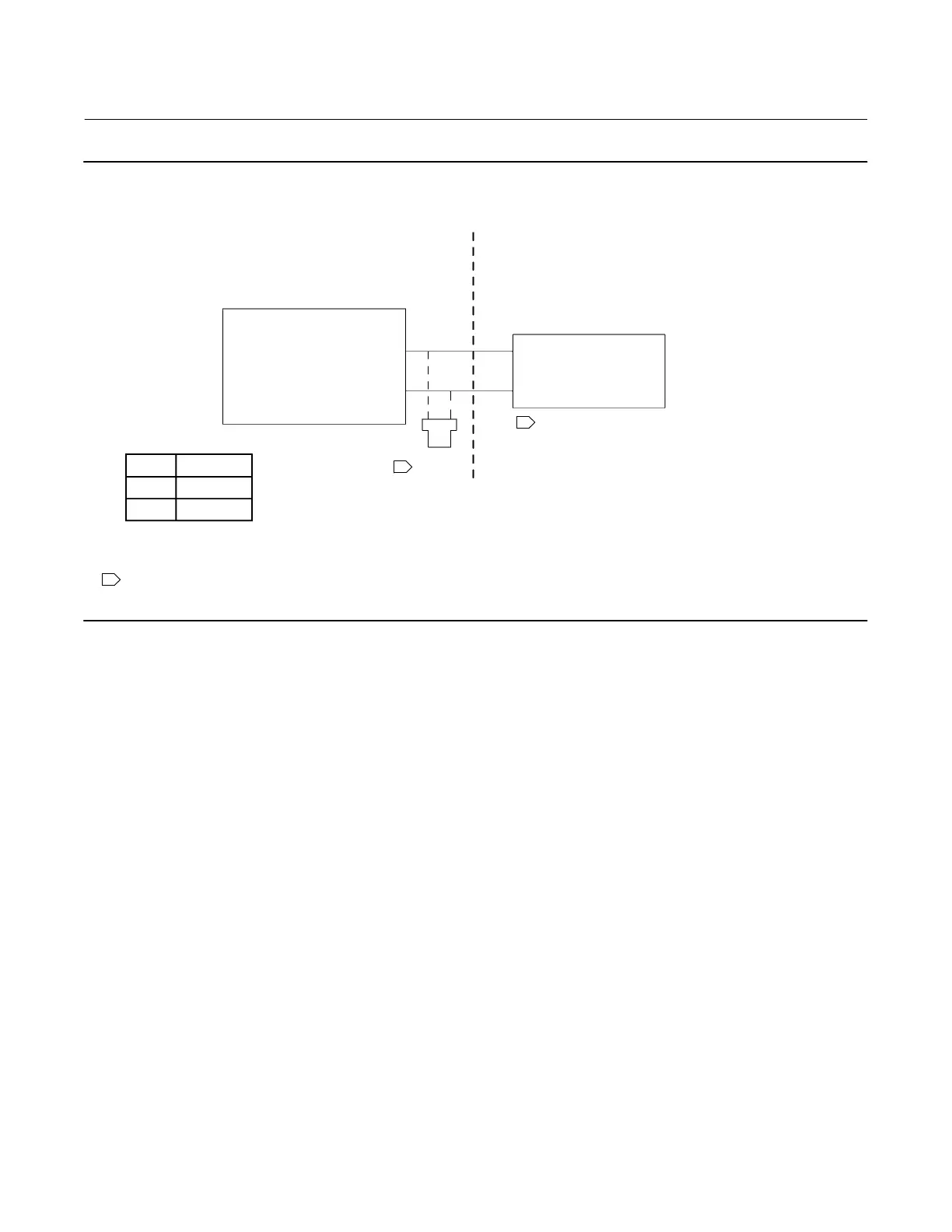

Figure 43. FM Loop Schematic—FIELDVUE DVC6200 HW1
GE42819 sheet 2, Rev. D
1 SEE NOTES IN FIGURE 48
T6 ≤ 75_C
T5 ≤ 80_C
T CODE T (amb)
Vmax = 30 VDC
Imax = 226 mA
Ci = 5 nF
Li = 0.55 mH
Pi = 1.4 W
