2.3 FXMP25 features and options

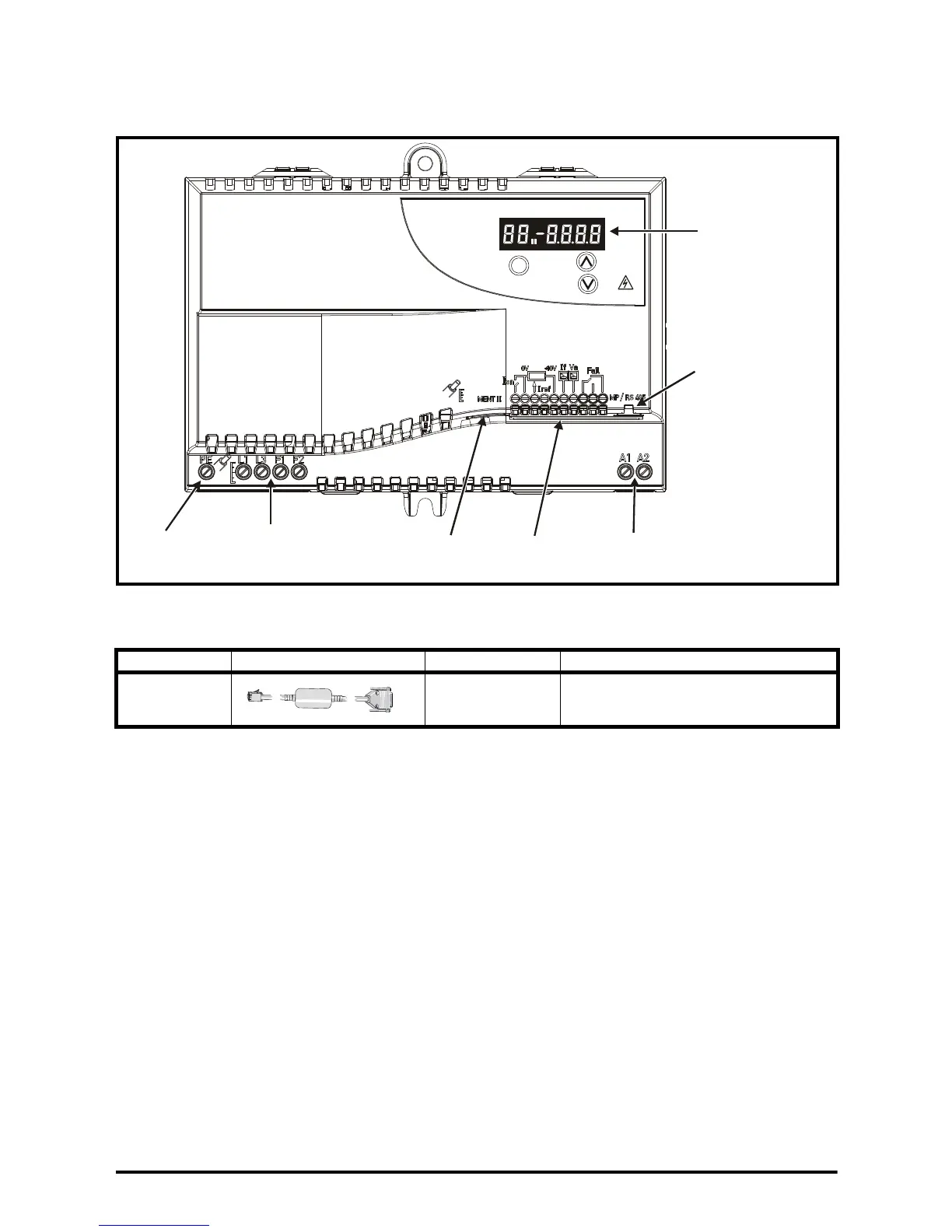

Figure 2-2 FXMP25 features
2.3.1 Options available for FXMP25
Table 2-1 Options
See also section 4.8 Serial communications on page 25 for information regarding serial
communications.
FXMP25
M
STORED CHARGE
10 min
Mode /Reset
Display
Mentor MP/
serial port connector
Armature voltage
feedback
connections
Control
terminals
Mentor II
connector
AC supply
and field output
connections
Ground
connection
Type Cable Name Further Details
Serial comms
lead
CT Comms cable
CT EIA (RS) -232 (4500-0087)
CT USB (4500-0096)

Emerson FXMP25 Specifications

General

Brand	Emerson
Model	FXMP25
Category	Controller
Language	English
