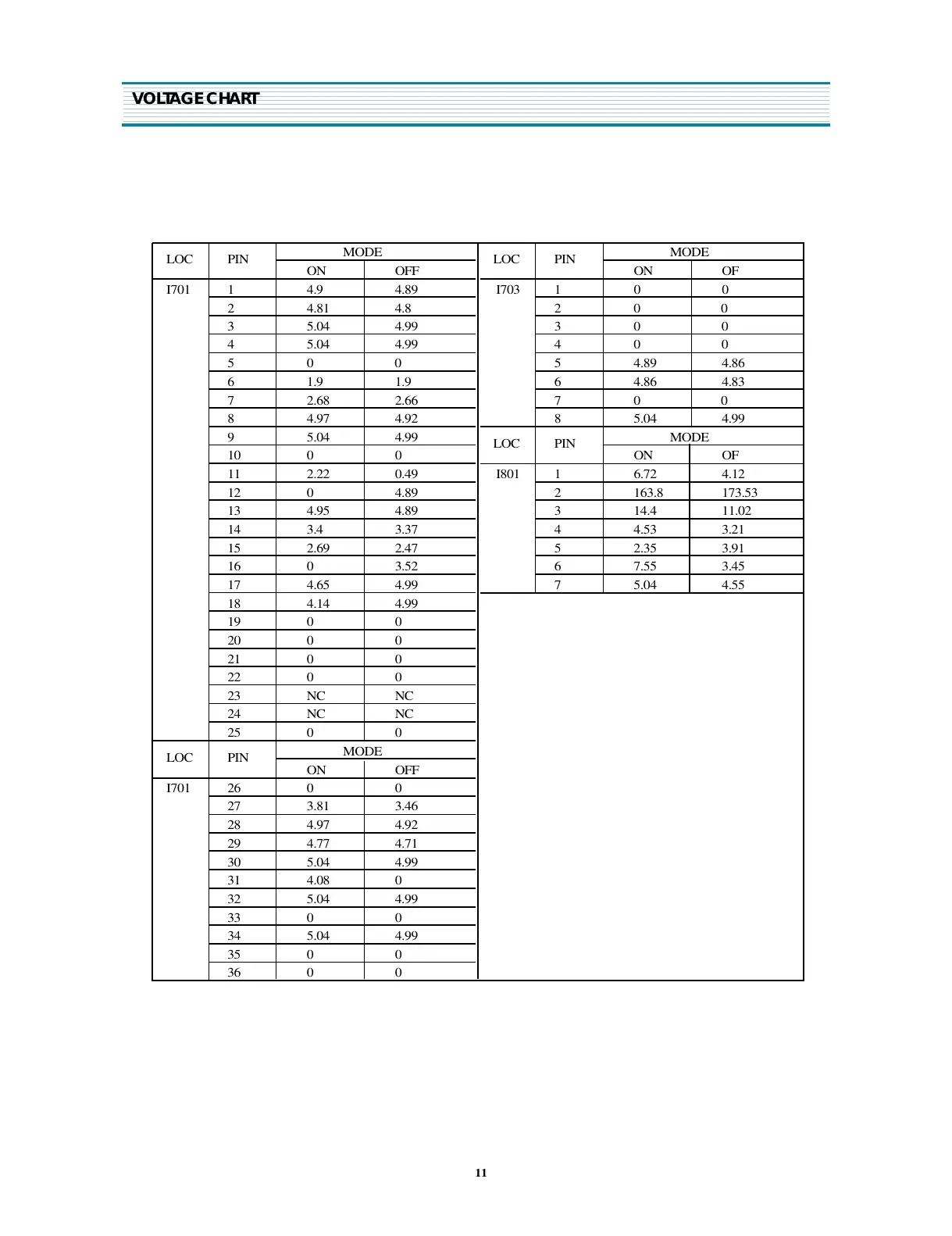

VOLTAGE CHART
MODE
LOC PIN
ON OFF
I701 1 4.9 4.89
2 4.81 4.8
3 5.04 4.99
4 5.04 4.99
5 0 0
6 1.9 1.9
7 2.68 2.66
8 4.97 4.92
9 5.04 4.99
10 0 0
11 2.22 0.49
12 0 4.89
13 4.95 4.89
14 3.4 3.37
15 2.69 2.47
16 0 3.52
17 4.65 4.99
18 4.14 4.99
19 0 0
20 0 0
21 0 0
22 0 0
23 NC NC
24 NC NC
25 0 0
MODE
LOC PIN
ON OFF
I701 26 0 0
27 3.81 3.46
28 4.97 4.92
29 4.77 4.71
30 5.04 4.99
31 4.08 0
32 5.04 4.99
33 0 0
34 5.04 4.99
35 0 0
36 0 0
MODE
LOC PIN
ON OF
I703 1 0 0
2 0 0
3 0 0
4 0 0
5 4.89 4.86
6 4.86 4.83
7 0 0
8 5.04 4.99
MODE
LOC PIN
ON OF
I801 1 6.72 4.12
2 163.8 173.53
3 14.4 11.02
4 4.53 3.21
5 2.35 3.91
6 7.55 3.45
7 5.04 4.55
