LOC PART NUMBER PART NAME DESCRIPTION REMARK LOC PART NUMBER PART NAME DESCRIPTION REMARK
ZZ100 48B4343A06 TRANSMITTER REMOCON R-43A06 (AA) 40 2291050301 FLUX SOLVENT IM-1000
ZZ110 PTACPWH552 ACCESSORY AS HKTV13(DTQ-14V6NK) 50 2291140501 WAX COVER
00010 4850A02510 ANT ROD S3BW216B (L=600 MM) 80 2TP07545CL TAPE OPP 45X50 CLEAR
00040 4850A00250 TRANS ANT MATCHING IMT-06 100 2291130215 GREASE SILICON G-600
10000 48586001E2 MANUAL INSTRUCTION HKTV13(DTQ-14V6NK) C403 CCYB2H103K C CERA 500V B 0.01MF K
M821 4858213800 BAG INSTRUCTION L.D.P.E T0.05X250X400 C404 CMYH3C722H C MYLAR 1.6KV BUP 7200PF H
ZZ120 PTBCSHH552 COVER BACK AS HKTV13(DTQ-14V6NK) C406 CMYE2D434J C MYLAR 200V PU 0.43MF J
M211 4852157740 COVER BACK FR HIPS PK C801 CL1UC3104M C LINE ACROSS WORLD AC250V 0.1UF M R.47
M781 4857817611 CLOTH BLACK FELT 200X20X0.7 C802 CMYH3C332J C MYLAR 1.6KV BUP 3300PF J
ZZ130 PTPKCPH504 PACKING AS HKTV13(DTQ-14V6**) C804 CEYN2D331P C ELECTRO 200V LHS 330MF
!
10 6520010100 STAPLE PIN AUTO W65 C881 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V
!
M801 485803871D BOX CARTON SW-2 C882 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V
!
M811 4858195400 PAD EPS D703 DLH2PR---- LED BLOCK LH-2P-R
M821 4858215700 BAG PE PE FOAM t0.5x1000X950 D801 DPBS208GUF DIODE BRIDGE PBS208GU-CA (FORMING)
!
ZZ131 58G0000078 COIL DEGAUSSING DC-1400
!
F801 5F1GB4021L FUSE GLASS TUBE UL/CSA TL 4A 125V MF51
ZZ132 48519A4710 CRT GROUND NET 1401S-1015-1P I101 1DCT814B-- IC CHROMA DCT814B
ZZ140 PTCACAH552 CABINET AS HKTV13(DTQ-14V6NK) I301 PTC2SW7101 HEAT SINK ASS`Y 1LA7841--- + 7174300811
CRT1 PTRTPWH394 CRT AS NTSC 14" ITC CRT AS I301 1LA7841--- IC VERTICAL LA7841
V01 58D0000082 COIL DY ODY-M1489
!
I301A 4857027101 HEAT SINK SPCC T1.0+SN
V02 2233030001 PAINT LOCK 760G I301B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN
V03 2TC18019BE TAPE CLOTH T0.18XW19X50M BEIGE I401 1K1A7805P1 IC REGULATOR KIA7805API
V04 2224050026 BOND SILICON RTV 122 CARTRIDGE I601 1TDA7267-- IC AUDIO AMP TDA7267
V05 4850PM001- MAGNET CP NY-225 (MINI NECK) I701 1DW8634PA1 IC MICOM DW863440V-PA1(5Y56)
V06 48A96R004- RUBBER WEDGE HMR 28 SR (|0X54) I703 124LC04B-- IC MEMORY 24LC04B
V901 48A96314C3 CRT BARE A34KQV42X
!
I801 1MA8630--- IC POWER MA8630
!
M201A 4856013300 SCREW CRT FIXING 30X80 BK I802 1LTV817C-- IC PHOTO COUPLER LTV-817C
!
M201B 4856215402 WASHER RUBBER CR T2.0 I803 1DP133---- IC ERROR AMP DP133
M201C 4856013301 SCREW CRT FIXING 30X140 YL IL701 1SRV21M--- IC PREAMP SRV-21M
M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK JP02 4859109950 JACK PIN BOARD PH-JB-9710A
M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK JP03 4859109150 JACK PIN BOARD PH-JB-9615C
M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV) L111 58C5580019 COIL CHOKE TRF-9225 (0.55UH)
M681 4856812001 TIE CABLE NYLON66 DA100 L501 58N0000042 COIL VCO TRF-V008
SP01A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN L801 5PLF24A1-- FILTER LINE LF-24A1
!
ZZ200 PTFMSJH552 MASK FRONT AS HKTV13(DTQ-14V6NK) M352 4853535500 HOLDER CORD NYROLN 66
M191 4851941300 BUTTON CTRL 4947700+5542501 M681 4856812001 TIE CABLE NYLON66 DA100
M201 4852075960 MASK FRONT FR HIPS PK 14V6 P401 4859240020 CONN WAFER YFW500-05
M321 4853214800 BRKT FR HIPS BK PWC1 4859907910 CORD POWER AS ME301P+TER=1830
!
M351 4853535300 HOLDER BRKT FR HIPS BK Q402 TKSC5386-- TR KSC5386
ZZ202 PTSPPWH407 SPEAKER AS HKTV13(DTQ-14** common) R801 RX07B229JP R CEMENT 7W 2.2 OHM J BEN 15MM 4P
PA601 4850703S50 CONNECTOR YH025-03+35098+ULW=200 R881 DEC7R0M140 POSISTOR ECPAC7R0M140
!
SP01 4858314010 SPEAKER SP-5070F01 3W 8 OHM RLY1 5SC0101338 SW RELAY DQ5D1-O(M)/GJ-SS-105LM
!
ZZ290 PTMPMSH552 PCB MAIN MANUAL AS HKTV13(DTQ-14V6NK) RS801 DSVC471D14 VARISTOR SVC471D14A
!
10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320 SF101 5PTSF5241P FILTER SAW TSF5241P
20 2193011101 SOLDER WIRE RS 60-1.2 1.6A T401 50D10A3--- TRANS DRIVE TD-10A3
30 2291050616 FLUX SOLDER JS-64T3 T402 50H0000210 FBT LTC-509
!
18

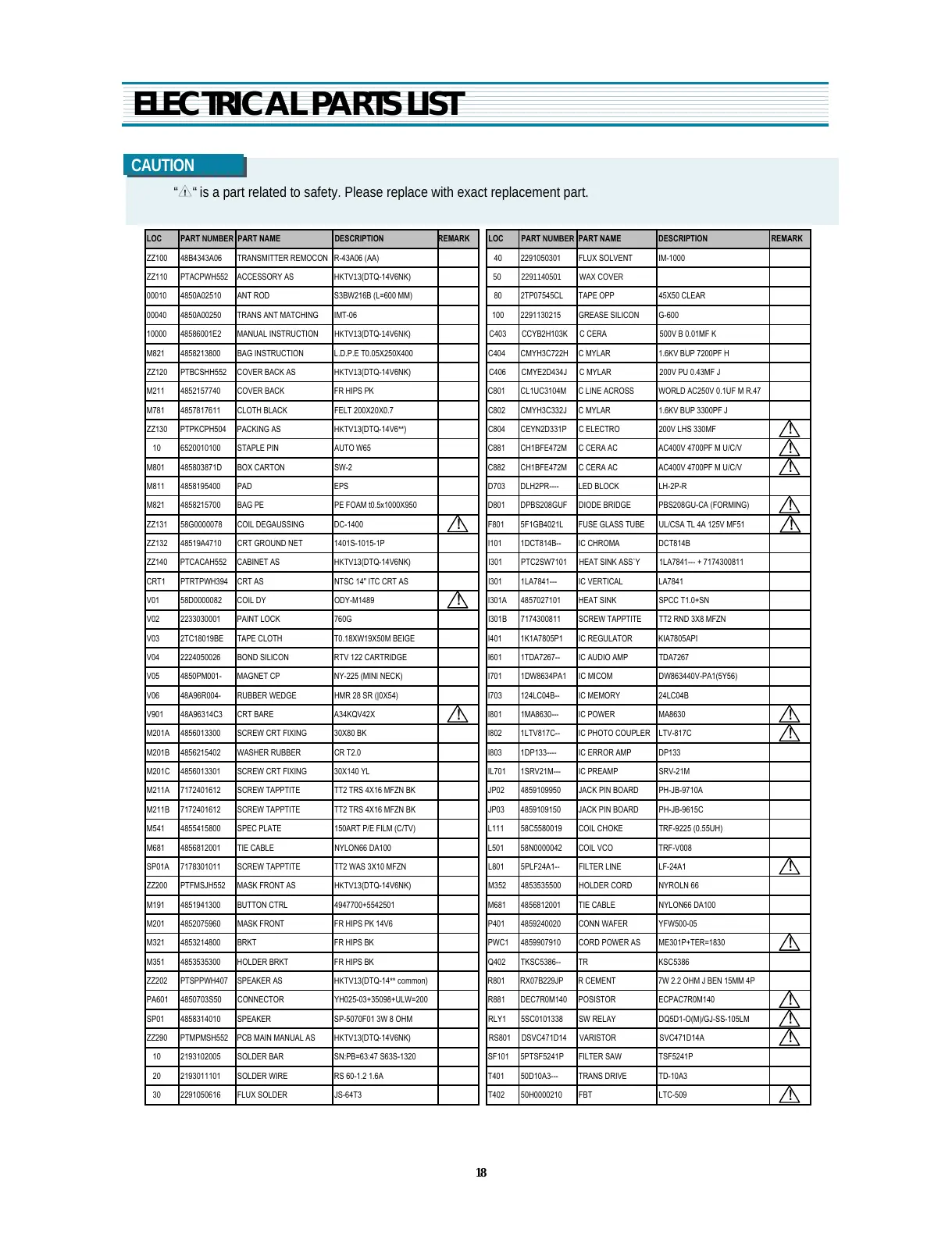

ELECTRICAL PARTS LIST
“
I
“ is a part related to safety. Please replace with exact replacement part.
CAUTION
!
