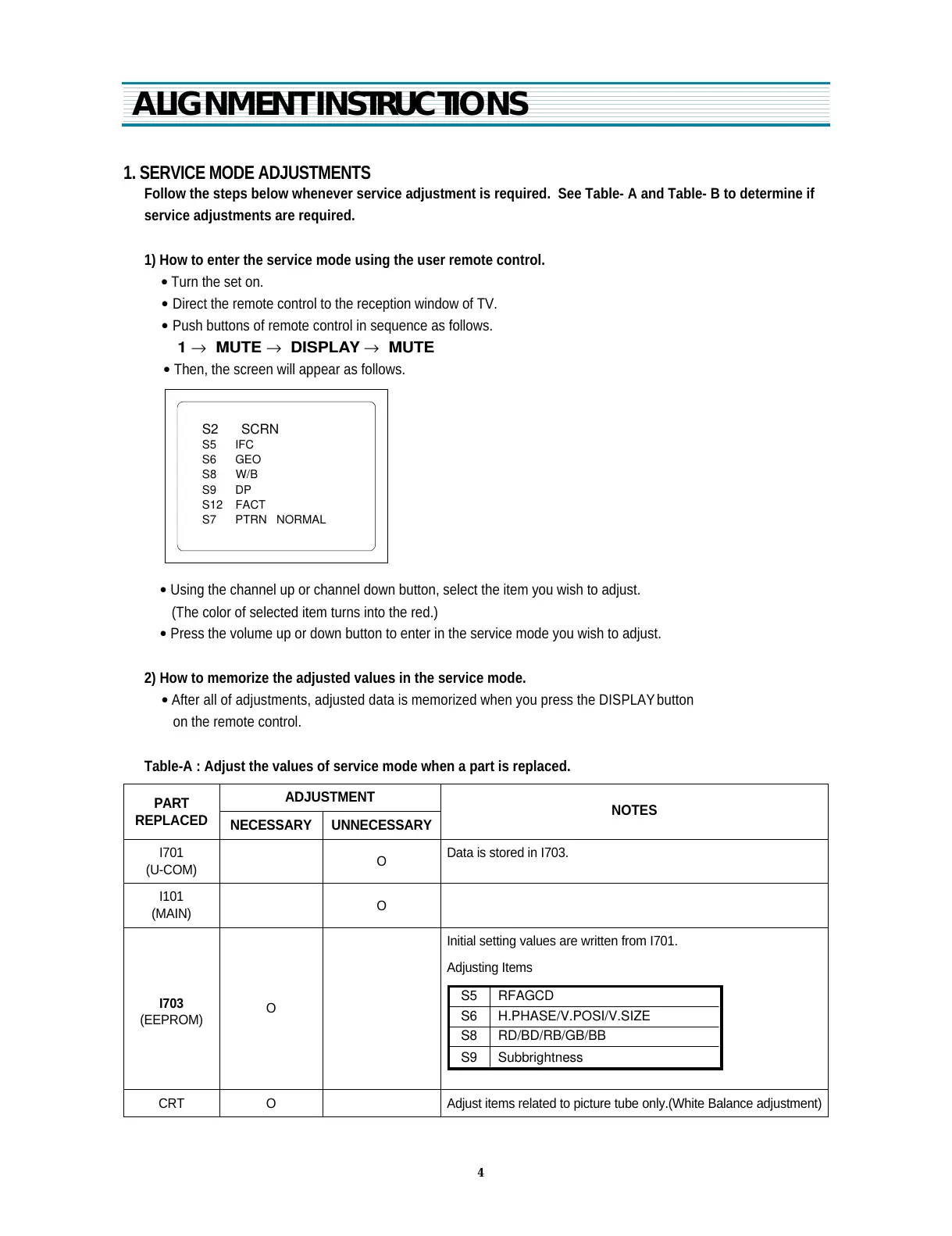

ALIGNMENT INSTRUCTIONS
1. SERVICE MODE ADJUSTMENTS
Follow the steps below whenever service adjustment is required. See Table- A and Table- B to determine if
service adjustments are required.
1) How to enter the service mode using the user remote control.
•
Turn the set on.
•
Direct the remote control to the reception window of TV.
•
Push buttons of remote control in sequence as follows.
1
→
MUTE
→
DISPLAY
→
MUTE
•
Then, the screen will appear as follows.
•
Using the channel up or channel down button, select the item you wish to adjust.
(The color of selected item turns into the red.)
•
Press the volume up or down button to enter in the service mode you wish to adjust.
2) How to memorize the adjusted values in the service mode.
•
After all of adjustments, adjusted data is memorized when you press the DISPLAY button
on the remote control.
Table-A : Adjust the values of service mode when a part is replaced.
PART
REPLACED
ADJUSTMENT
NOTES
NECESSARY UNNECESSARY
I701
(U-COM)
O
Data is stored in I703.
I101
(MAIN)
O
I703
(EEPROM)
O
Initial setting values are written from I701.
Adjusting Items
CRT O Adjust items related to picture tube only.(White Balance adjustment)
S2 SCRN
S5 IFC
S6 GEO
S8 W/B
S9 DP
S12 FACT
S7 PTRN NORMAL
S5 RFAGCD
S6 H.PHASE/V.POSI/V.SIZE
S8 RD/BD/RB/GB/BB
S9 Subbrightness
