Emerson HKTV13 - Exploded View

17

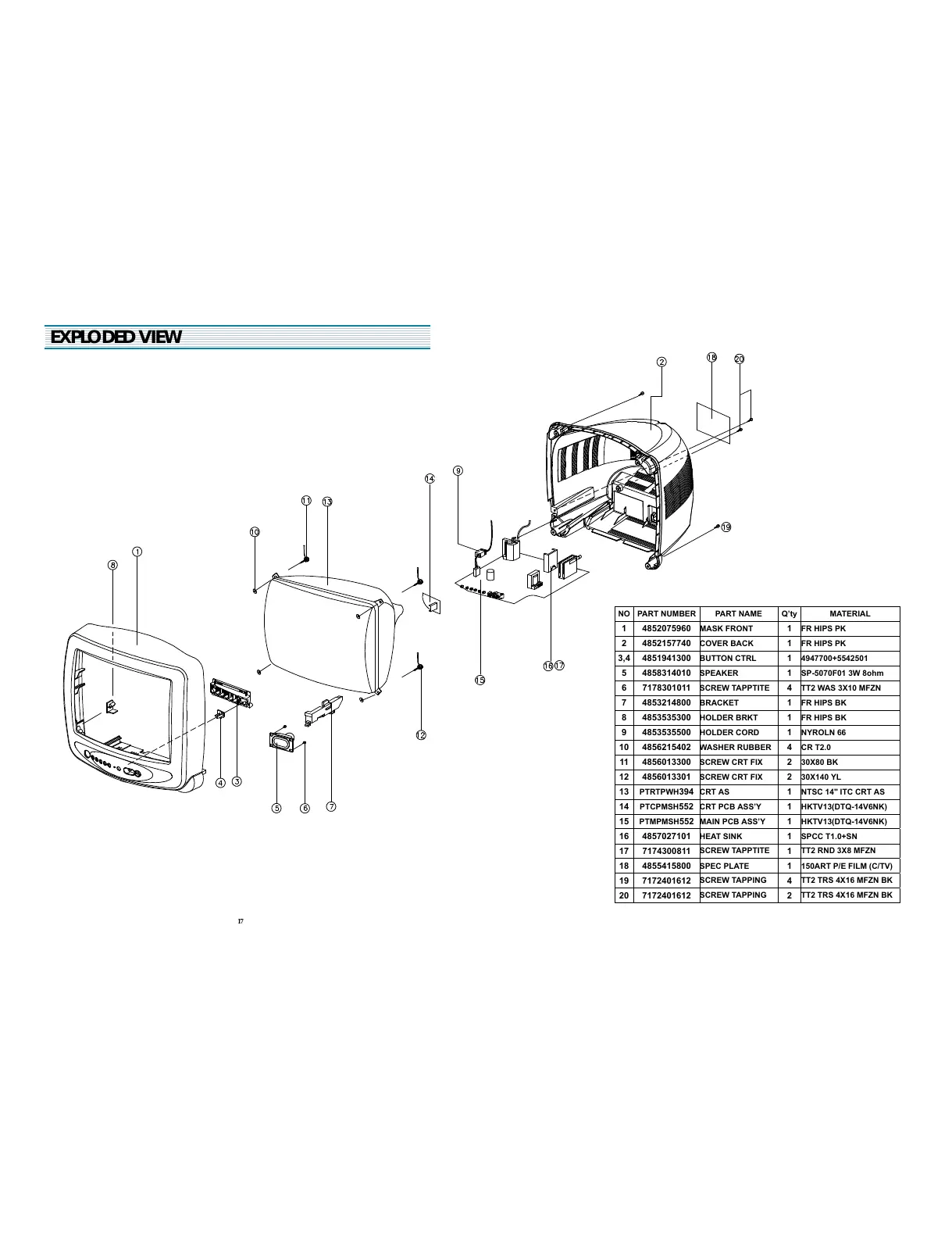

EXPLODED VIEW
NO PART NUMBER PART NAME Q’ty MATERIAL
1 4852075960
MASK FRONT
1
FR HIPS PK
2 4852157740
COVER BACK
1
FR HIPS PK
3,4 4851941300
BUTTON CTRL
1
4947700+5542501
5 4858314010
SPEAKER
1
SP-5070F01 3W 8ohm
6 7178301011
SCREW TAPPTITE
4
TT2 WAS 3X10 MFZN
7 4853214800
BRACKET
1
FR HIPS BK
8 4853535300
HOLDER BRKT
1
FR HIPS BK
9 4853535500
HOLDER CORD
1
NYROLN 66
10 4856215402
WASHER RUBBER
4
CR T2.0
11 4856013300
SCREW CRT FIX
2
30X80 BK
12 4856013301
SCREW CRT FIX
2
30X140 YL
13 PTRTPWH394
CRT AS
1
NTSC 14" ITC CRT AS
14
PTCPMSH
552
CRT PCB ASS’Y
1
HKTV13(DTQ-14V6NK)
15 PTMPMSH552
MAIN PCB ASS’Y
1
HKTV13(DTQ-14V6NK)
16 4857027101
HEAT SINK
1
SPCC T1.0+SN
17 7174300811
SCREW TAPPTITE
1
TT2 RND 3X8 MFZN
18 4855415800
SPEC PLATE
1
150ART P/E FILM (C/TV)
19 7172401612
SCREW TAPPING
4
TT2 TRS 4X16 MFZN BK
20 7172401612
SCREW TAPPING
2
TT2 TRS 4X16 MFZN BK
