Emerson HKTV13 - Voltage Chart

10

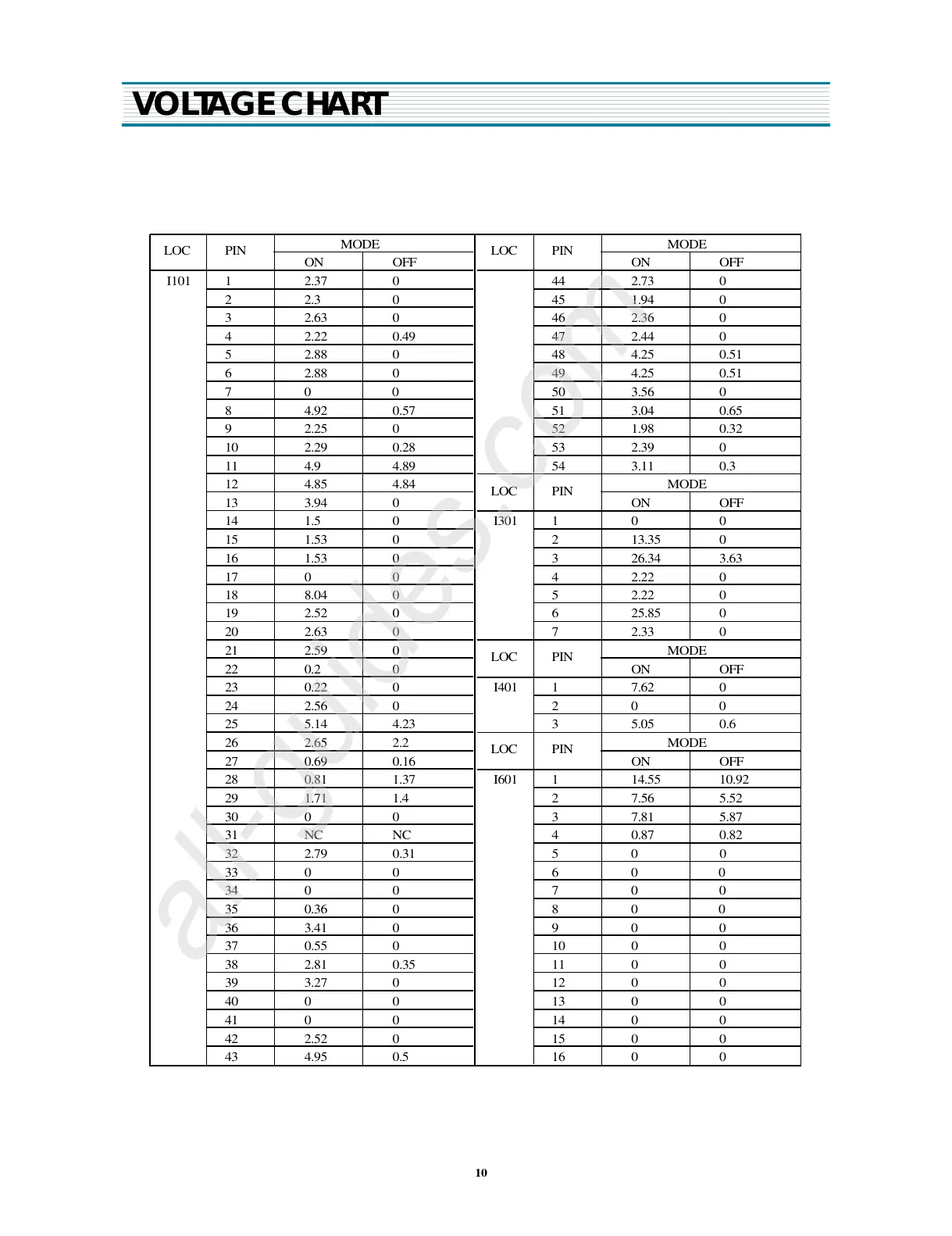

VOLTAGE CHART
MODE
LOC PIN
ON OFF
I101 1 2.37 0
2 2.3 0
3 2.63 0
4 2.22 0.49
5 2.88 0
6 2.88 0
7 0 0
8 4.92 0.57
9 2.25 0
10 2.29 0.28
11 4.9 4.89
12 4.85 4.84
13 3.94 0
14 1.5 0
15 1.53 0
16 1.53 0
17 0 0
18 8.04 0
19 2.52 0
20 2.63 0
21 2.59 0
22 0.2 0
23 0.22 0
24 2.56 0
25 5.14 4.23
26 2.65 2.2
27 0.69 0.16
28 0.81 1.37
29 1.71 1.4
30 0 0
31 NC NC
32 2.79 0.31
33 0 0
34 0 0
35 0.36 0
36 3.41 0
37 0.55 0
38 2.81 0.35
39 3.27 0
40 0 0
41 0 0
42 2.52 0
43 4.95 0.5
MODE
LOC PIN
ON OFF
44 2.73 0
45 1.94 0
46 2.36 0
47 2.44 0
48 4.25 0.51
49 4.25 0.51
50 3.56 0
51 3.04 0.65
52 1.98 0.32
53 2.39 0
54 3.11 0.3
MODE
LOC PIN
ON OFF
I301 1 0 0
2 13.35 0
3 26.34 3.63
4 2.22 0
5 2.22 0
6 25.85 0
7 2.33 0
MODE
LOC PIN
ON OFF
I401 1 7.62 0
2 0 0
3 5.05 0.6
MODE
LOC PIN
ON OFF
I601 1 14.55 10.92
2 7.56 5.52
3 7.81 5.87
4 0.87 0.82
5 0 0
6 0 0
7 0 0
8 0 0
9 0 0
10 0 0
11 0 0
12 0 0
13 0 0
14 0 0
15 0 0
16 0 0
