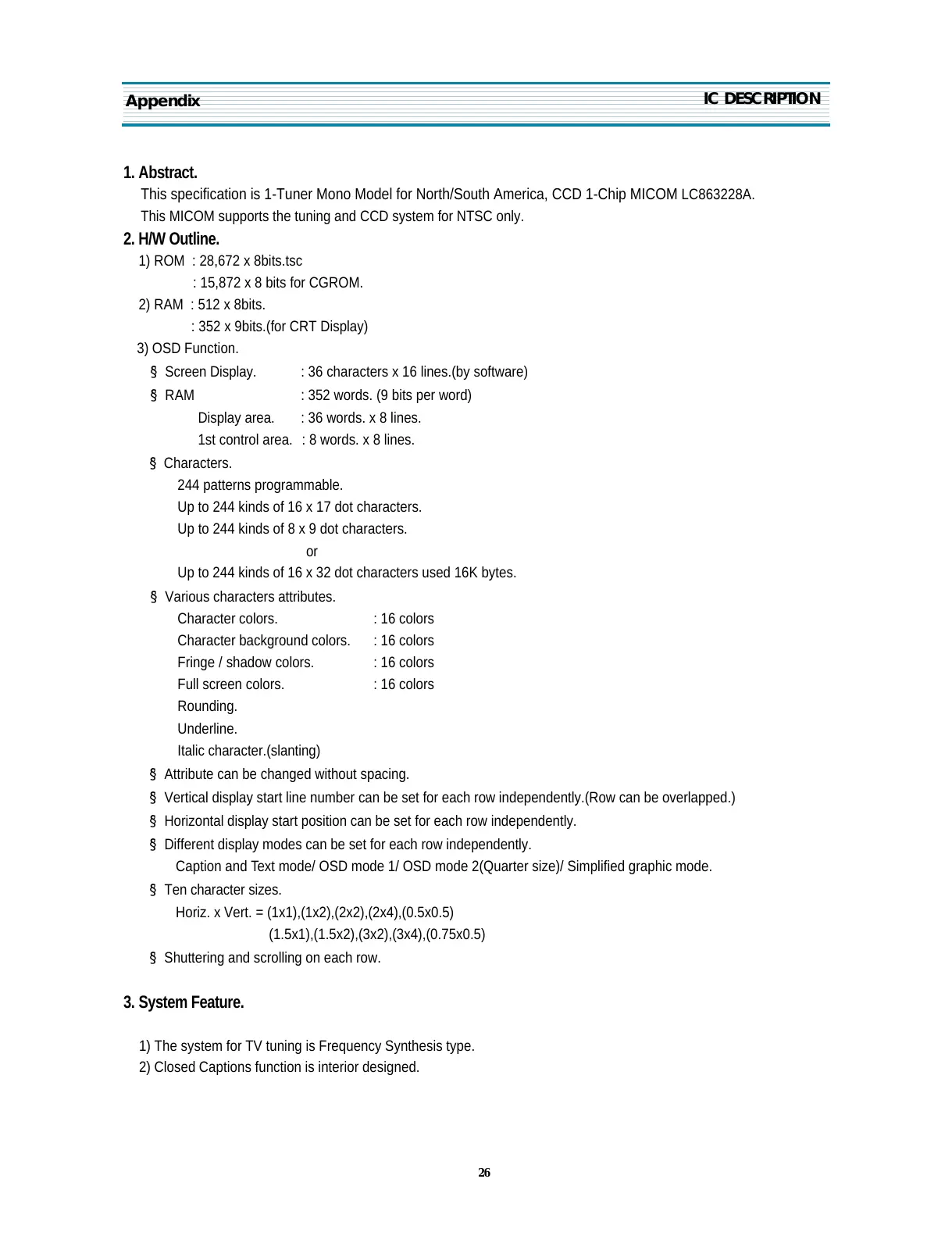

IC DESCRIPTION
1. Abstract.
This specification is 1-Tuner Mono Model for North/South America, CCD 1-Chip MICOM LC863228A.
This MICOM supports the tuning and CCD system for NTSC only.
2. H/W Outline.
1) ROM : 28,672 x 8bits.tsc
: 15,872 x 8 bits for CGROM.
2) RAM : 512 x 8bits.
: 352 x 9bits.(for CRT Display)
3) OSD Function.
¡¤
Screen Display. : 36 characters x 16 lines.(by software)
¡¤
RAM : 352 words. (9 bits per word)
Display area. : 36 words. x 8 lines.
1st control area. : 8 words. x 8 lines.
¡¤
Characters.
244 patterns programmable.
Up to 244 kinds of 16 x 17 dot characters.
Up to 244 kinds of 8 x 9 dot characters.
or
Up to 244 kinds of 16 x 32 dot characters used 16K bytes.
¡¤
Various characters attributes.
Character colors. : 16 colors
Character background colors. : 16 colors
Fringe / shadow colors. : 16 colors
Full screen colors. : 16 colors
Rounding.
Underline.
Italic character.(slanting)
¡¤
Attribute can be changed without spacing.
¡¤
Vertical display start line number can be set for each row independently.(Row can be overlapped.)
¡¤
Horizontal display start position can be set for each row independently.
¡¤
Different display modes can be set for each row independently.
Caption and Text mode/ OSD mode 1/ OSD mode 2(Quarter size)/ Simplified graphic mode.
¡¤
Ten character sizes.
Horiz. x Vert. = (1x1),(1x2),(2x2),(2x4),(0.5x0.5)
(1.5x1),(1.5x2),(3x2),(3x4),(0.75x0.5)
¡¤
Shuttering and scrolling on each row.
3. System Feature.
1) The system for TV tuning is Frequency Synthesis type.
2) Closed Captions function is interior designed.
