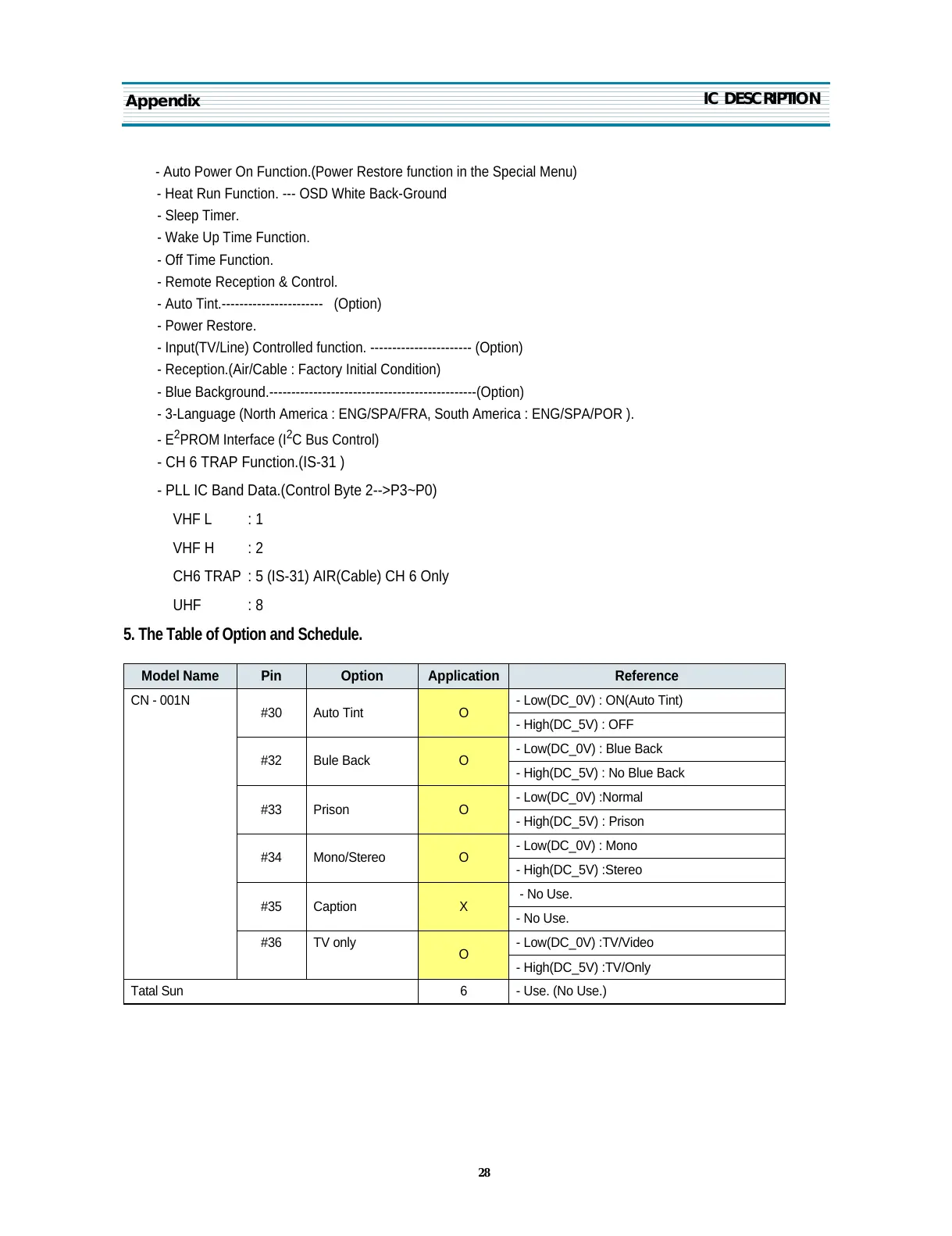

IC DESCRIPTION
- Auto Power On Function.(Power Restore function in the Special Menu)
- Heat Run Function. --- OSD White Back-Ground
- Sleep Timer.
- Wake Up Time Function.
- Off Time Function.
- Remote Reception & Control.
- Auto Tint.----------------------- (Option)
- Power Restore.
- Input(TV/Line) Controlled function. ----------------------- (Option)
- Reception.(Air/Cable : Factory Initial Condition)
- Blue Background.-----------------------------------------------(Option)
- 3-Language (North America : ENG/SPA/FRA, South America : ENG/SPA/POR ).
- E
2
PROM Interface (I
2
C Bus Control)
- CH 6 TRAP Function.(IS-31 )
- PLL IC Band Data.(Control Byte 2-->P3~P0)
VHF L : 1
VHF H : 2
CH6 TRAP : 5 (IS-31) AIR(Cable) CH 6 Only
UHF : 8
5. The Table of Option and Schedule.
Model Name Pin Option Application Reference
CN - 001N
#30 Auto Tint O
- Low(DC_0V) : ON(Auto Tint)
- High(DC_5V) : OFF
#32 Bule Back O
- Low(DC_0V) : Blue Back
- High(DC_5V) : No Blue Back
#33 Prison O
- Low(DC_0V) :Normal
- High(DC_5V) : Prison
#34 Mono/Stereo O
- Low(DC_0V) : Mono
- High(DC_5V) :Stereo
#35 Caption X
- No Use.
- No Use.
#36 TV only
O
- Low(DC_0V) :TV/Video
- High(DC_5V) :TV/Only
Tatal Sun 6 - Use. (No Use.)
