Emerson Keystone

5
DN50 - 125
DN150 - 300
DN250 - 300
DN150 - 200
DN350 - 800

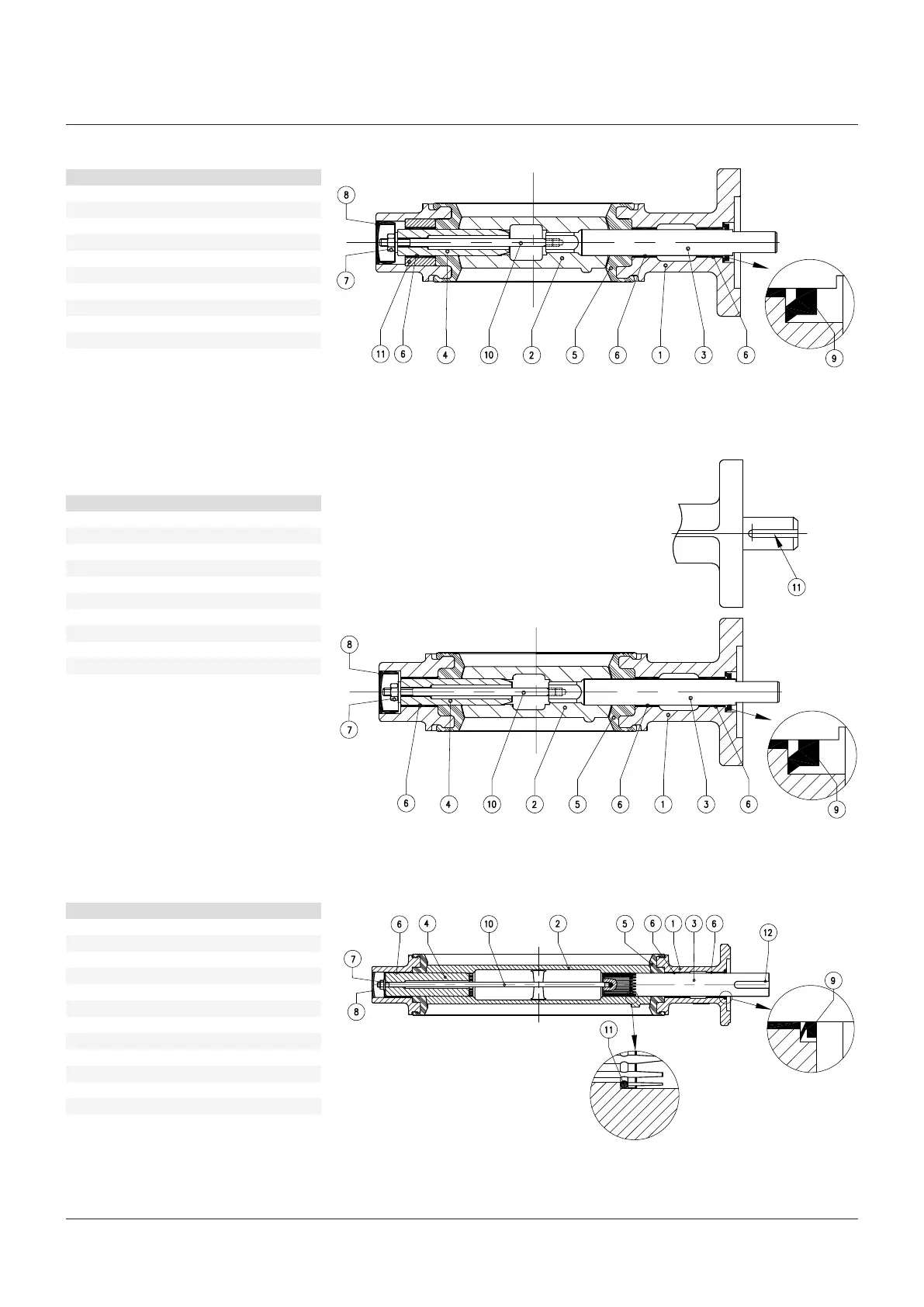

PARTS LIST
Part Name
1 Body
2 Disc
3 Driving (top) shaft
4 Bottom shaft
5 Seat
6 Bearing
7 Nut + spring washer
8 Plug
9 Seal
10 Thru bolt
11 Snap ring
12 Key
PARTS LIST
Part Name
1 Body
2 Disc
3 Driving (top) shaft
4 Bottom shaft
5 Seat
6 Bearing
7 Nut + spring washer
8 Plug
9 Seal
10 Thru bolt
11 Bushing
PARTS LIST
Part Name
1 Body
2 Disc
3 Driving (top) shaft
4 Bottom shaft
5 Seat
6 Bearing
7 Nut + spring washer
8 Plug
9 Seal
10 Thru bolt
11 Key
KEYSTONE BUTTERFLY VALVES PARASEAL
InstallatIon and maIntenance InstructIons
