Emerson LC195EM9 B Service Manual

WAVEFORMS
A8AN4WF9-1

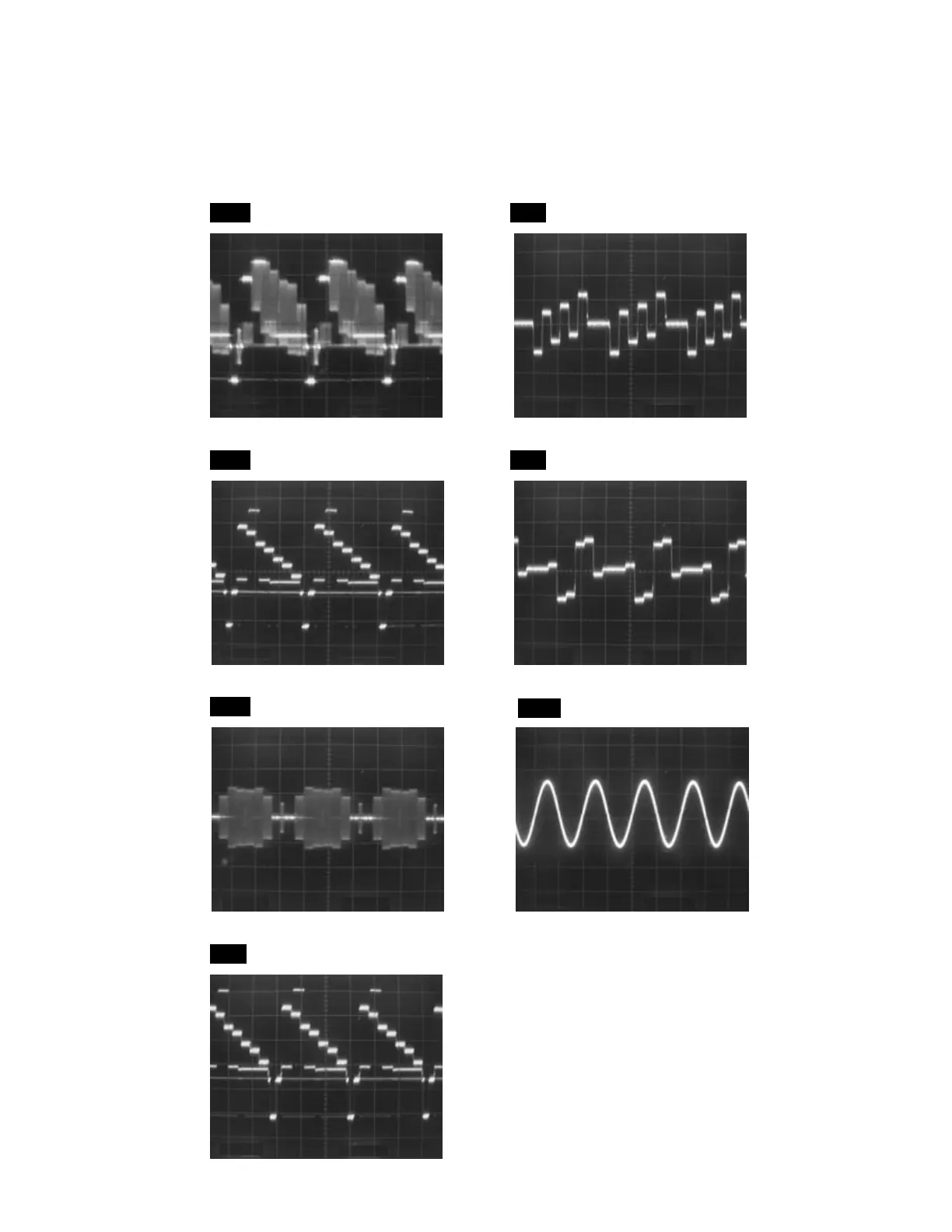

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)
WF1 ~ WF7 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
VIDEO 0.2V 20 µ s
WF1
Pin 23 of CN302
S-VIDEO-Y 0.2V
WF2
Pin 19 of CN302
20 µ s
S-VIDEO-C 0.2V
WF3
Pin 21 of CN302
20 µ s
AUDIO 1V 0.5ms
WF7
Pin 3 of CN303
COMP-Pr 0.2V 20 µ s
Pin 17 of CN302
WF6
COMP-Pb 0.2V 20 µ s
Pin 16 of CN302
WF5
COMP-Y 0.2V 20 µ s
Pin 14 of CN302
WF4
