Installation Drawings
34

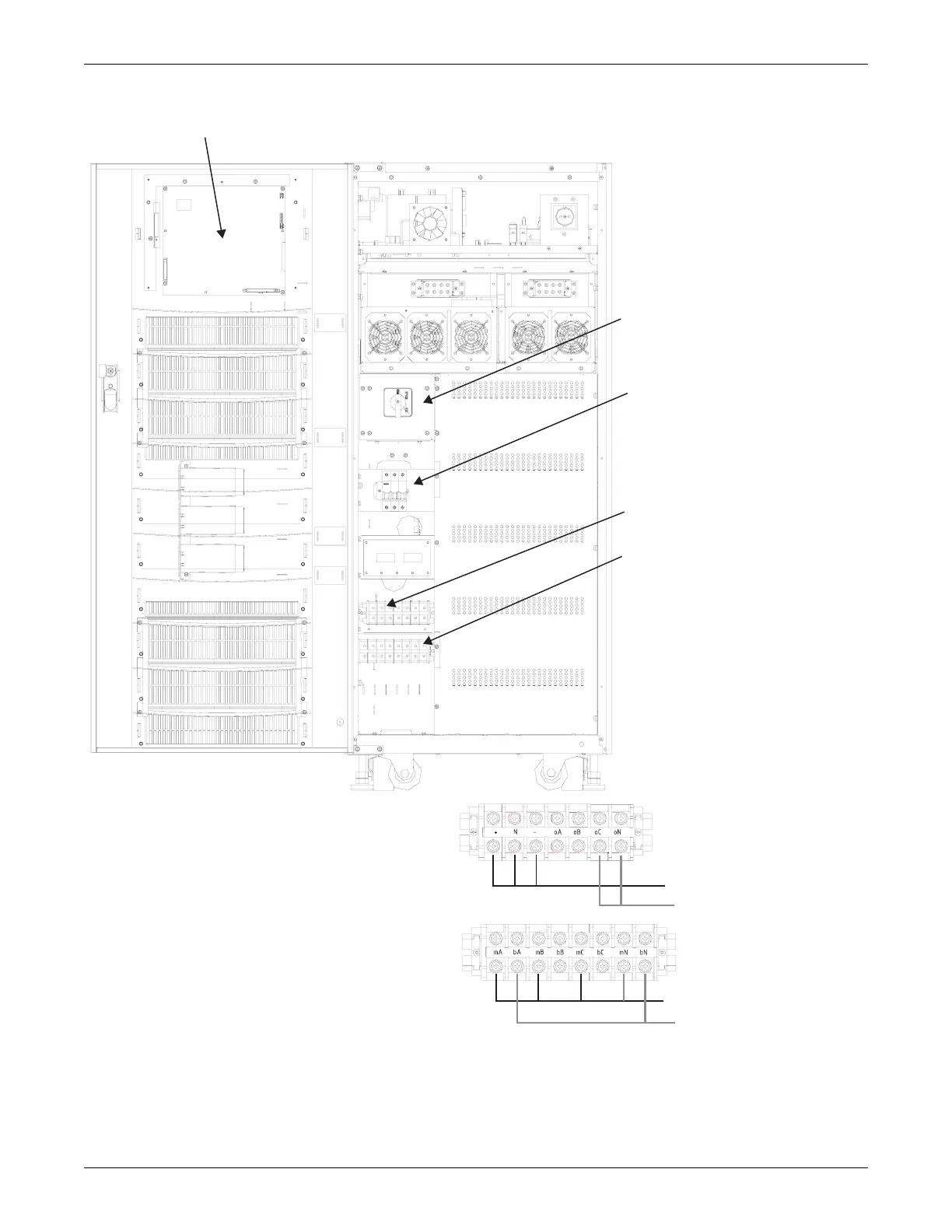

Figure 23 10-20kVA NX front view with doors open
1
2
3
4
5
External Battery Input
Bypass Input
Main Input
Output
T1
T2
1) Main/Bypass Input terminal (T1)
2) Battery /Output terminal (T2)
3) Input circuit breaker (CB1)
4) Rotary switch (SW1)
5) Monitor board (U2)
Wire range for terminal blocks:
15/20kVA, 14-30mm
2
10kVA, 8-16mm
2
