Model IFT9701 Transmitter Instruction Manual 3
Before You Begin continued
Getting Started Power Supply and Output WiringMounting the Remote TransmitterBefore You Begin

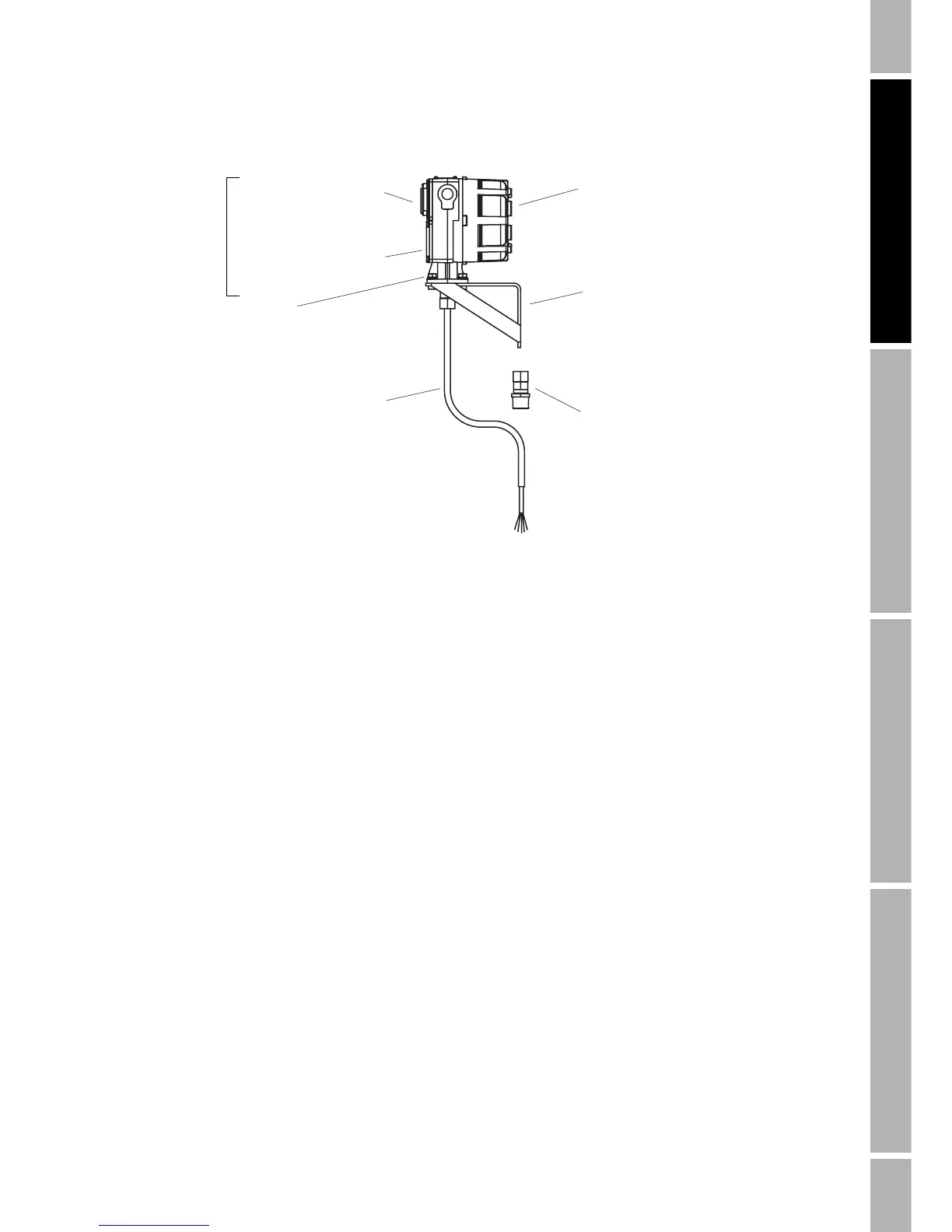

Figure 1-2 Remotely mounted IFT9701 transmitter
Model
IFT9701
transmitter
Field wiring
compartment
With optional LCD
Sensor wiring
compartment
4X M8 mounting bolt
•4X lock washer
• 4X flat washer
To rotate transmitter: remove,
then re-install to 12 ft-lb (16 Nm)
torque
Sensor cable
For minimum bend radius of cable,
see Figure 3-4, 3-5, or 3-6
If conduit is used, install drip
leg in conduit
Circuit board compartment
User access not
normally required
Mounting bracket
Requires 4 user-supplied bolts
Cable gland
• To assemble, see instructions
shipped with cable kit
• Connects to sensor junction box
To Next Page
