12 Model IFT9701 Transmitter Instruction Manual
Remotely Mounting the Transmitter continued

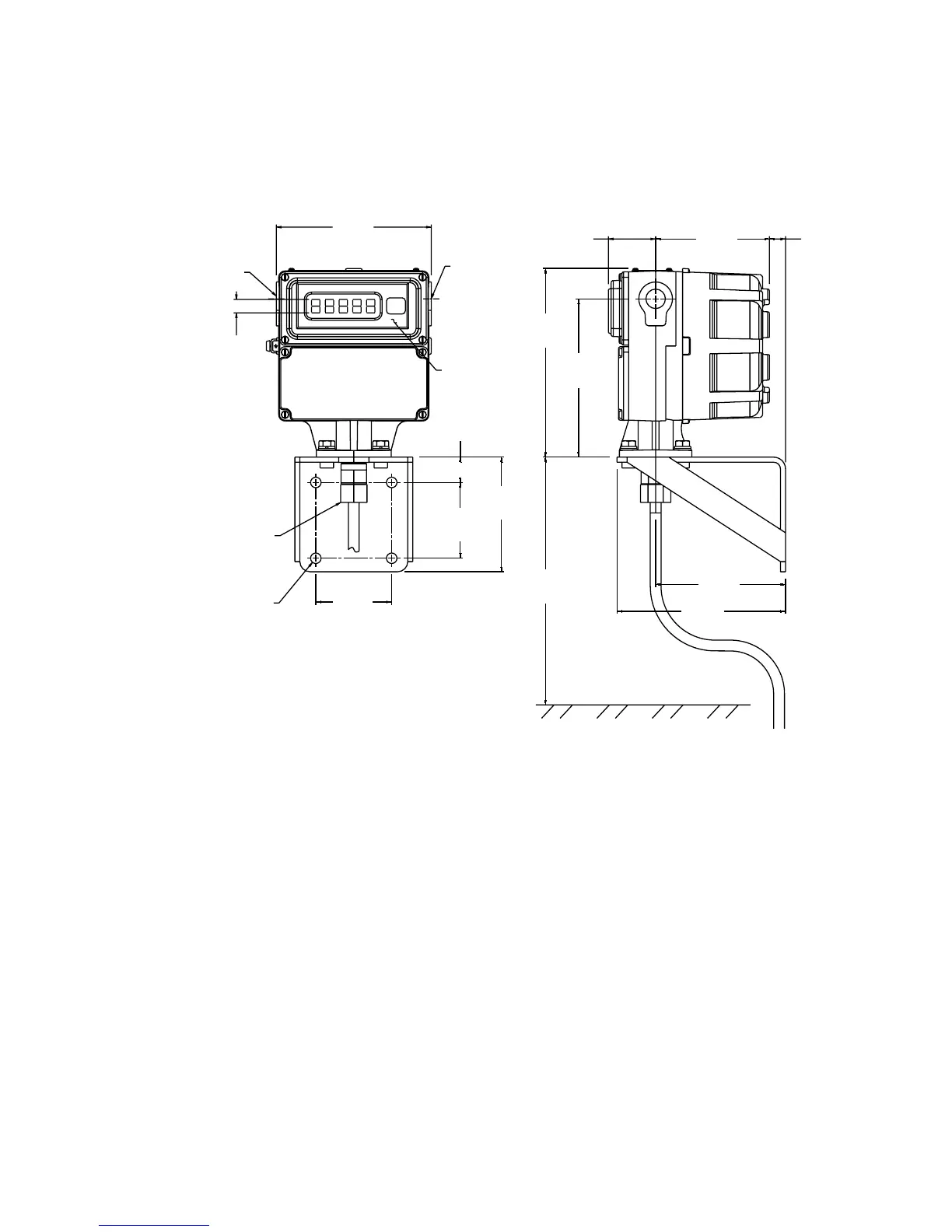

Figure 3-1 Installation dimensions for remote mounting
Dimensions in
inches
(mm)
5 3/4
(146)
2 13/16
(71)
61/64
(24)
4X
Ø 25/64
(10)
2 13/16
(71)
4 1/4
(108)
9 43/64
(245)
4 53/64
(122)
6 17/64
(159)
For minimum bend radii
of cable, see Figure 3-4,
Figure 3-5, or Figure 3-6
7 1/64
(178)
2X 5 57/64
(150)
1 3/4
(44)
(1)
4 1/4
(107)
19/32
(15)
3/4″–14 NPT
or M20 X 1.5
for power wiring
3/4″–14 NPT
or M20 X 1.5
for output wiring
Field wiring
compartment
3/4″–14 NPT
gland for sensor wiring
1/2
(13)
Character
height
(1)If transmitter is ordered without display,
dimension is 1 3/8 (35).
