3.3.3 Installation and removal of a Solutions Module

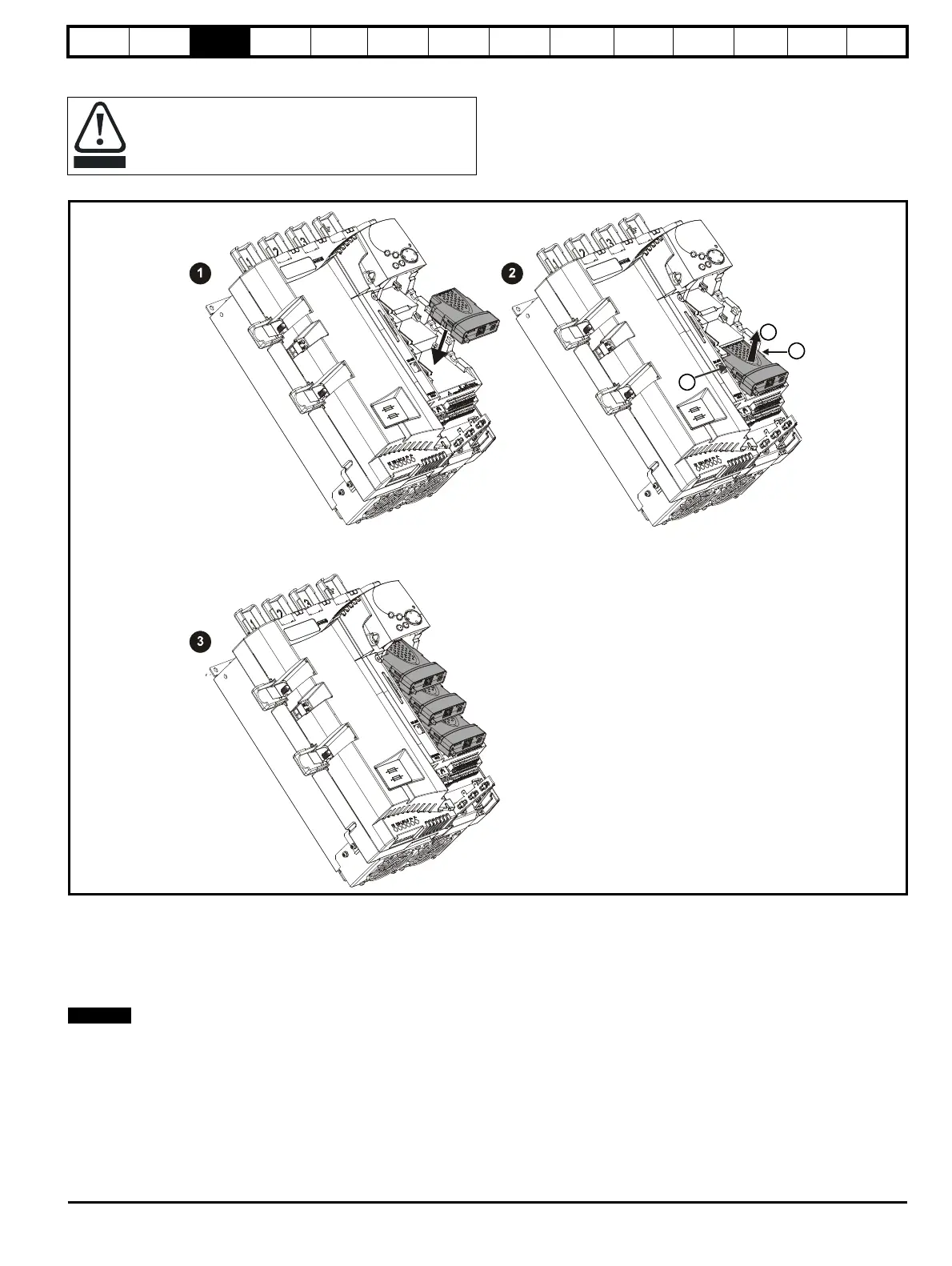

Figure 3-3 Installation and removal of the Solutions Module
1. To install the Solutions Module, press down in the direction shown
above until it clicks into place.
2. To remove the Solutions Module, press inwards at the points shown
(A) and pull in the direction shown (B).
3. The drive has the facility for all three Solutions Module slots to be
used at the same time, as illustrated.
It is recommended that the Solutions Module slots are used in the
following order: slot 3, slot 2 and slot 1.
Please power down the drive before removing / installing the
Solutions Module. Failure to do so may cause damage to
product
CAUTION
A
B
Solutions Module
in slot 1
Solutions Module
in slot 2
Solutions Module
in slot 3
