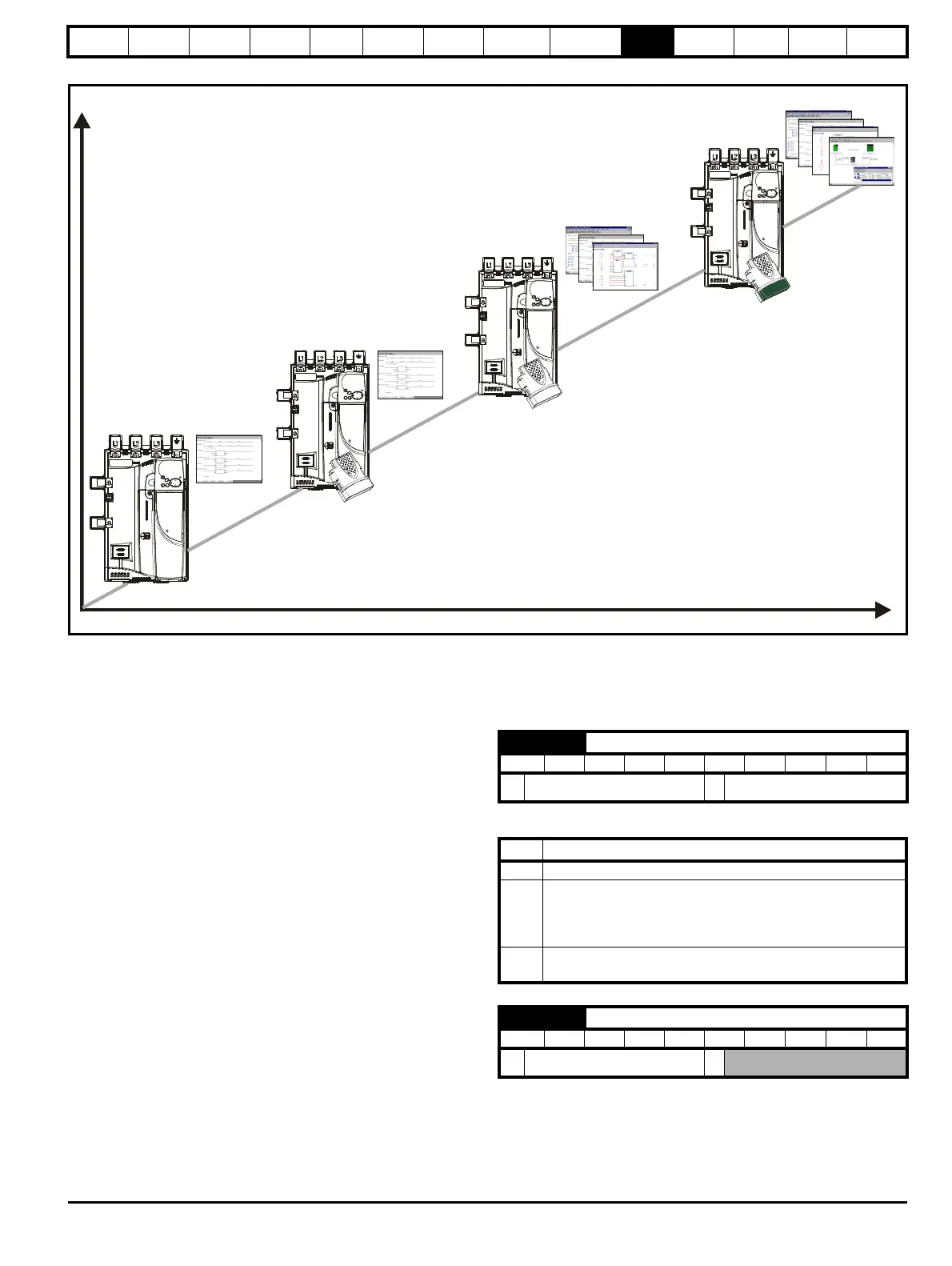

Figure 10-2 Programming options for Mentor MP
10.4 Getting started
SYPTLite can be found on the CD which is supplied with the drive.
SYPTLite system requirements
• Windows 2000/XP/Vista. Windows 95/98/98SE/Me/NT4 are not
supported
• Pentium III 500MHz or better recommended
• 128MB RAM
• Minimum of 800 x 600 screen resolution. 1024 x 768 is
recommended
• Adobe Acrobat 5.10 or later (for viewing User Guides)
• Microsoft Internet Explorer V5.0 or later
• RS232 to RS485, RJ45 communications lead to connect the PC to
the drive
• Administrator rights are required to install the software
To install SYPTLite, insert the CD and the auto-run facility should start
up the front-end screen, from which SYPTLite can be selected.
See the SYPTLite help file for more information regarding using
SYPTLite, creating ladder diagrams and the available function blocks.
10.5 Onboard PLC parameters
The following parameters are associated with the Onboard PLC
program.
This parameter is used to start and stop the drive Onboard PLC program.
The drive Onboard PLC program status parameter indicates to the user
the actual state of the drive Onboard PLC program.
F
U
N
C
T
I
O
N
A
L
I
T
Y
CAPABILITY
Level 1
Onboard PLC with SYPTLite software
Level 3
SM-Applications Lite V2
with SYPT software
Level 4
SM-Applications
Plus with SYPT
software
Level 2
SM-Applications Lite V2 with
SYPTLite software
11.47 Drive Onboard PLC program enable
RW Uni US
Ú
0 to 2
Ö
2
Value Description
0 Halt the drive Onboard PLC program.
1
Run the drive Onboard PLC program (if installed). Any out-of-
range parameter writes attempted will be clipped to the
maximum / minimum values valid for that parameter before
being written.
2
Run the drive Onboard PLC program (if installed). Any out-of-
range parameter writes attempted will cause a ‘UP ovr’ trip.
11.48 Drive Onboard PLC program status
RO Bi NC PT
Ú
-128 to +127
Ö
