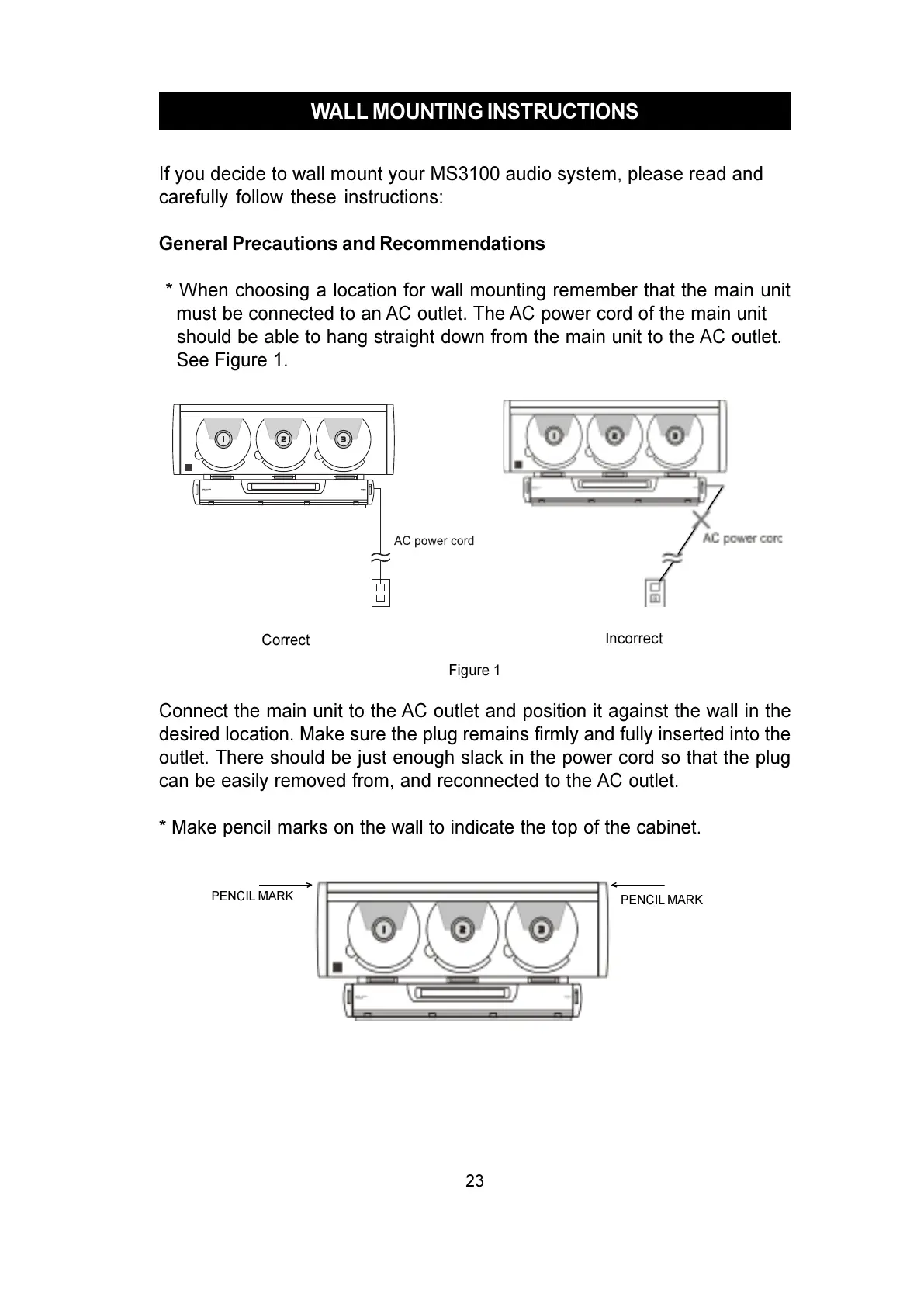

WALL MOUNTING INSTRUCTIONS
If you decide to wall mount your MS3100 audio system, please read and
carefully follow these instructions:
General Precautions and Recommendations
* When choosing a location for wall mounting remember that the main unit
must be connected to an AC outlet. The AC power cord of the main unit
should be able to hang straight down from the main unit to the AC outlet.
See Figure 1.
Connect the main unit to the AC outlet and position it against the wall in the
desired location. Make sure the plug remains firmly and fully inserted into the
outlet. There should be just enough slack in the power cord so that the plug
can be easily removed from, and reconnected to the AC outlet.
* Make pencil marks on the wall to indicate the top of the cabinet.
23
Figure 1
Incorrect
Correct
PENCIL MARK
PENCIL MARK
