• Have someone hold the main unit against the wall in the desired location and
make a pencil mark on the wall to indicate center point of the top edge of the
cabinet.
• If there is no AC outlet directly below the desired mounting location you may
use a UL approved extension cord. In this case you should allow the AC plug
of the main unit to reach all the way to the floor and connect the extension cord
on the floor, not above the floor. See Figure 2.
• Although all major functions of this system, including opening/closing the front
cover, can be operated by the remote control, you must still load and unload
your CD's manually. Therefore the main unit should be mounted at a height
that is convenient and comfortable for changing discs.
IMPORTANT: The front cover requires 3" clearance to open fully. If you plan to
mount the unit under a shelf, in a cabinet. etc, you must allow at least 3" clearance
above the unit so that the door can open completely without obstruction. If the front
cover encounters some obstruction as it is opening, the motor will reverse
automatically and the door will close immediately.
Correct
Incorrect

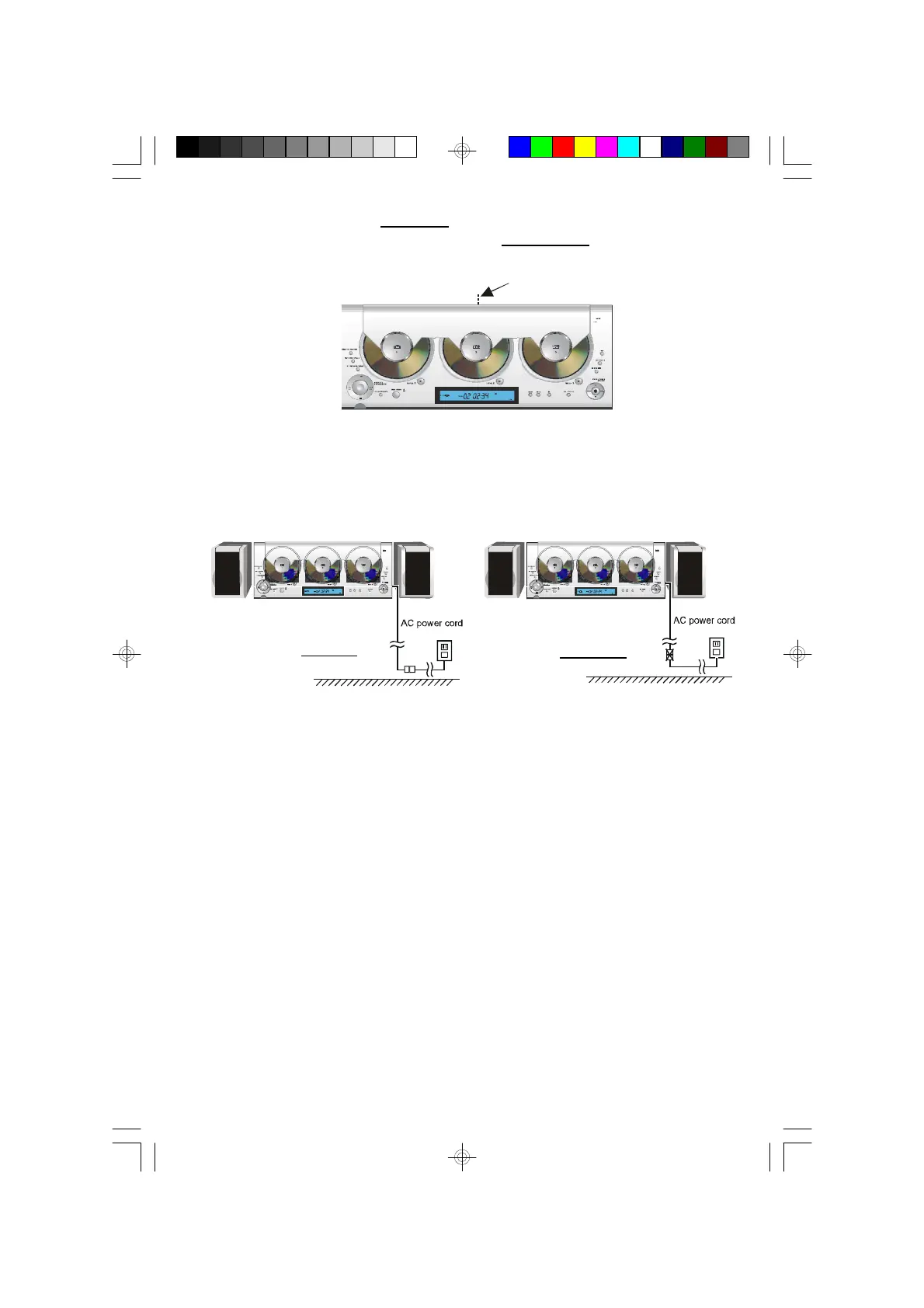

Figure 2
