30

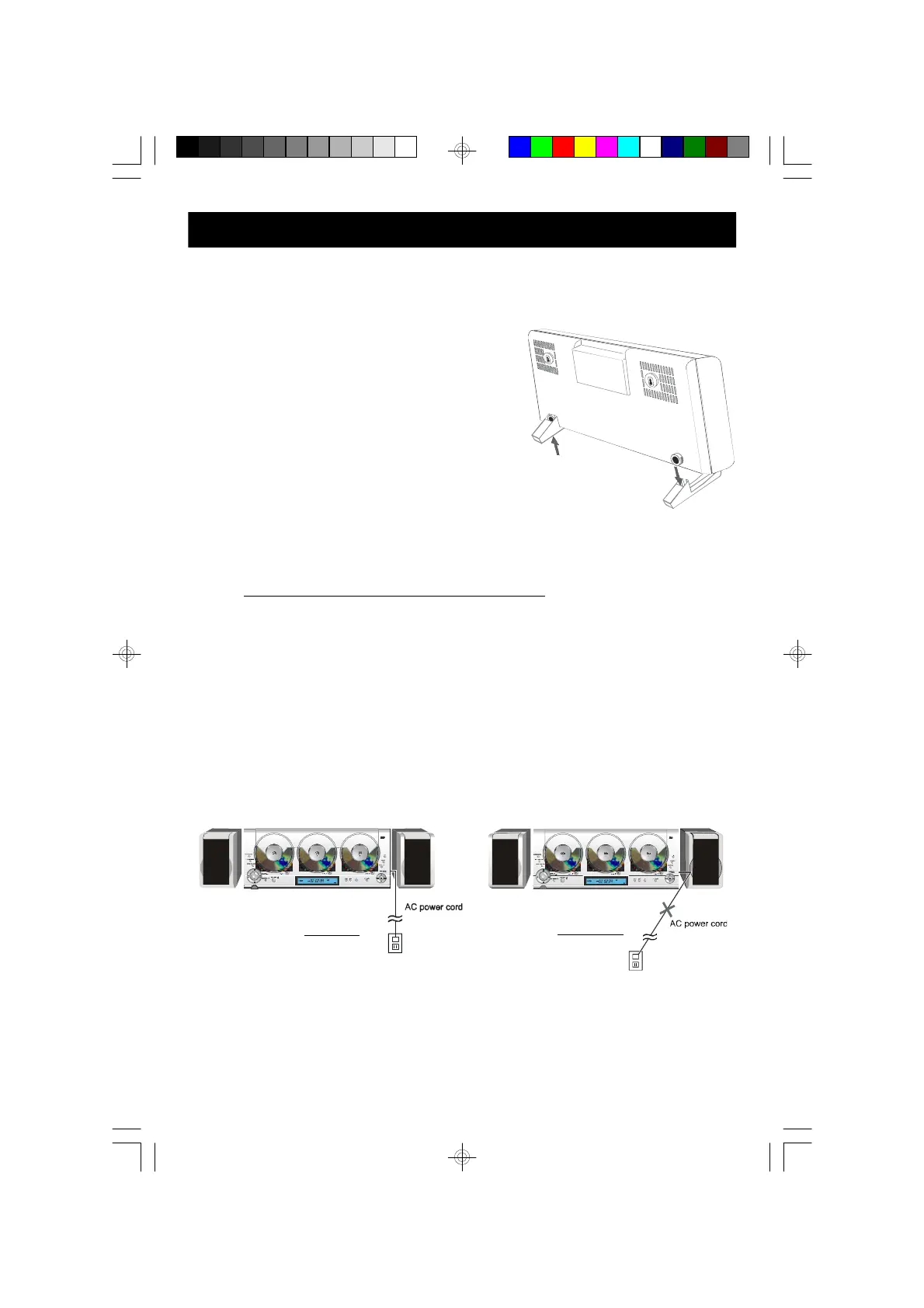

NOTE: The plastic legs must be removed from the main unit before wall mounting.
To remove the legs , slide them downward as shown.
To re-attach the legs, slide the U-shaped cut-outs
in the legs upwards over the round posts at the
back of the unit. Make sure the legs are pushed
up all the way.
If you decide to wall mount your MS3103 audio system please read and
carefully follow these instructions:
NOTE: Wall mounting hardware is not included. You should purchase the
appropriate type of anchors for the wall where the unit will be mounted. (Solid-wall,
Hollow-wall, etc.) Wall anchors are available at hardware stores and home
improvement centers. Tools required: Electric drill, Hammer, Screwdriver.
General Precautions and Recommendations
• When choosing a location for wall mounting remember that the main unit must
be connected to an AC outlet. The AC power cord of the main unit should be
able to hang straight down from the main unit to the AC outlet.
See Figure 1.
Connect the main unit to the AC outlet and position it against the wall in your
desired location. Make sure that the plug remains firmly and full inserted into the
outlet. There should be just enough slack in the power cord so that the plug can be
easily removed from, and reconnected to the AC outlet.
WALL MOUNTING INSTRUCTIONS
Correct
Incorrect
Figure 1
MS3103_ib012803.p65 28/1/2003, 11:3630
