6
SPEAKER CONNECTIONS

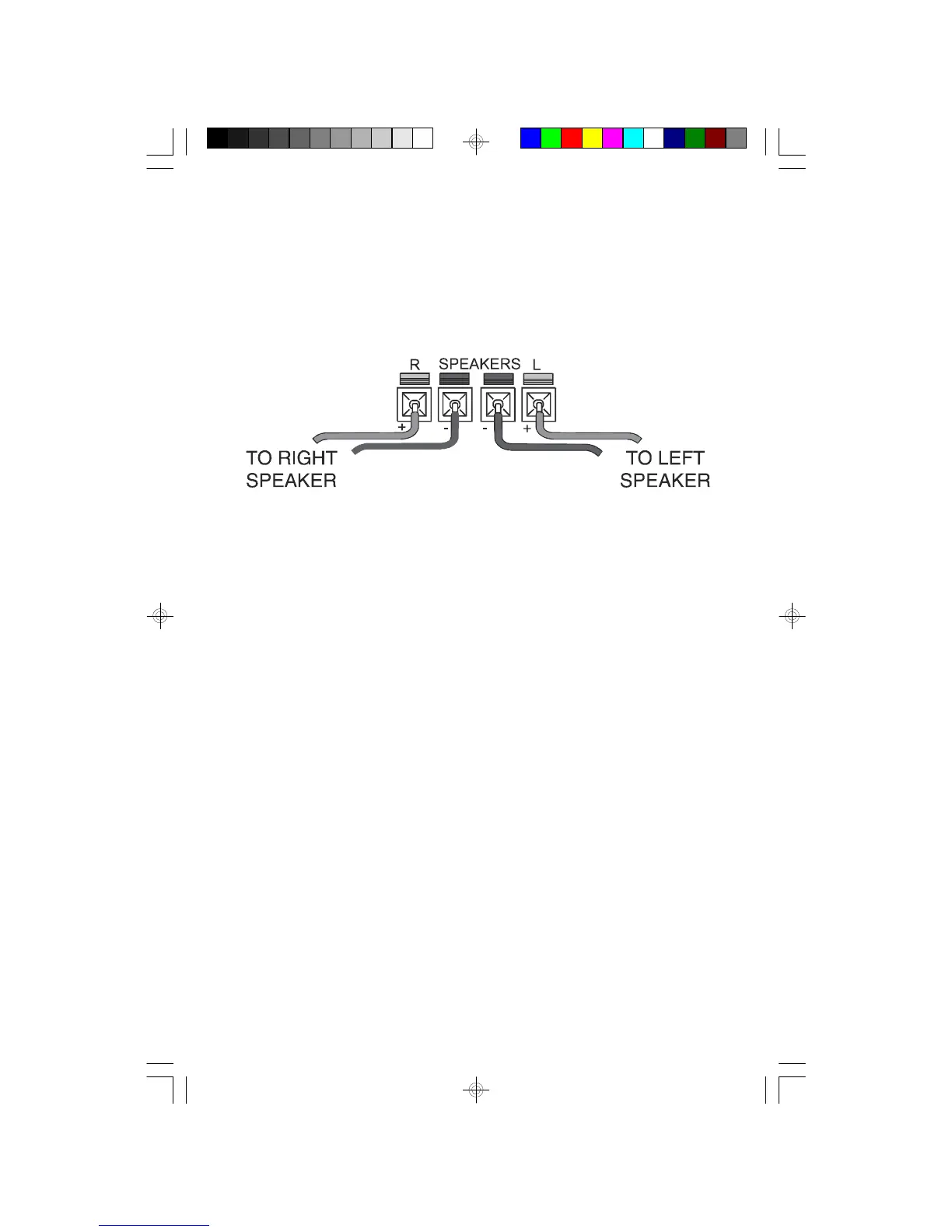

Connect the speakers to the red (+) and black (–) terminals on top of the unit as
shown below.
(Press the red (+) or black (–) terminal tab, insert wire, release tab to hold wire in
place.)
The speakers may be placed close to the main unit or as far apart as the cables
will allow. Please leave a gap of at least 1/4” between the main unit and speakers
to prevent any vibration in the speakers from causing the CD player to skip.
NOTE: The speakers are not magnetically shielded. They should not be placed
directly on top of, or next to, a TV set. The magnets in the speakers could cause
color distortion on the TV screen if the speakers are too close to the TV.
The entire system may also be wall-mounted if desired. Wall-mounting instructions
can be found at the end of this manual.
MS3105_120503.p65 5/12/2003, 12:026
