Emerson PeC C100 User Manual

14 AGL_Sol_PEC_01_E_Rev01

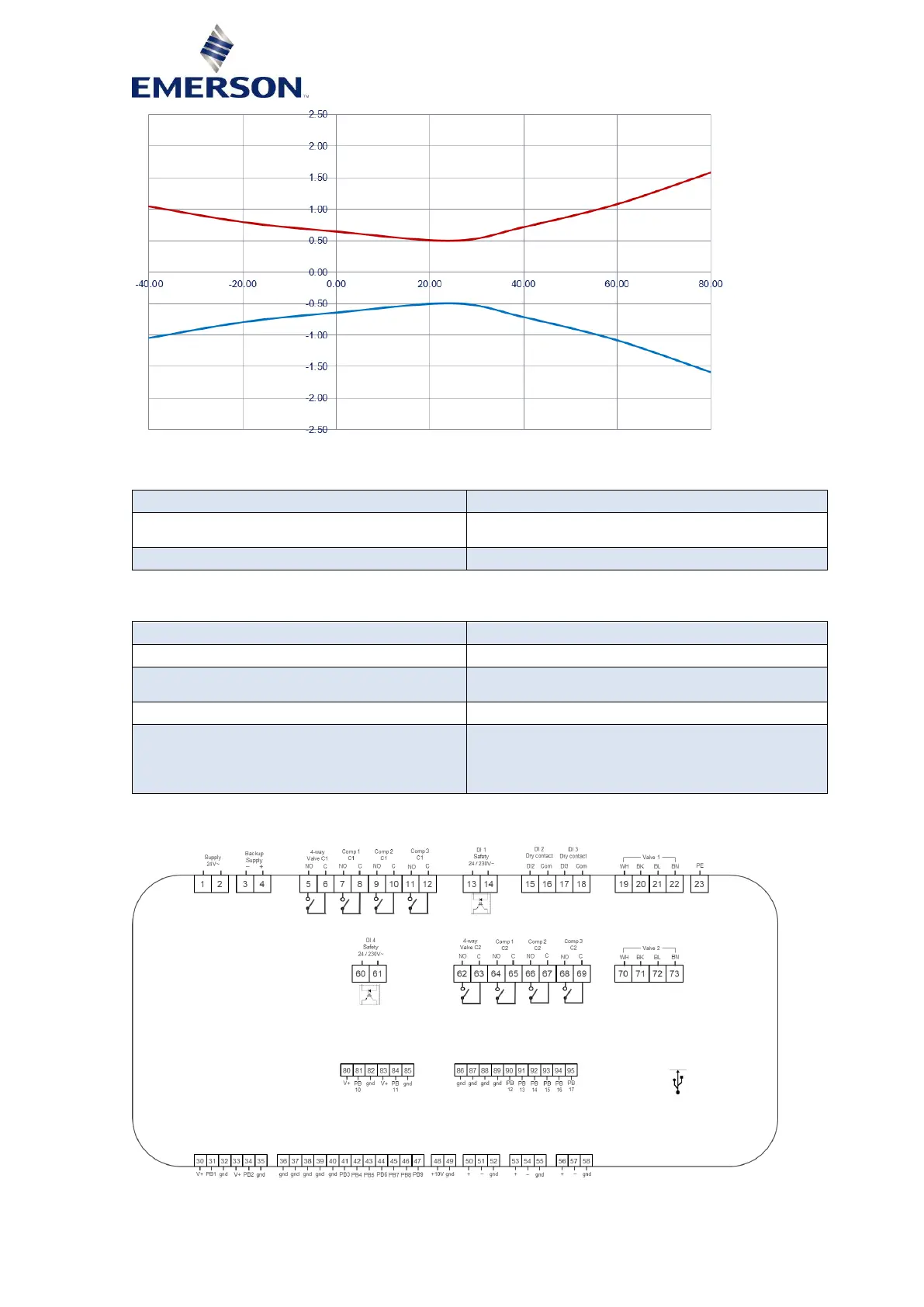

Figure 6: Temperature measurement accuracy (Total error) NTC 10 KΩ
2.3.2.4 Digital inputs
Type
Opto-insulated / free voltage contacts
Number of inputs
1 DI 24-240 VAC/DC, opto-isolated
2 DI 24 VAC Dry contact, potential free
Digital input status variation detection time
1 second
Table 12
2.3.2.5 Digital outputs
Type
Relays with NO contacts
Number of outputs
8
Type of output
(configurable via software parameter)
Relays with normally open contact
Maximum load
230 VAC (5 A resistive, 2 A inductive cos φ 0.5)
Caution!
Verify the capacity of the output used.
There is double insulation between the digital outputs
and the low voltage of the rest of the circuit.
Gas-tight version (EN 66079-15 clause 22.5)
Table 13
2.3.2.6 Wiring diagram PeC C200
Figure 7
