Emerson PENBERTHY Series User Manual

8

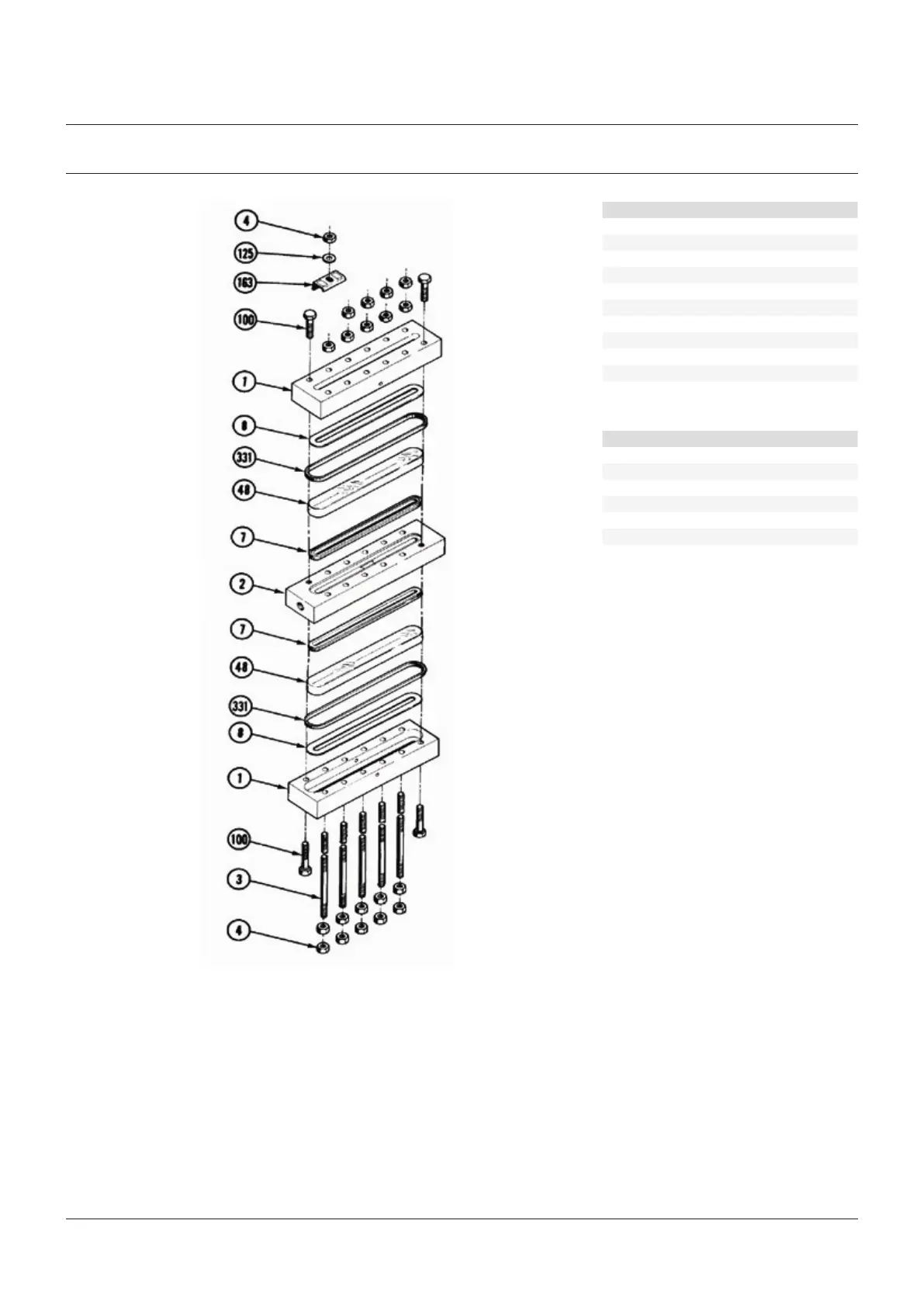

11 EXPLODED PARTS DIAGRAM
PARTS LIST
Item Description
1 Cover
2 Chamber
3 Stud
4 Nut
7 Gasket
8 Cushion
48 Glass
100 Screw
125 Washer
163 Nameplate
331 Band
RECOMMENDED SPARE PARTS
Item Description Min. qty.
3 Stud 2 per sect.
4 Nut 2 per ect.
48 Glass 1
100 Screw 1 per sect.
7 Gasket 2
8 Cushion 2
FIGURE 3
U Transparent
PENBERTHY SERIES U FLAT GLASS GAGES
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
NOTE
Size 7 shown - actual gage may be shorter and require fewer bolting components.
