Emerson PNC001-A Series Quick Start Guide

Quick Start Guide Section 1
GFK-2941K Sep 2019
User Features 7

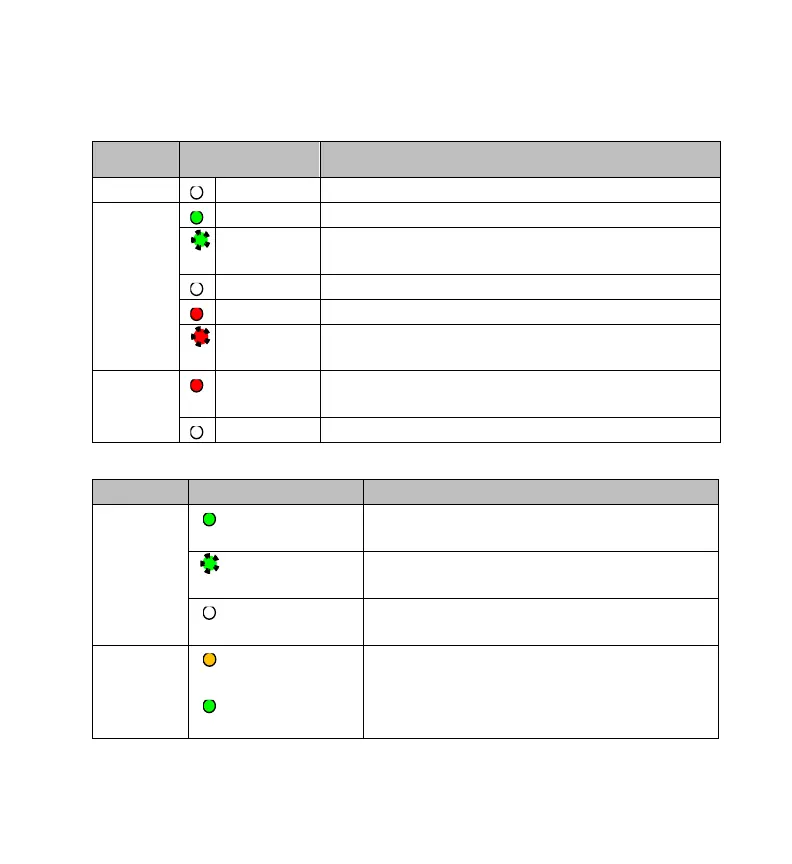

LED
LED State
Operating State
Off
No Overrides active in I/O Reference Tables.
RDSD
On Green
USB Device detected (No Activity)
Blinking
Green
Port activity detected on USB Interface
Off
No port activity detected on USB Interface
On Red
RDSD Failure
Blinking
Red
Target name mismatch: Press same RDSD
pushbutton again to dismiss.
SYS FLT
On Red
CPU is in Stop/Faulted mode: a fatal fault has
occurred.
Off
No fatal faults detected.
CPE330 Ethernet Indicators
LED
LED State
Operating State
LINK
(upper)
On Green
The corresponding link is physically
connected.
Blinking
Green
Traffic is detected at the corresponding
port.
Off
No connection detected at corresponding
port.
1Gbps
(lower)
On Amber
(LAN1) or
Corresponding network data speed is 1
Gbps.
On Green
(LAN2)
