Emerson PNC001-A Series Application Guide

Application Guide Chapter 4
GFK-2928C Oct 2019
Toolchest Components 9
Chapter 4: Toolchest Components
In order to use the dual bus application components, they must first be added to the PAC
Machine Edition Toolchest.
Click on the View Tab in PAC Machine Edition Then make certain that the Toolchest item is
checked.

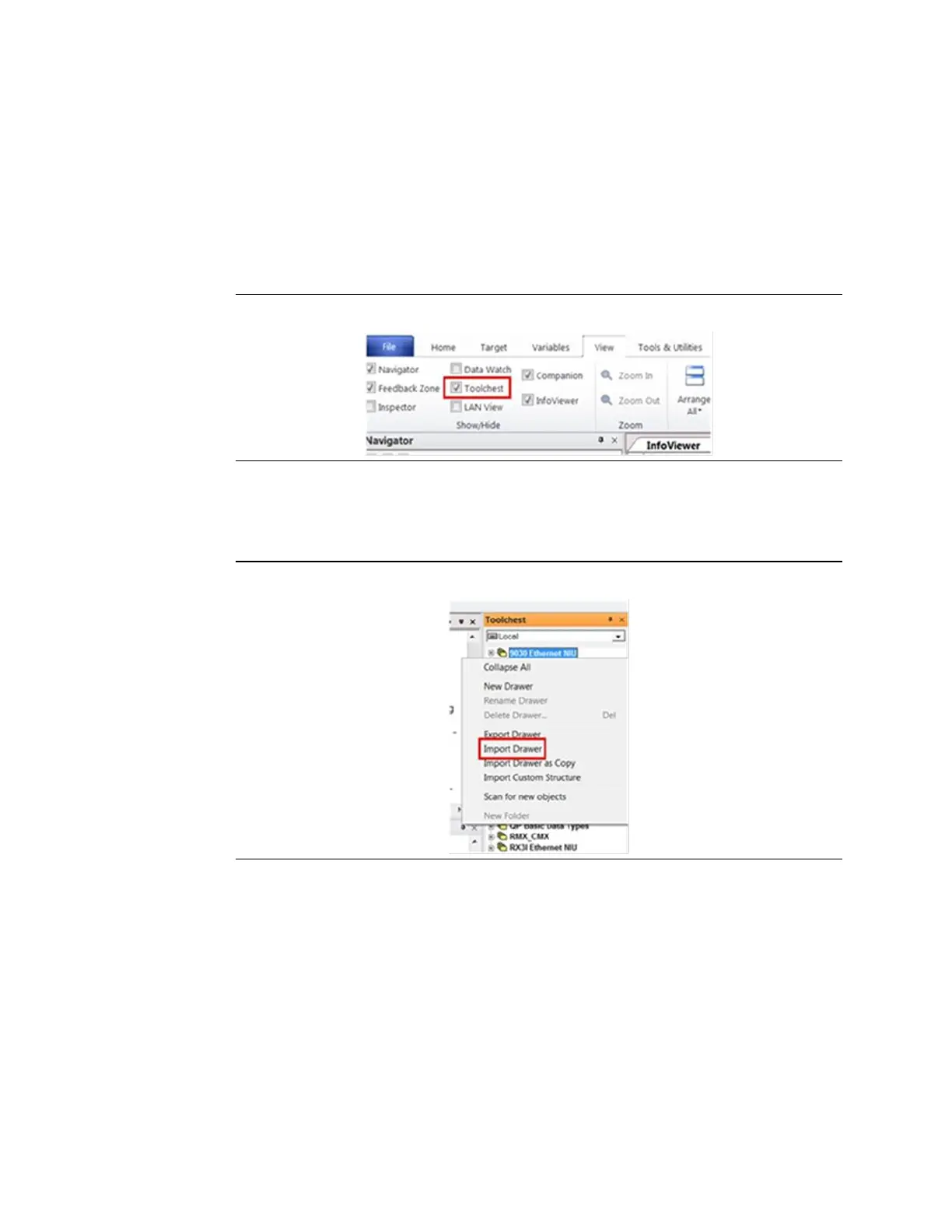

Figure 5: PAC Machine Edition Toolchest Checkbox
The Toolchest will be displayed (normally docked on the right side of PAC Machine Edition).
Right click on the Toolchest to display a popup menu that will allow you to import a
Toolchest Drawer. Double click on the menu item Import Drawer.
Figure 6: Import Toolchest Drawer Menu Item
A dialog box, like the one below, will be displayed. Navigate to the location containing the
application Toolchest components and then Import the Toolchest drawer for dual bus
support by selecting DualBus.ZDRW (or a designated upgrade filename). Click on the Open
button.
