The SW116 wall control transmits the command
signals via radio waves to the SW105 receiver
installed in the ceiling fan ceiling cover. The
SW105 receiver is required for the SW116 wall
control to function. Power for the SW116 wall
control comes from the 12V battery, located in the
wall control.
Replacement 12V batteries recommended are
Duracell MN21, Eveready A23, and GP23A.

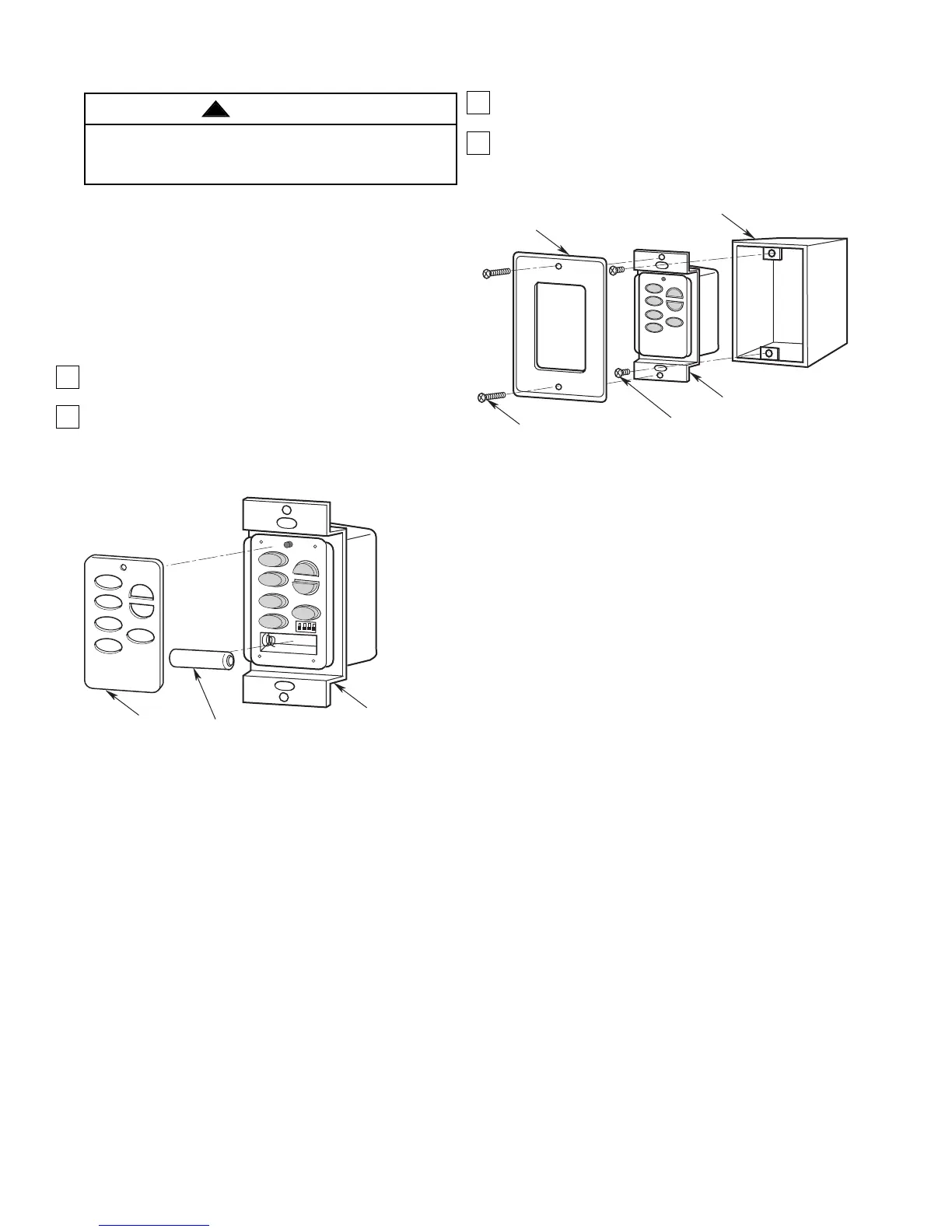

1. Install the 12V battery (supplied) into the wall
control (Figure 19).
2. The SW116 wall control is supplied with a white or
almond color cover. Choose the style that best
suits your needs and snap the cover onto the wall
control (Figure 19).
Figure 19
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse or circuit breaker box.
WARNING
!
Battery Installation of Wall Control
3. Install the wall control onto the outlet box using the
supplied screws (Figure 20).
4. Install decorator faceplate (included) using the two
screws provided. Leave wall control in “OFF” mode
until fan installation is completed (Figure 20).
