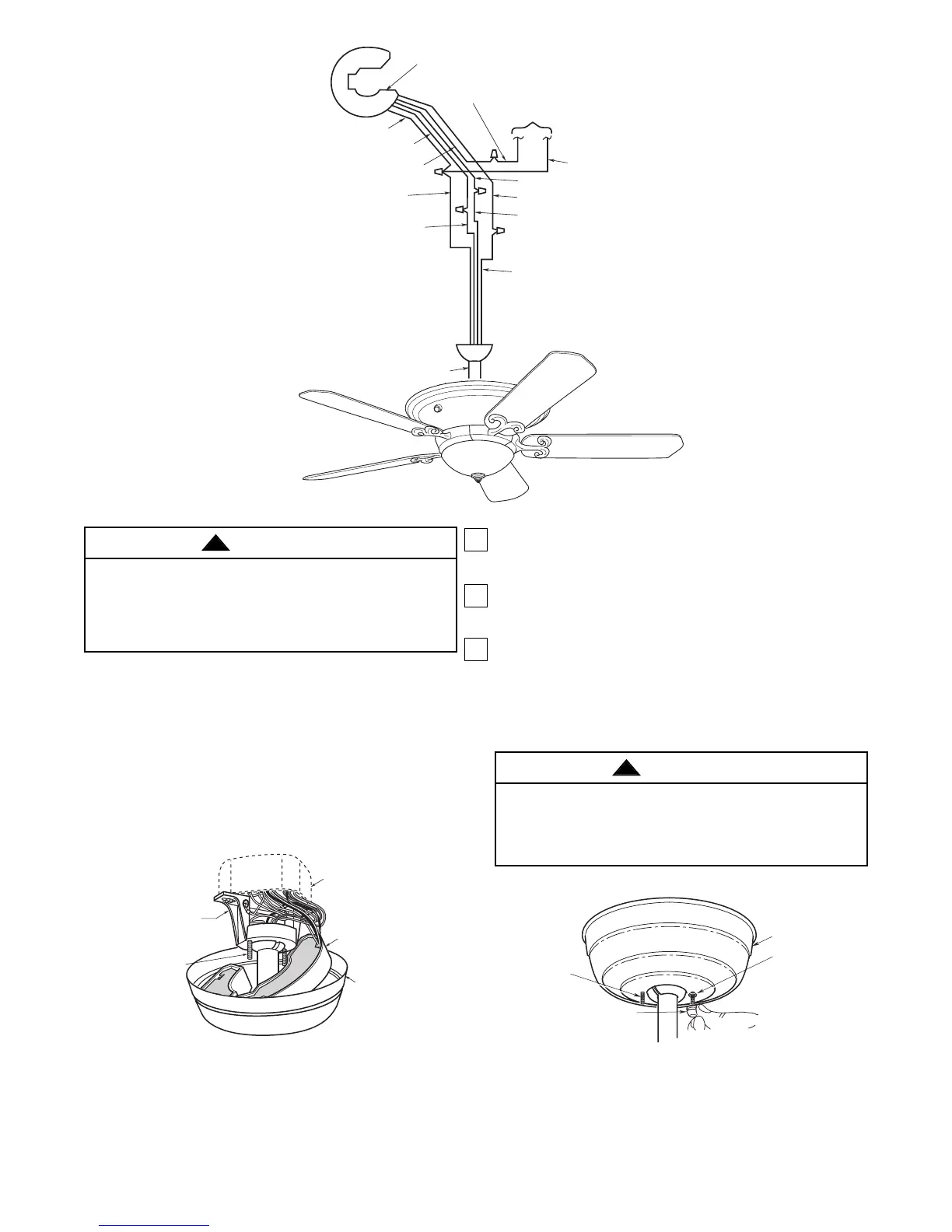

Figure 11
8
6. Screw the two 1-1/4” threaded studs (supplied)
into the tapped holes in the hanger bracket (Figure
11).
7. Lift the ceiling cover up to the threaded studs and
turn until studs protrude through the holes in the
ceiling cover (Figure 12).
8. Secure the ceiling cover in place by installing two
lockwashers and two knurled knobs (supplied)
(Figure 12). Tighten the knurled knobs securely
until the ceiling cover fits snugly against the ceiling
and the hole in the ceiling cover is clear of the
downrod.
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
4. After connections have been made, separate the
white and green wires from the black, blue and
yellow wires.
5. Carefully turn the wires upward and insert them up
through the open side of the hanger bracket and
into the outlet box. Push the green and white wires
into one side of the outlet box; push the black, blue
and yellow wires into the other side of the outlet
box.
Figure 10
