ROC364 Instruction Manual
3-7 Input and Output Modules Rev Jun/05
3.4.2 Analog Input Differential Module

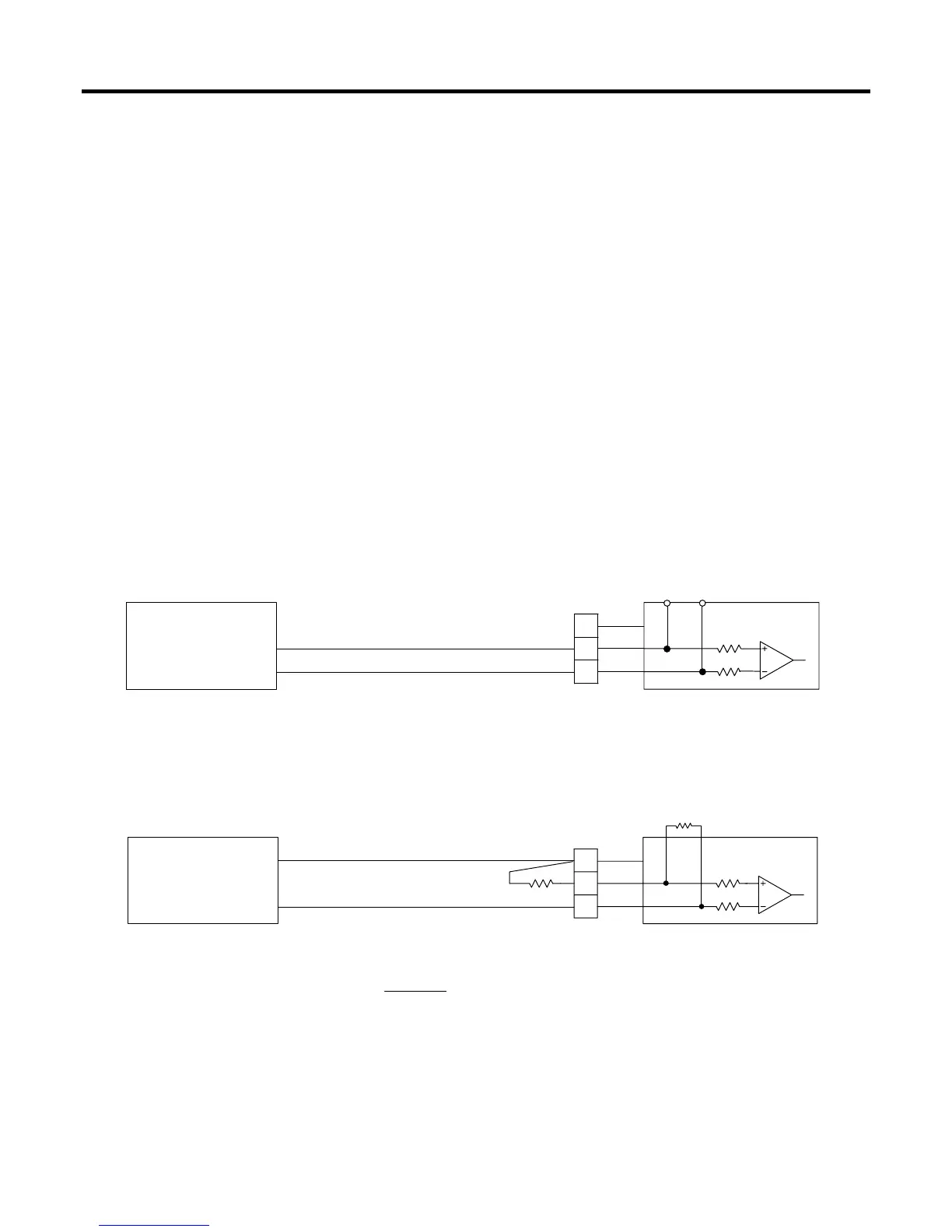

A schematic representation of the field wiring connections to the input circuit of the Analog Input
Differential module is shown in Figure 3-4, Figure 3-5, and Figure 3-6.
The Analog Input Differential module measures either output voltage (V
o
) or loop current (I) from
externally-powered devices only. The module operates by measuring the voltage between field wiring
terminals B and C. The module input is semi-isolated from the ROC power supply and signal commons.
When connecting voltage devices, the 5-volts input voltage limit of the module must not be exceeded. If
the output of the field device is in the range of 0 to 5 volts dc, do not use a scaling resistor; ensure that
the supplied 250-ohms scaling resistor is removed. Refer to Figure 3-4 for connecting field devices with
outputs of 5 volts dc or less.
The voltage cannot be negative. The A to D converter divides the 0 to 5 volts signal into 4095 counts
and the last 95 counts (being 4001 to 4095) represent overvoltage. If you use a 0 to 1 volt input to the
converter, the resolution is reduced, as there are only 800 counts with which to work.
For field devices with output voltages that exceed 5 volts dc, two scaling resistors, R1 and R2, are
required (not supplied). Figure 3-5 shows how to connect field devices with outputs exceeding 5 volts dc
and where to install scaling resistors (at least 1%, 1/8 watts). The equation for determining values of
scaling resistors R1 and R2 is given in Figure 3-5. For example, if V
O
= 10 volts, and
R1 = 250 ohms, then R2 = 250 ohms. Note that R1 must be less than 4.5 kilohms.
V = VOLTAGE FROM ANALOG DEVICE = 0 TO 5 VDC
SELF-POWERED
A
NALOG VOLTAGE
DEVICE
o
-
V
o
+
DOC0155A
N/C
C
-
B
A
+
200K
200K
R1 = OPEN
A
I DIFF
Figure 3-4. AI Differential Module Field Wiring for Low Voltage Devices
V = VOLTAGE FROM ANALOG DEVICE = 5 TO 100 VDC
R1 MUST BE LESS THAN 4.5K OHM (1.0K OHM TYPICAL)
R1
(
V - 5
)
TO SCALE R1 AND R2 FOR:
o
R2 =
o
5
DEVICE
A
NALOG VOLTAGE
SELF-POWERED
-
o
V
+
DOC0156
A
N/C
R2
C
B
+
-
A
R1
200K
200K
A
I DIFF
Figure 3-5. AI Differential Module Field Wiring for Higher Voltage Devices
