Emerson Rosemount 3051D - Transmitter Installation; Mount the Transmitter

2 Transmitter installation
2.1 Mount the transmitter
2.1.1 Liquid applications
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the drain/vent valves are oriented
upward.

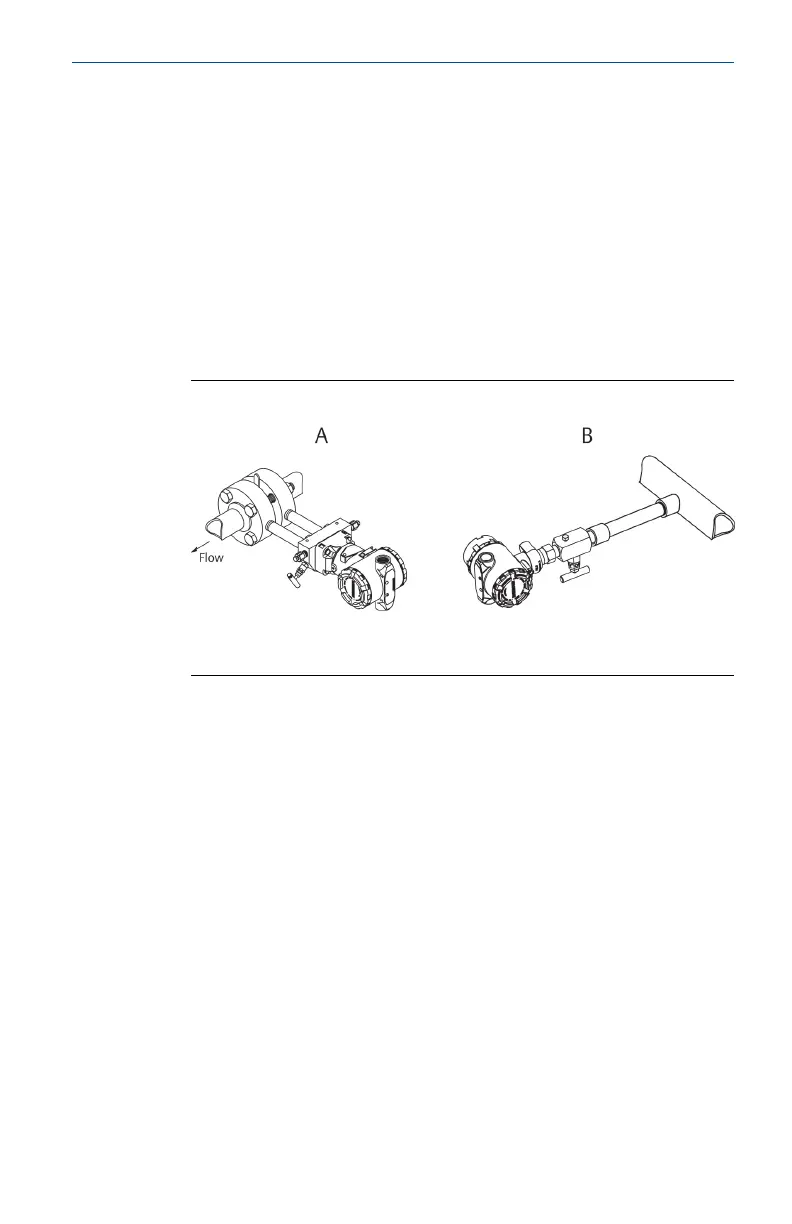

Figure 2-1: Coplanar and In-line Liquid Applications
A. Coplanar
B. In-line
2.1.2 Gas applications
Procedure
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
