Emerson Rosemount 5301 - Specifications; Functional Specification

Product Data Sheet
00813-0100-4530, Rev DA
December 2010
Rosemount 5300 Series
16
Functional Specification
General
Field of Application Liquids and semi-liquids level and/or liquid/liquid interfaces or solids level
• Model 5301, for liquid level or submerged interface measurements
• Model 5302, for liquid level and interface measurements
• Model 5303, for solid level measurements
Measurement Principle Time Domain Reflectometry (TDR)
(See “Measurement Principle” on page 2 for a description of how it works)
Microwave Output Power Nominal 300 µW, Max. 45 mW
Telecommunication (FCC and
R&TTE)
FCC part 15 (1998) subpart B and R&TTE (EU directive 99/5/EC). Considered to be an unintentional
radiator under the Part 15 rules
Humidity 0 - 100% Relative Humidity
Start-up Time < 40 s
Internal Power Consumption < 50 mW in normal operation
4-20 mA HART (Output Option Code H) - (See Ordering Information in Table 1 on page 4 and Table 2 on page 11)
Output Two-wire, 4–20 mA. Digital process variable is superimposed on 4–20 mA signal, and available to
any host that conforms to the HART protocol. The HART signal can be used in a multidrop mode.
Signal Wiring Recommended output cabling is twisted shielded pairs, 18-12 AWG
HART Tri-loop By sending the digital HART signal to the optional HART Tri-loop, it is possible to
have up to three additional 4–20 mA analog signals. See the Rosemount 333
HART Tri-loop Product Data Sheet (Document No. 00813-0100-4754) for
additional information
Smart Wireless THUM Adapter The optional Smart Wireless THUM adapter can be mounted directly on the
transmitter or by using a remote mounting kit. IEC 62591 (WirelessHART) enables
access to multi-variable data and diagnostics, and adds wireless to almost any
measurement point. See the Rosemount Smart Wireless THUM adapter Product
Data Sheet (Document No. 00813-0100-4075) and Smart Wireless THUM Adapter
for Rosemount Process Level Transmitter Applications (Document No.
00840-0100-4026)

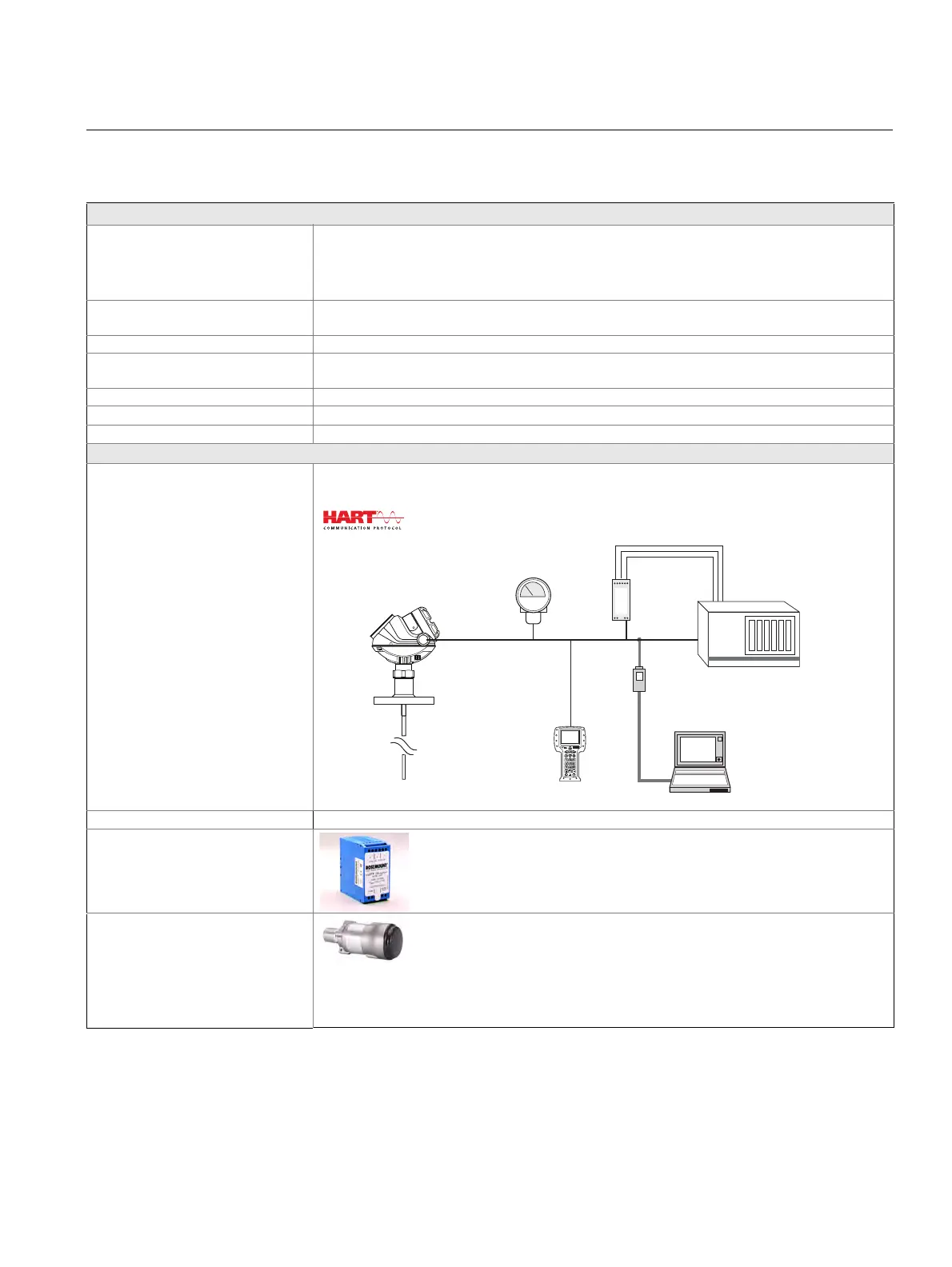

Rosemount 5300
Series Transmitter
Rosemount 751
Field Signal
Indicator
Rosemount
333 HART
Tri-loop
3 x 4-20 mA
Control
System
4-20 mA / HART
Field Communicator
PC with Rosemount
Radar Master
HART
Modem
