Product Data Sheet
00813-0100-4530, Rev DA
December 2010
Rosemount 5300 Series
28
Performance Specification
General
Reference Conditions Single standard probe, 77 °F (25 °C) in water and ambient pressure
Reference Accuracy ± 0.12 in. (3 mm) or 0.03% of measured distance, whichever is greatest
(1)
Repeatability ± 0.04 in. (1 mm)
Ambient Temperature Effect ± 0.008 in. (0.2 mm) /°K or ± 30 ppm/°K of measured value, whichever is greatest
Update Interval < 1 per second
Measuring Range

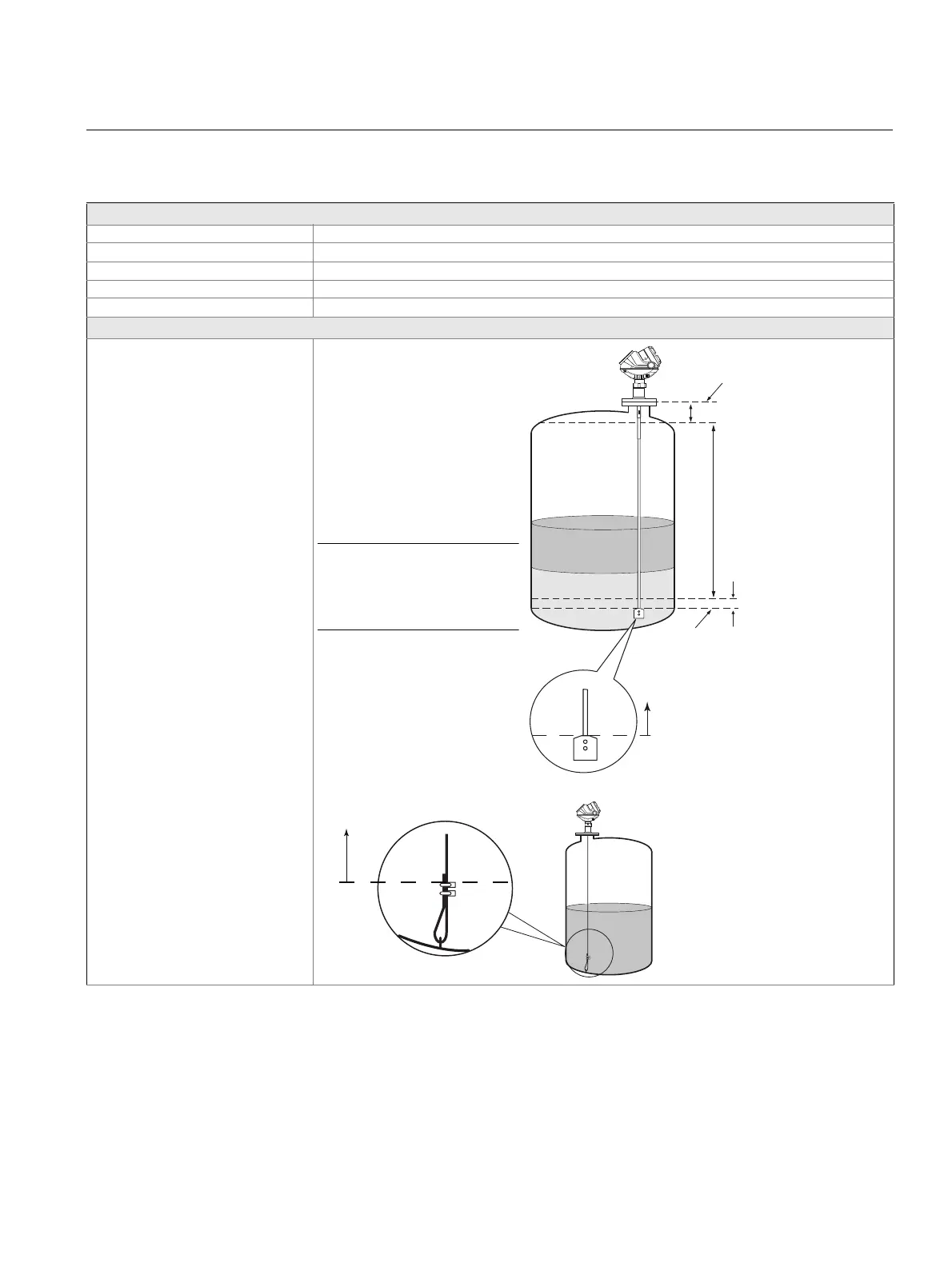

Transition Zones Transition zones are areas where
measurements are non-linear or
have reduced accuracy. See
picture and Table 7 on page 29
If measurements are desired at the
very top of the tank, it is possible to
mechanically extend the nozzle
and use the coaxial probe. Then
the upper transition zone is moved
into the extension.
Upper Reference Point
Upper Transition Zone
Maximum
Measuring Range
Lower Transition Zone
Lower
Reference
Point
Lower Transition Zone
NOTE
The 4-20 mA set points are
recommended to be configured
between the transition zones,
within the measuring range
For a flexible single lead probe
with chuck, the lower transition
zone is measured upwards from
the upper clamp.
