Product Data Sheet
00813-0100-4530, Rev DA
December 2010
Rosemount 5300 Series
4

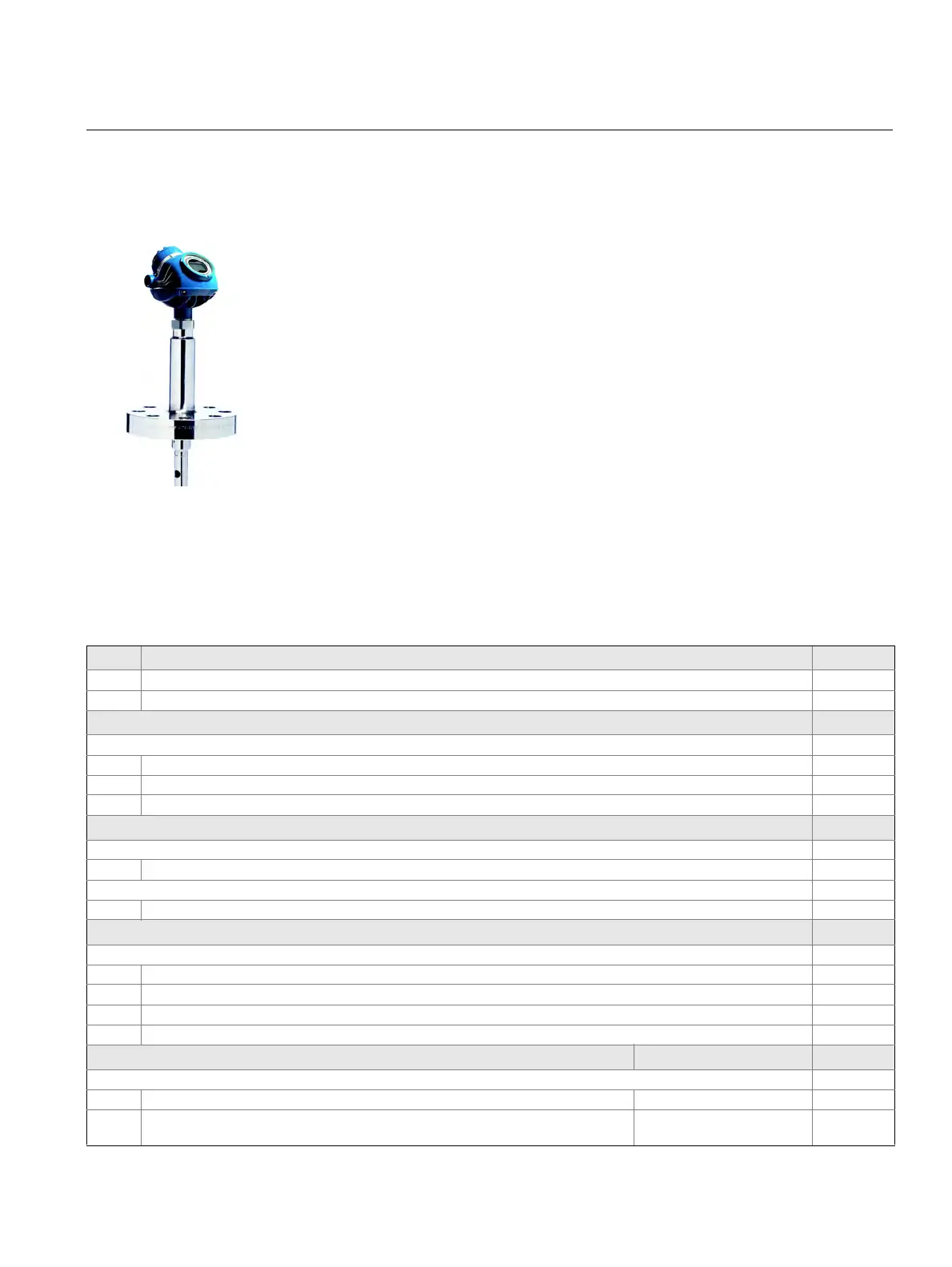

Rosemount 5301 and 5302
Level and/or Interface in Liquids
Rosemount 5301 and 5302 Guided Wave Radar Level transmitters provide industry
leading measurement capabilities and reliability in liquids. Characteristics include:
• Direct Switch Technology and Probe End Projection to handle low reflective media
and long measuring ranges
• Wide range of probe styles, materials, and temperatures and pressures for
application flexibility
• HART 4-20 mA, F
OUNDATION fieldbus
, Modbus
,
or IEC 62591 (WirelessHART) with
the Smart Wireless THUM adapter
• Prior use SIL 2 suitable (QS Option)
• Advanced Diagnostics (D01 & DA1 Options)
Additional Information
Specifications: page 16
Certifications: page 36
Dimensional drawings: page 39
TABLE 1. 5301 and 5302 Level and/or Interface in Liquids Ordering Information
★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.
Model Product Description
5301 Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe)
5302 Guided Wave Radar Liquid Level and Interface Transmitter
Signal Output
Standard Standard
H 4-20 mA with HART communication ★
FF
OUNDATION fieldbus ★
M RS-485 with Modbus communication ★
Housing Material
Standard Standard
A Polyurethane-covered Aluminum ★
Expanded
S Stainless Steel, Grade CF8M (ASTM A743)
Conduit / Cable Threads
Standard Standard
1 ½ - 14 NPT ★
2 M20 x 1.5 adapter ★
E M12, 4-pin, Male connector (eurofast
®
)
(1)
★
M A size Mini, 4-pin, Male connector (minifast
®
)
(1)
★
Operating Temperature and Pressure
(2)
Probe Type
Standard Standard
S - 15 psig (-1bar) to 580 psig (40 bar) @ 302 °F (150 °C) All ★
H High Temperature / High Pressure
(3)
:
2940 psi @ 752 °F and 5000 psi @ 100 °F (203 bar @ 400 °C and 345 bar @ 38 °C)
3A, 3B, 4A, 4U, 4V, 5A and
5B
★
