2. Remove the upper enclosure insulation cover (P/N 2-4-4500-195).

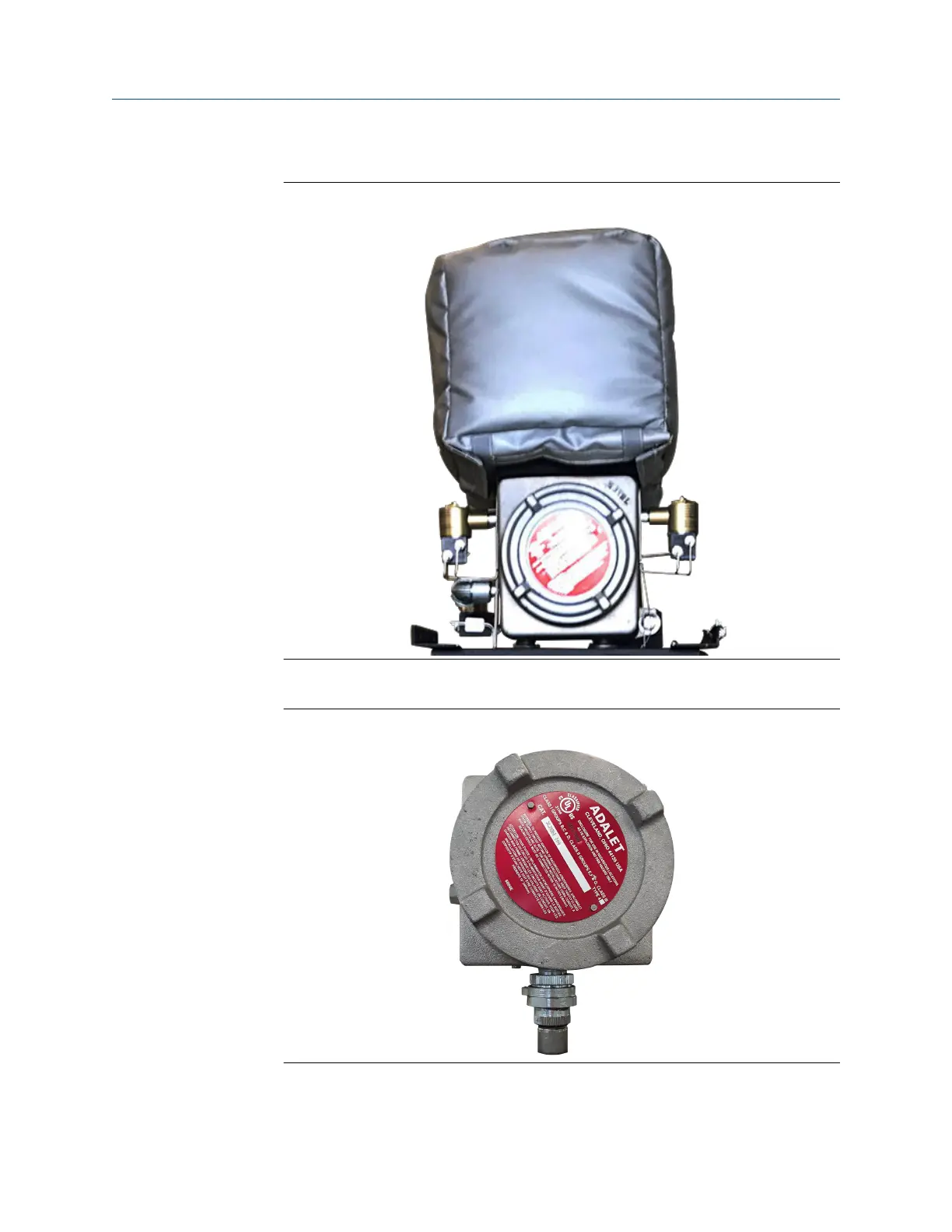

Figure 2-5: Upper Enclosure Insulation Cover
3. Remove the explosion-proof upper enclosure cover.
Figure 2-6: Upper Enclosure Explosion-Proof Cover
Retrofit Instructions Installation
SK-07781 September 2019
Rosemount Model 500 Helium to Hydrogen Gas Conversion Kit 15
