Emerson Process Management GmbH & Co. OHG 4-29
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4
Installation
Analog Inputs
Pin Signal P3.1 not used P3.2 not used P3.3 not used P3.4 not used P3.5 not used P3.6 not used P3.7 not used P3.8 not used P3.9 not used P3.10 not used P3.11 not used P3.12 not used P2.1 BR 1 t a wire bridge here to apply analog P2.2 BR 1 signal in current mode to input 1 P2.3 Input 1 high (+) P2.4 Input 1 high (+) P2.5 Input 1 low (-) P2.6 Input 1 low (-) P2.7 BR 2 t a wire bridge here to apply analog P2.8 BR 2 signal in current mode to input 2 P2.9 Input 2 high (+) P2.10 Input 2 high (+) P2.11 Input 2 low (-) P2.12 Input 2 low (-)
{
}
{
}
IN1
Mode
IN2
Mode
4.6.2 Installation - X-STREAM XEXF Field Housings

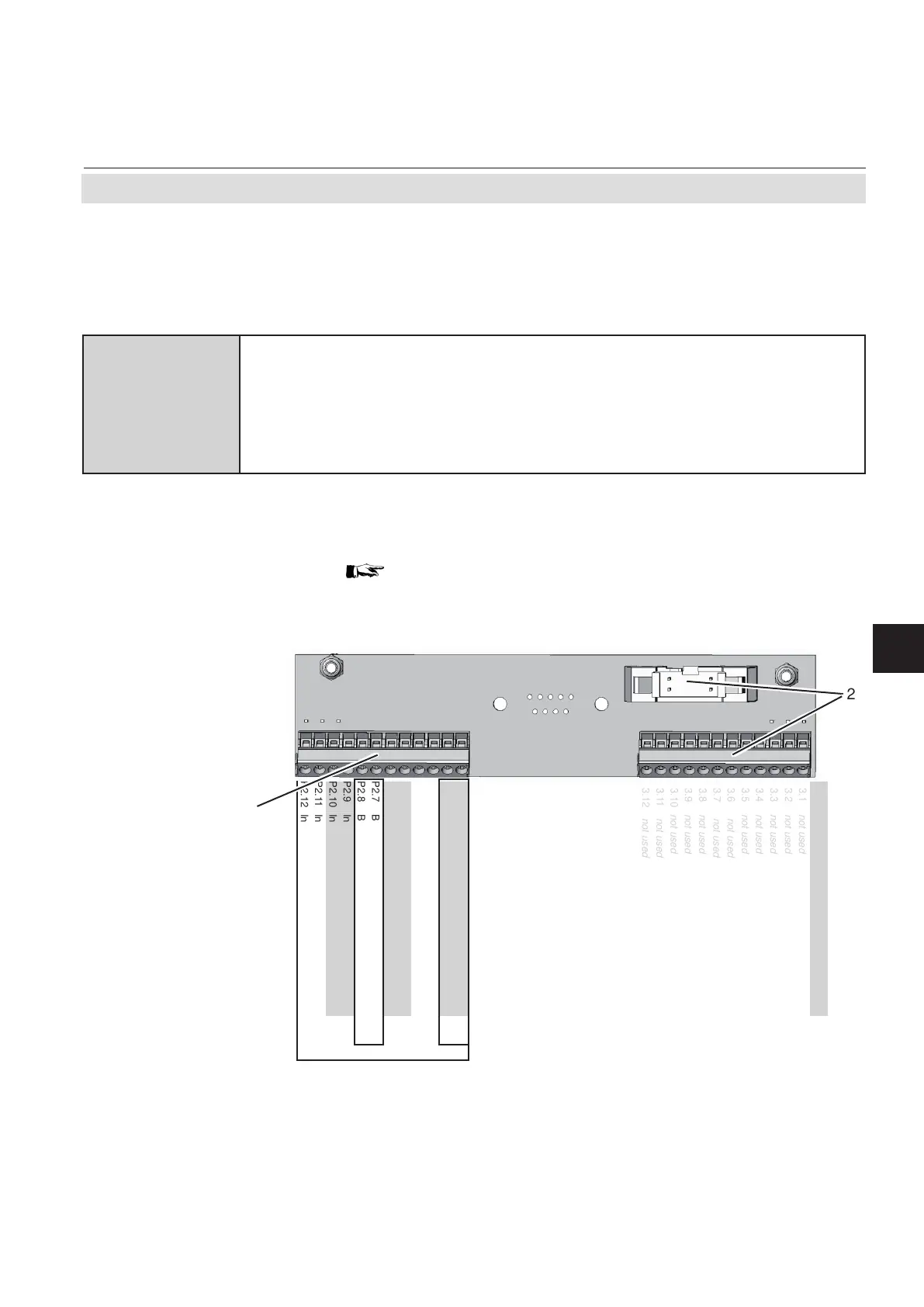

Fig. 4-22: Terminal Block X5 - Analog Input Signals
Note!
Consider the installation notes in section
4.7 and the notes on installing cable glands
on page 4-22.
1 Screw-type terminals
2 Reserved for future use
1
2
Analog inputs (option)
Terminals for analog input signals are located on the terminals board XSTI (terminal block X5;
Fig. 4-22).
2 analog inputs
0–1 V, 0–10 V (software selectable) R
in
= 100 kΩ
optional (requires to t wire bridges, see gure):
0–20 mA ; R
in
= 50Ω
optically isolated from analyzer GND
protected against overload up to ±15 V or ±20 mA
