Emerson Process Management GmbH & Co. OHG 1-17
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
1.5 X-STREAM XEGK

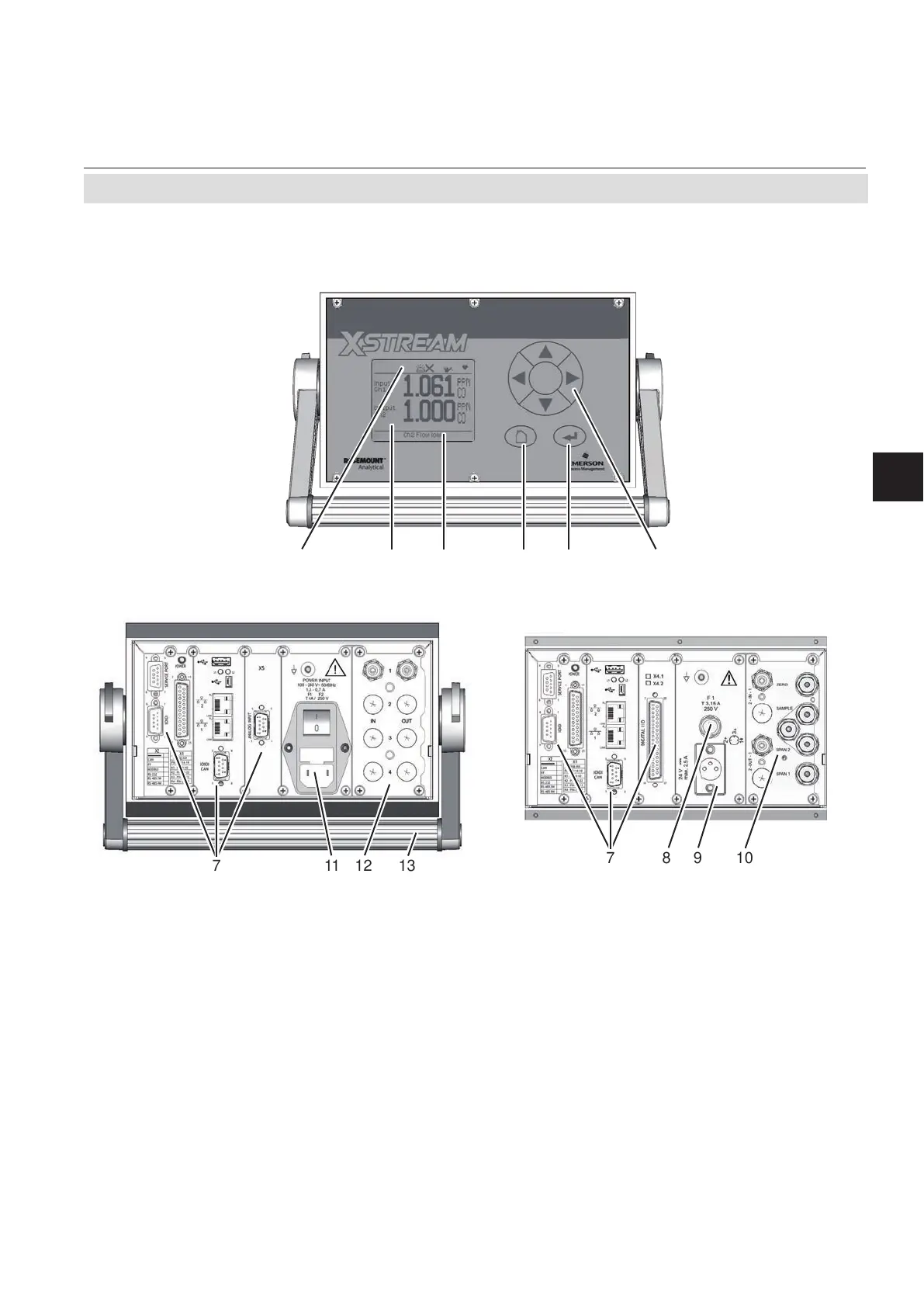

Fig. 1-8: X-STREAM XEGK - Views
7 8 9 10
1 Status line
2 Graphic display
3 Messages line
4 home key
5 enter key
6 4 keys for adjustment and menu selection
7 Signal connectors (some optional)
1 3 4 5 62
11 12 137
Note!
Figures show optional components!
8 DC power input fuse
9 DC power input
10 Gas ttings and valve block
11 AC power input with switch and fuses
12 Standard gas in- and outlets
13 Carrying handle
