Main components of the Roxar Mechanical Retrieval Tool
The mechanical retrievable tool consists of the following parts:

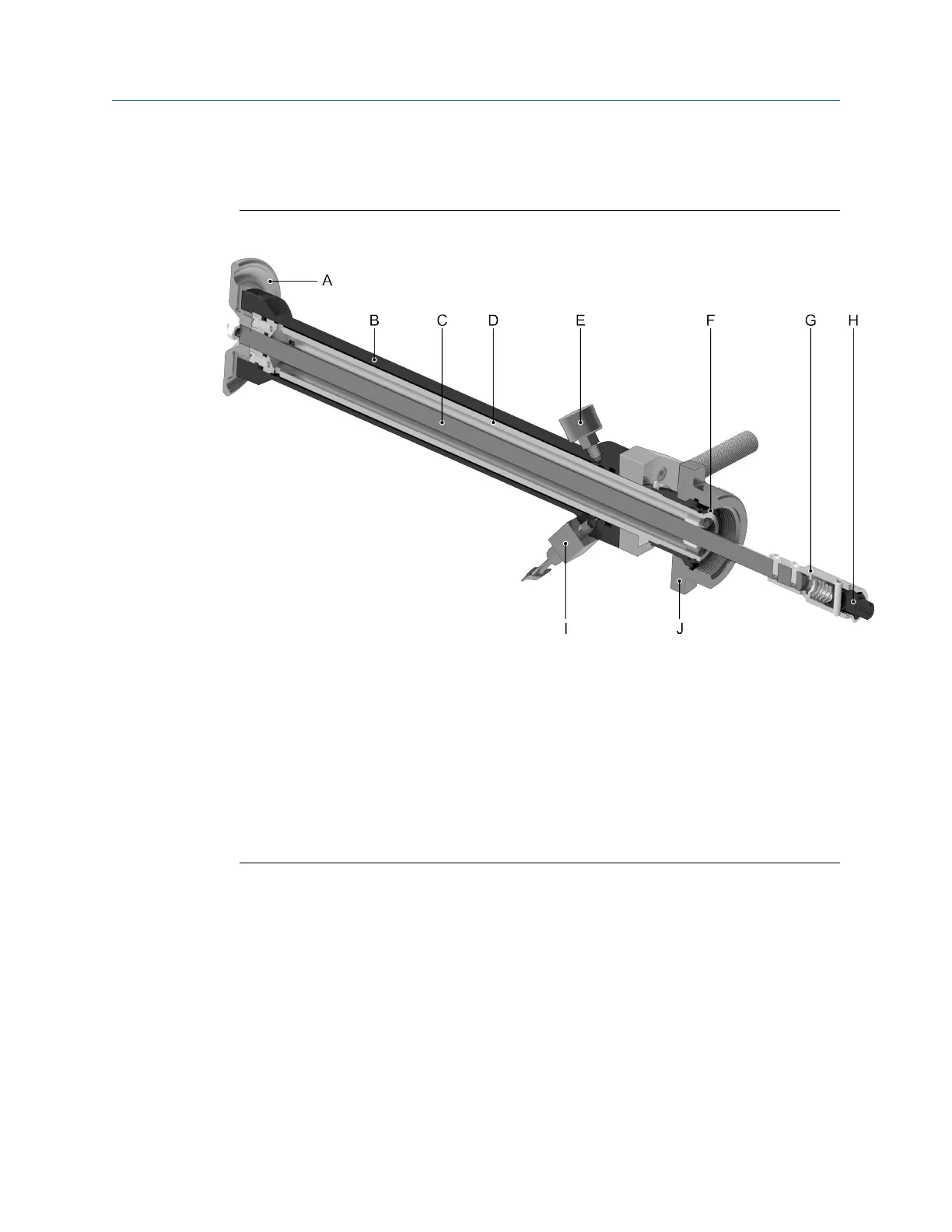

Figure 2-4: Mechanical retrievable tool components
A. Crane hook
B. Outer barrel
C. Inner rod or connecting rod
D. Inner barrel
E. Pressure gauge
F. Union thread adapter
G. Plug body
H. Plug pilot
I. Bleed valve
J. Hammer nut
Specifications and dimensions
The Roxar Mechanical Retrieval Tool can operate on pressurized lines and vessels up to
6,000 psi (420 bar) and fluid temperatures up to 400 °F (204 °C).
The main dimensions and weights are displayed in Figure 2-5 and both Table 2-1 and Table
2-2.
