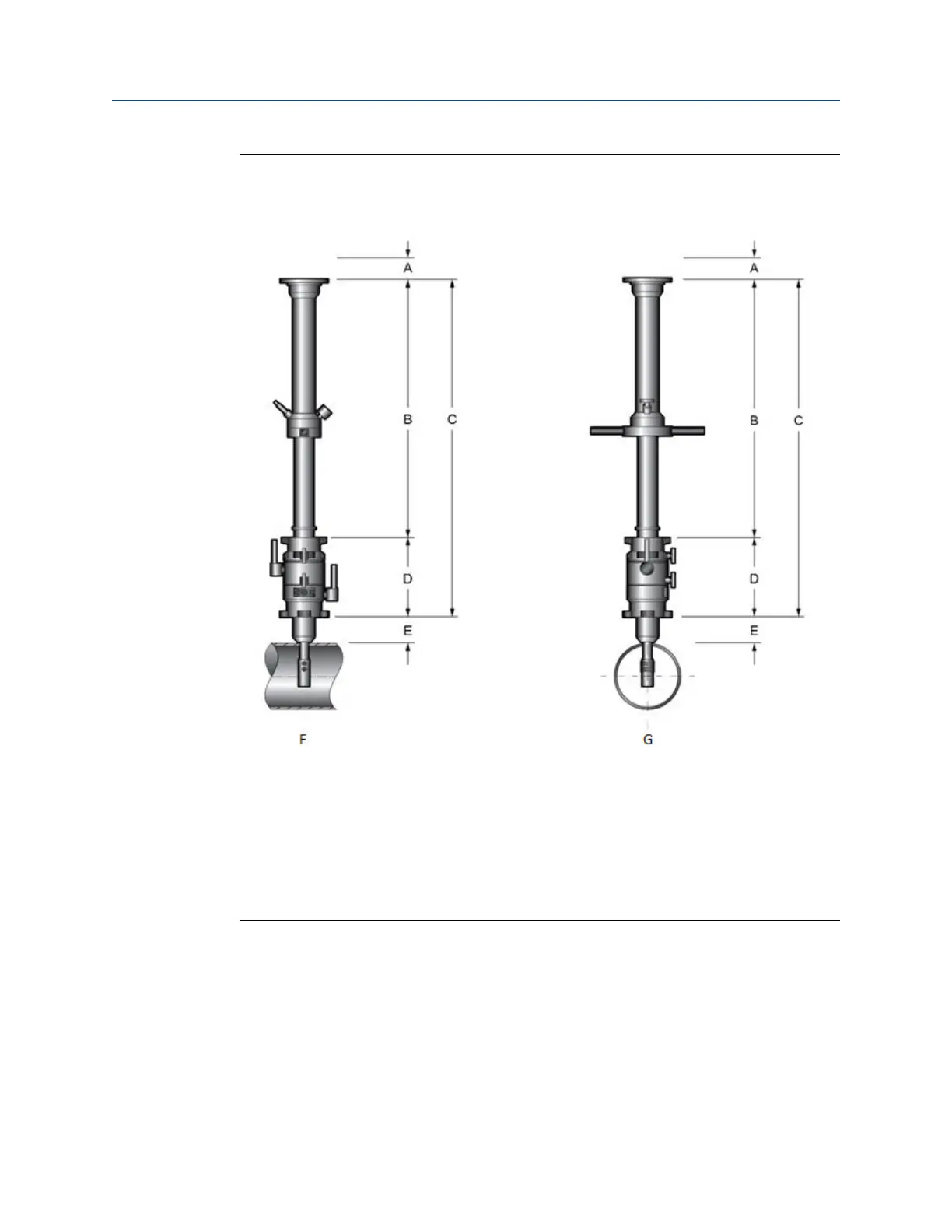

Figure 2-5: Mechanical retrievable tool components
A. Clearance for mounting - 300 mm
B. Mechanical Retrieval Tool
C. Mechanical Retrieval Tool length, including the service valve
D. Service valve length - 230 mm
E. Mechanical access fitting
F. Front view
G. Side view
