The ERTune™ Program: Basic Features
To zoom the display of both the vertical and horizontal axes
1. Drag a rectangular marquee within the active area of the
Plot Screen.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
The marquee selection must begin and end within the
active area of the Plot Screen.
2. The Plot Screen zooms to display the marqueed area.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
You may repeat this process to progressively increase the
zoom level.

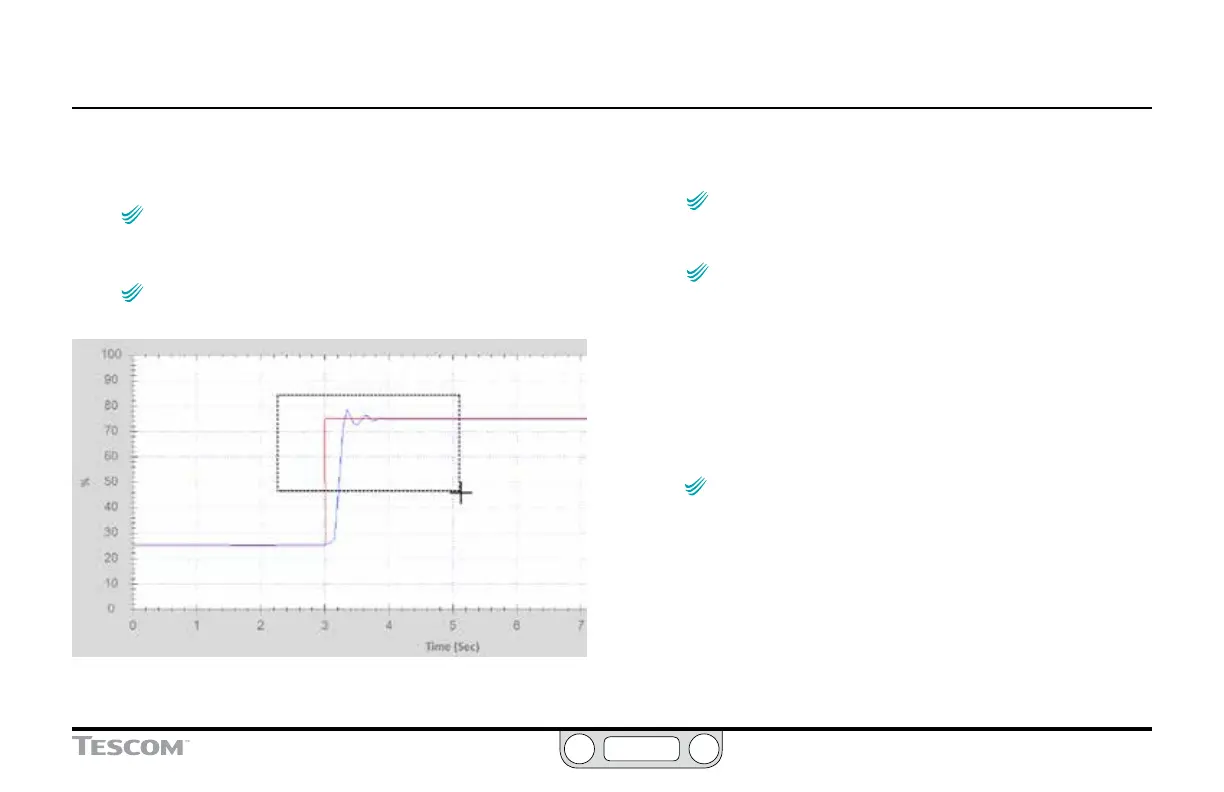

Figure 49: Marquee select in the Plot Screen
To return both axes to the default display settings
1. Double-click anywhere within the Plot Screen.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
If you have zoomed multiple times using a marquee, each
double-click will zoom out one level. Continue to double-click until
you reach the default settings.
NOTENOTE
CAUTIONCAUTION
WARNINGWARNING
You can also zoom both axes in and out using the scroll
wheel on a three-button mouse.
IMPORTANT
!
IMPORTANT
!
The Plot Screen should be stopped before
resizing using a marquee selection.
