ER5000 —
175
The ERTune™ Program: Basic Features
To view an acquired data file
1. Click the Plot File button. A Windows Explorer window opens.
2. Navigate to the .dat le you wish to view and double-click it
or click the OPEN button.
3. The data le opens in the Plot Screen window.
The le opens as a single, static image of the complete data
set. You can use the mouse techniques described in Resizing
the Range Displayed by the Plot Screen Using the Mouse to
view different sections of the data at close range.

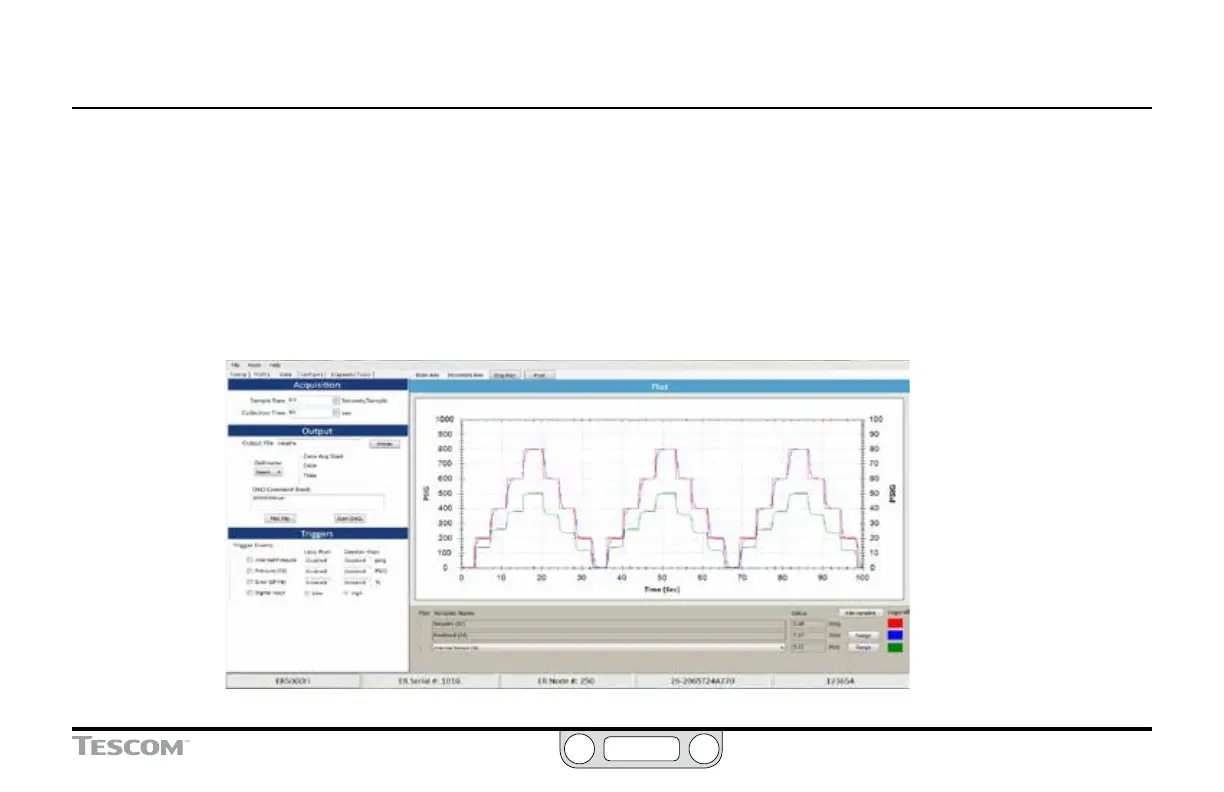

Figure 62: An Acquired Data File Opened in the Plot Screen
