Emerson Unidrive M101 Quick Start Guide

Unidrive M100-101 Quick Start Guide 13
Issue Number: 6

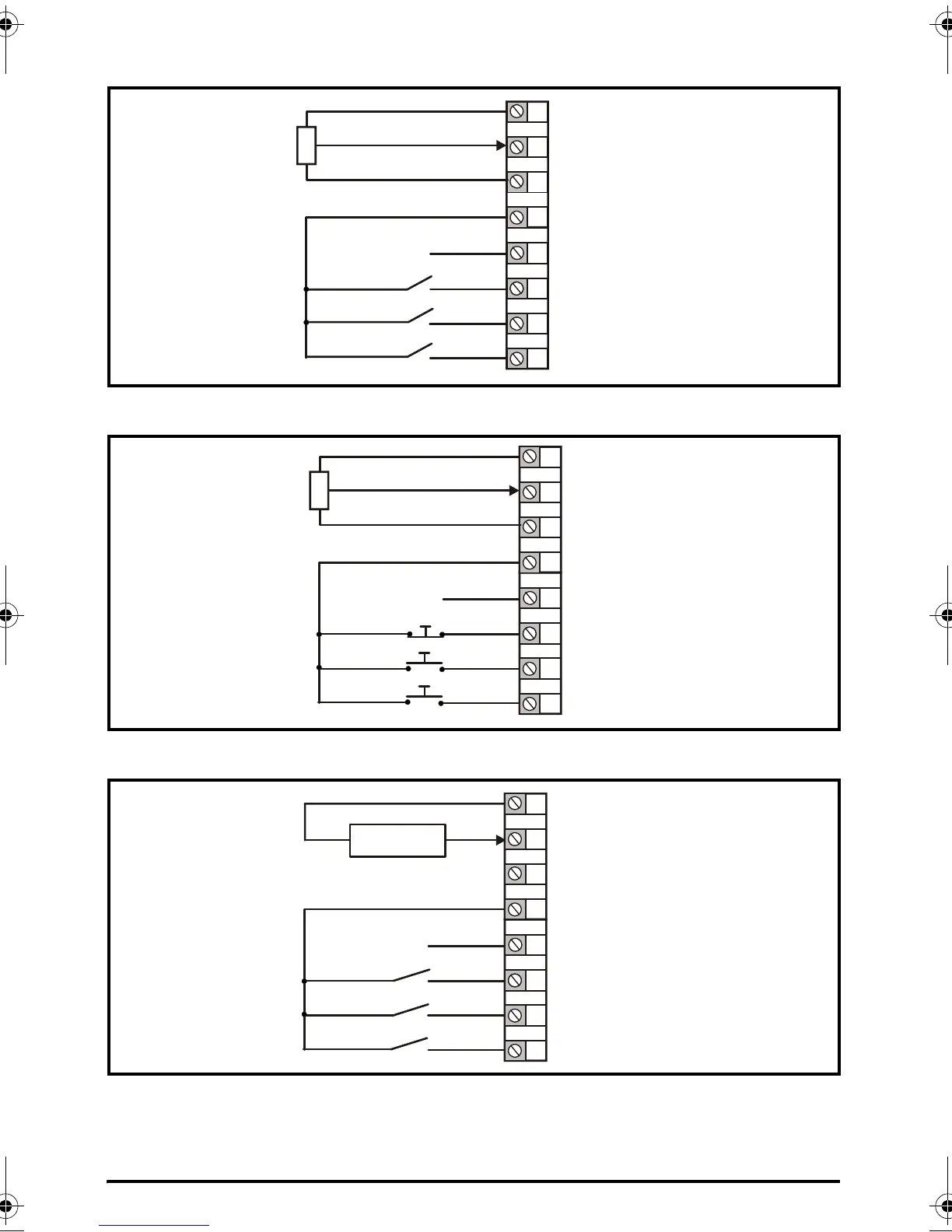

Figure 4-1 Pr 00.005 = AV (50 Hz)
Figure 4-2 Pr 00.005 = AV (60 Hz)
Figure 4-3 Pr 00.005 = AI (50 Hz)
1
2
4
9
0 V
Voltage speed
reference input (AI 1)
Digital output
(zero frequency)
10
11
12
13
Drive enable
Run forward
Run reverse
+ 10 V output
+ 24 V output
10k
1
2
4
9
0 V
Voltage speed
reference input (AI 1)
Digital output
(zero frequency)
10
11
12
13
Not stop
Run
Jog forward
+ 10 V output
+ 24 V output
10k
1
2
4
9
0 V
Current speed
reference input (AI 1)
Digital output
(zero frequency)
10
11
12
13
Drive enable
Run forward
Run reverse
+ 10 V output
+ 24 V output
Current speed
reference input
Unidrive M100 101 Quick Start Guide English Iss6.book Page 13 Wednesday, September 9, 2015 4:07 PM
