18 Unidrive M100-101 Quick Start Guide
Issue Number: 6
4.5.2 Removing the internal EMC filter

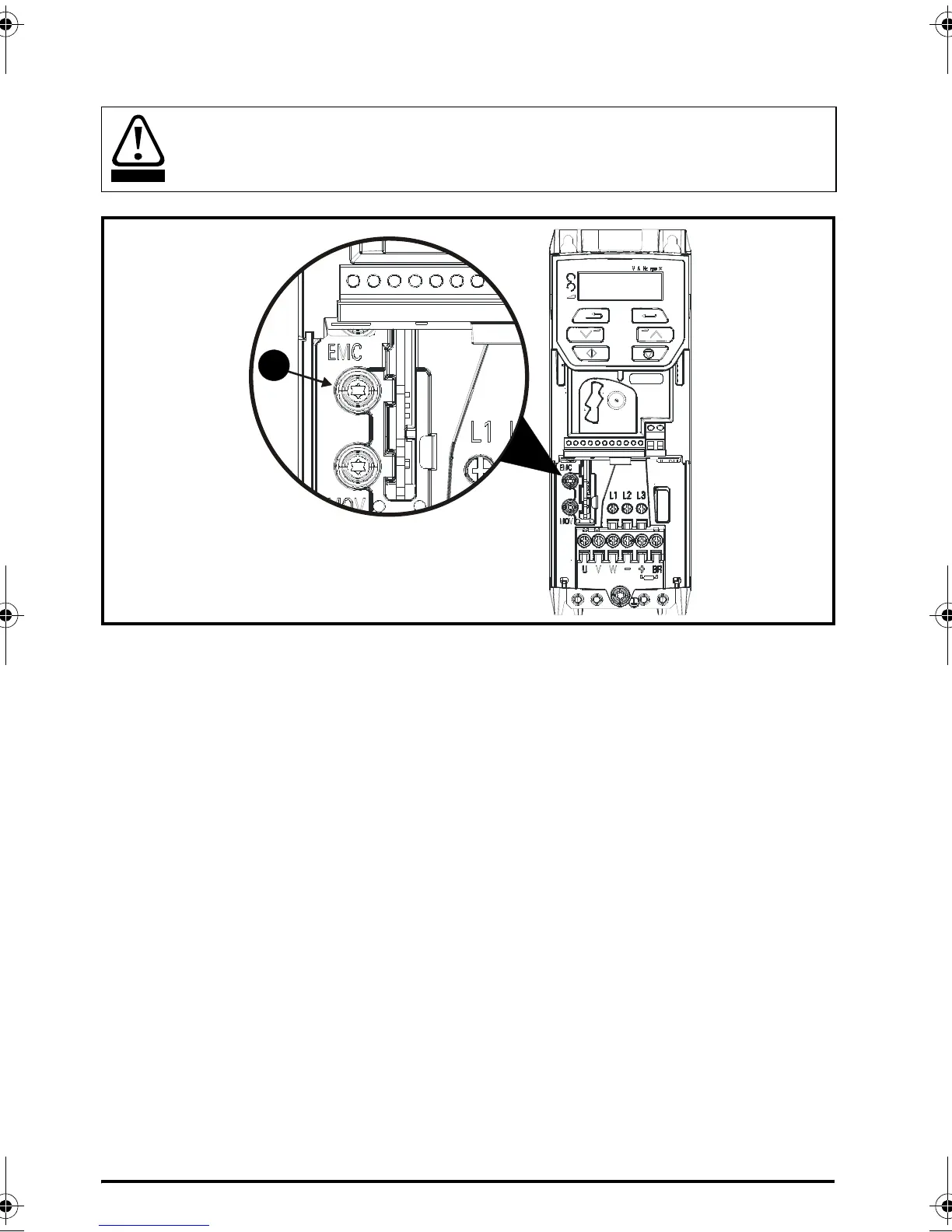

Figure 4-15 Removal of the internal EMC filter (size 2 shown)
To electrically disconnect the internal EMC filter, remove the screw as shown above (1).
4.5.3 Further EMC precautions
Further EMC precautions are required if more stringent EMC emission requirements apply:
• Operation in the first environment of EN 61800-3: 2004
• Conformity to the generic emission standards
• Equipment which is sensitive to electrical interference operating nearby
In this case it is necessary to use:
• The optional external EMC filter
• A shielded motor cable, with shield clamped to the grounded metal panel
• A shielded control cable, with shield clamped to the grounded metal panel
Full instructions are given in the Drive User Guide.
A full range of external EMC filters are also available for use with Unidrive M100 / 101, shown in the
Drive User Guide.
The supply must be disconnected before removing the internal EMC filter.
