8 NV Media Card Operation

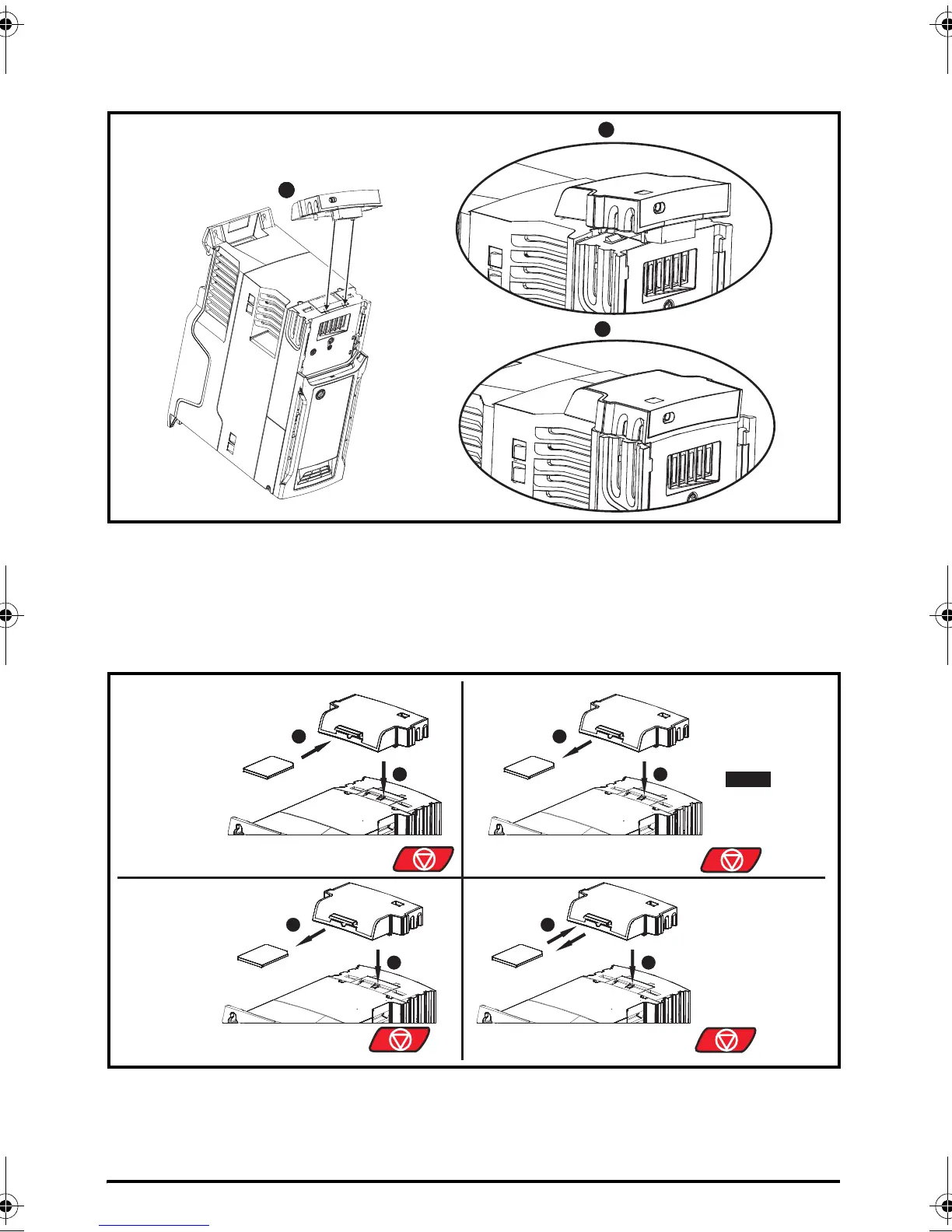

Figure 8-1 Installing the AI-Backup adaptor (SD Card)
1. Identify the two plastic fingers on the underside of the AI-Backup adaptor (1) - then insert the two
fingers into the corresponding slots in the spring-loaded sliding cover on the top of the drive.
2. Hold the adaptor firmly and push the spring loaded protective cover towards the back of the drive
to expose the connector block (2) below.
Press the adaptor downwards (3) until the adaptor connector locates into the drive connection below.
Figure 8-2 Basic NV Media Card operation
The whole card may be protected from writing or erasing by setting the read-only flag, refer to the
Drive User Guide for further information. The card should not be removed during data transfer, as the
drive will produce a trip. If this occurs then either the transfer should be reattempted or in the case of
a card to drive transfer, default parameters should be loaded.
1
2
111
3
Pr = rEAd +00.030
Drive reads all
parameters from
the NV Media Card
Pr = Prog +00.030
Programs all drive
parameters to the
NV Media Card
NOTE
Overwrites any
data already in
data block 1
Pr = Auto +00.030
Drive automatically
writes to the
when a parameter
save is performed
Media Card
Pr = boot +00.030
Drive boots from the
NV Media Card on
power up and
automatically writes
to the
when a parameter
save is performed
Media Card
1
2
1
2
1
2
1
2
1
2
