Select the discovered drive.
1. Select the ‘Online’ icon to connect with the drive. When a successful connection is made the icon will
be highlighted orange.
2. Select ‘Set mode and region’.
If the required control mode is highlighted in the ‘Drive Settings’ dialog, then:
• Change the supply frequency, if required and select ‘Apply’, otherwise select ‘Cancel’.
• Select ‘Default parameters‘ from the Dashboard and in the ‘Default Parameters’ dialogue, select ‘Apply’
If the required control mode is not highlighted in the ‘Drive Settings’ dialog then:
• Select the required mode and supply frequency.
• Select ‘Apply’.

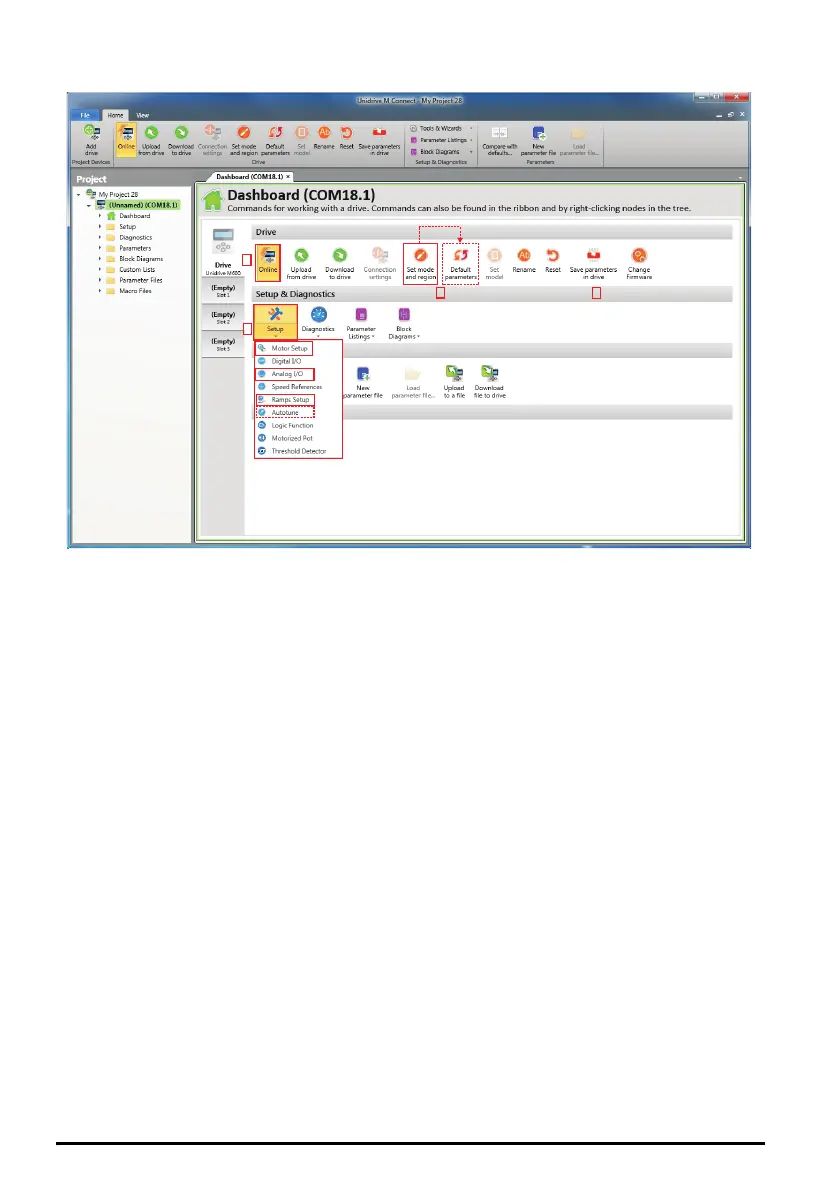

3. Select ‘Setup’ and perform the steps highlighted (dotted lines indicate a step which may not need to be
performed (see below):
