EMKO ESM Series User Manual

ENGLISH
5- In programming section, when Tune operation is selected , if
warning which is shown on the left blinks in operation screen for 10
seconds, it means that start conditions is not okay for Tune operation.
3- If value that is read from the analog input is higher than process set high
limit parameter value , value on the top display starts to blink like on
the picture.
2- If value that is read from the analog input is lower than process set
low limit parameter , value on the top display starts to blink like on
the picture.
13
1- Sensor failure in analog inputs. Sensor connection is wrong or there is
no sensor connection.
4- If programming section entering password is different from “0” and user
accesses to the parameter by ASET/OK button without entering the
password and wants to change a parameter, the warning message is
shown on the bottom display as shown on the left. Device does not allow
to do any changes without entering the password correctly.

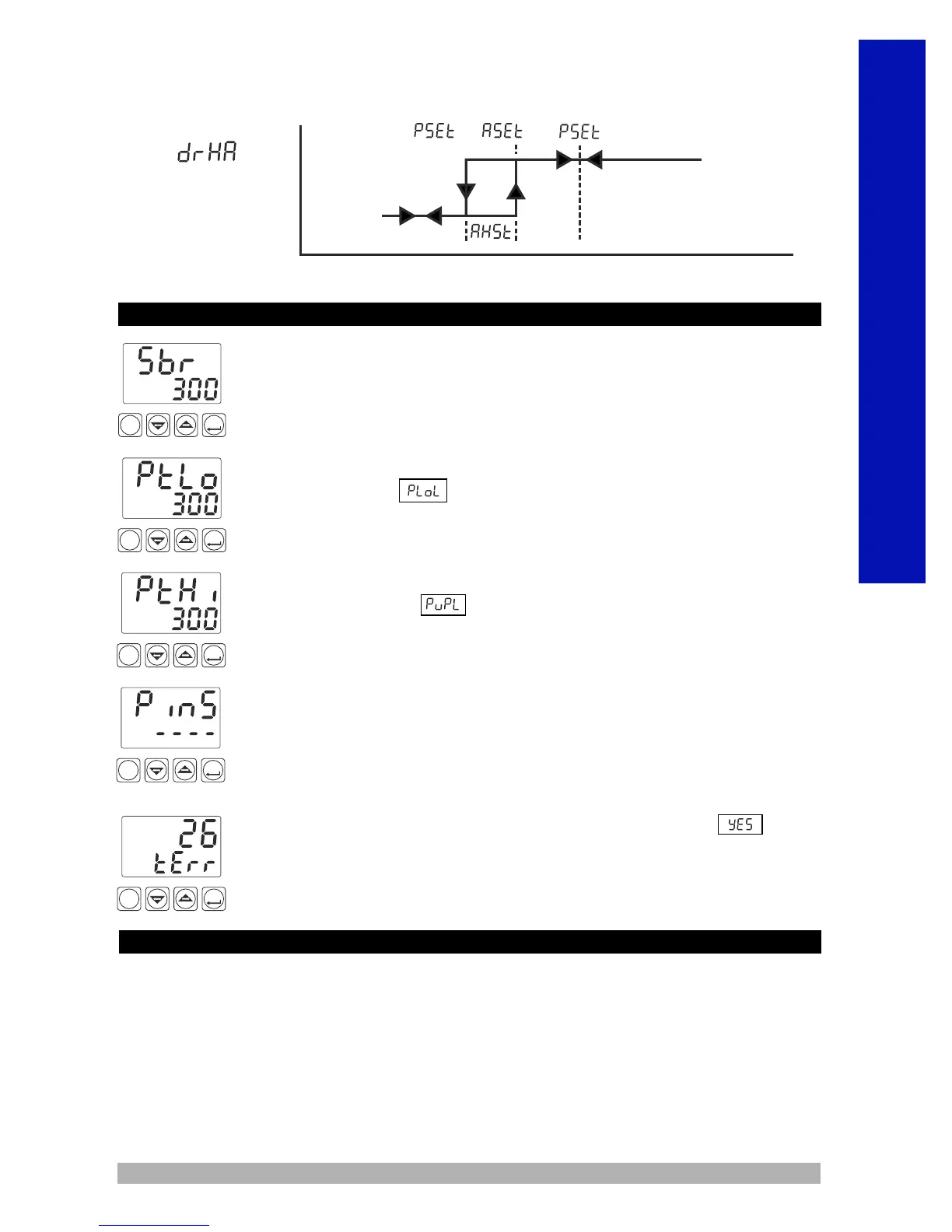

Error Messages
°C
°F
PO
AO
PS
AS
ASET
P
PSET
°C
°F
PO
AO
PS
AS
ASET
P
PSET
°C
°F
PO
AO
PS
AS
ASET
P
PSET
°C
°F
PO
AO
PS
AS
ASET
P
PSET
ASET
P
PSET
°C
°F
PO
AO
PS
AS
ON
OFF
Alarm
Output
Process Value
( - )
Deviation Range
High Alarm
c
Before beginning installation of this product, please
read the instruction manual and warnings below carefully.
Installation
In package ,
-One piece unit
-Two pieces mounting clamp
-One piece instruction manual

EMKO ESM Series Specifications

General

Control Type	PID, On/Off
Input Type	Thermocouple, RTD
Output Type	Relay, SSR, Analog
Display	LED
Power Supply	100-240V AC
Resolution	0.1°C
Communication	RS485
Dimensions	48x48mm, 96x96mm
